Datos del anuncio
Número de referencia
#A-399
Designación de la máquina

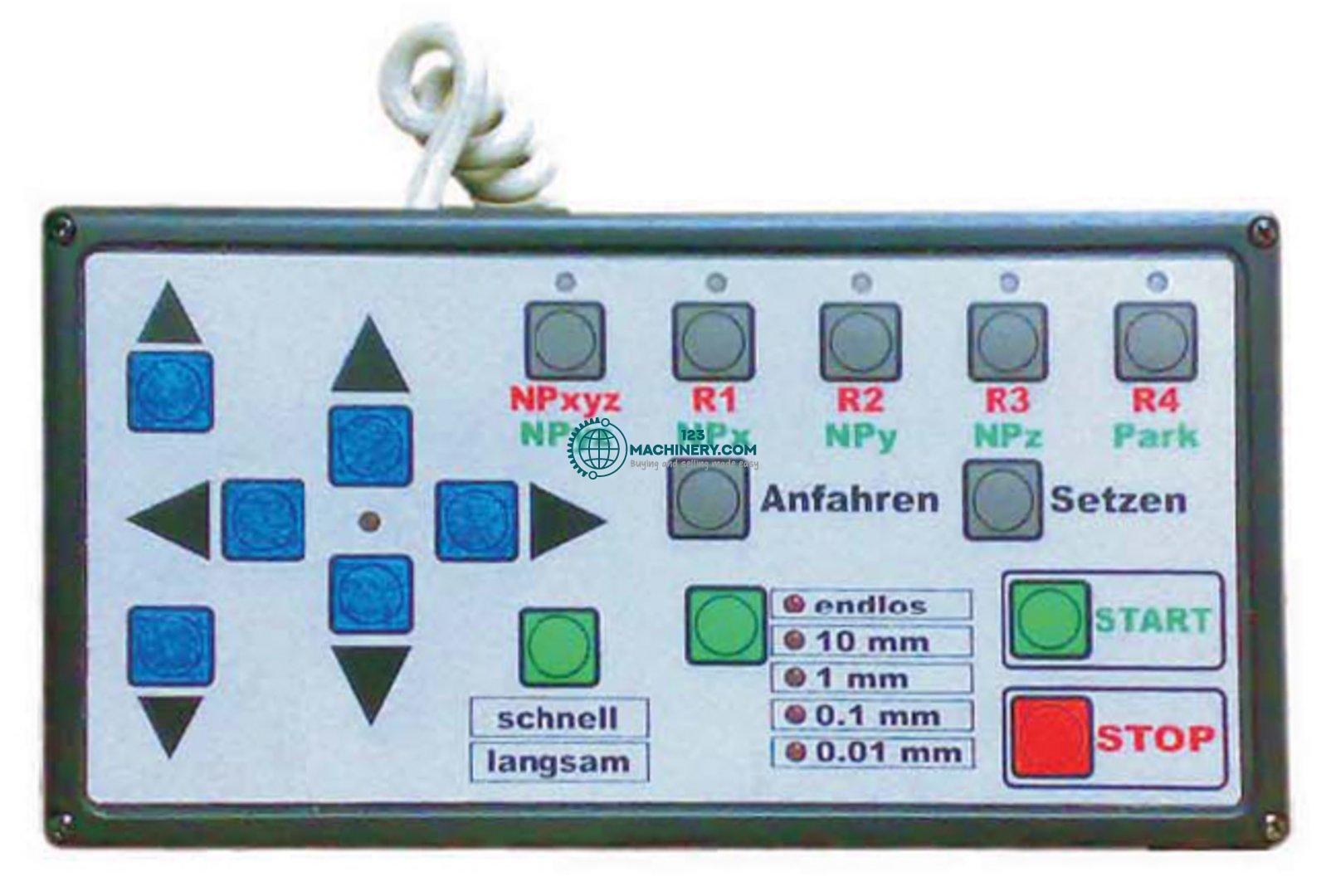

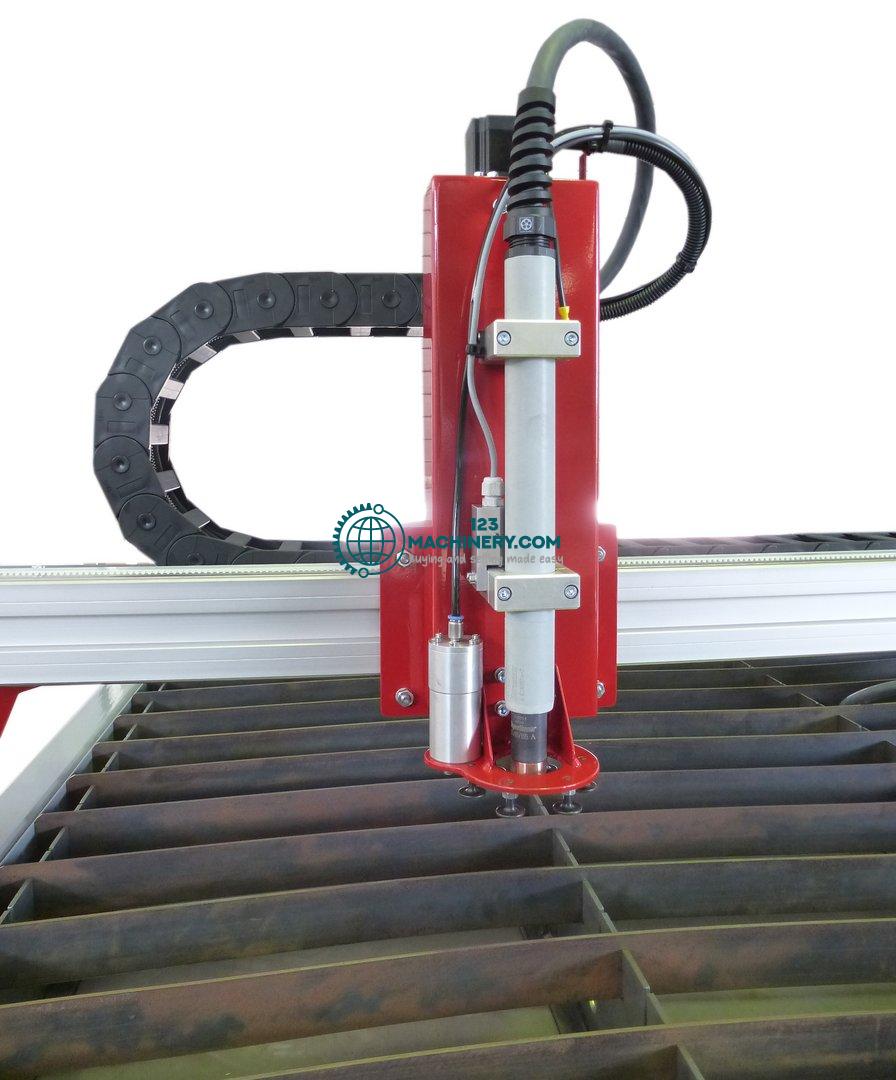

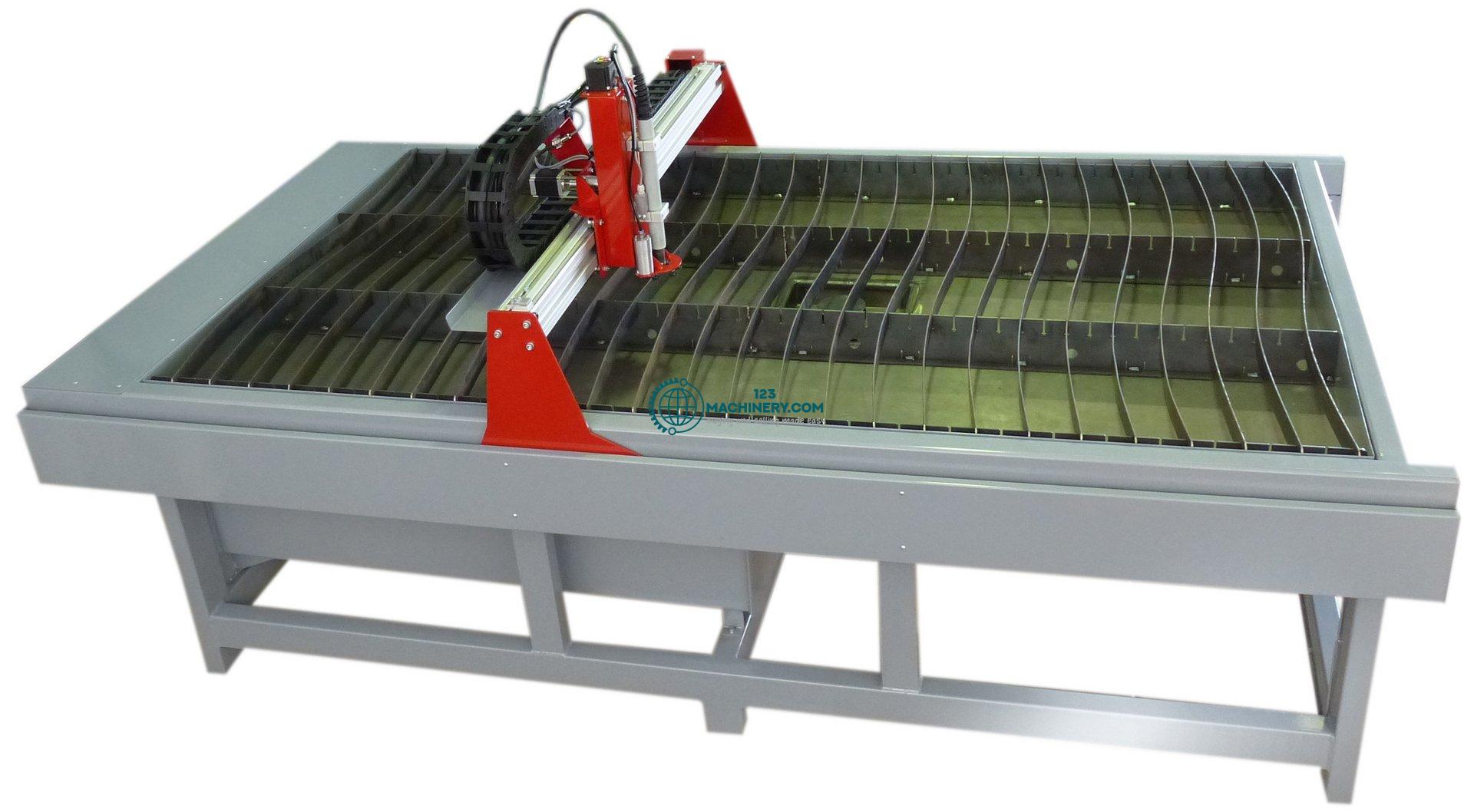

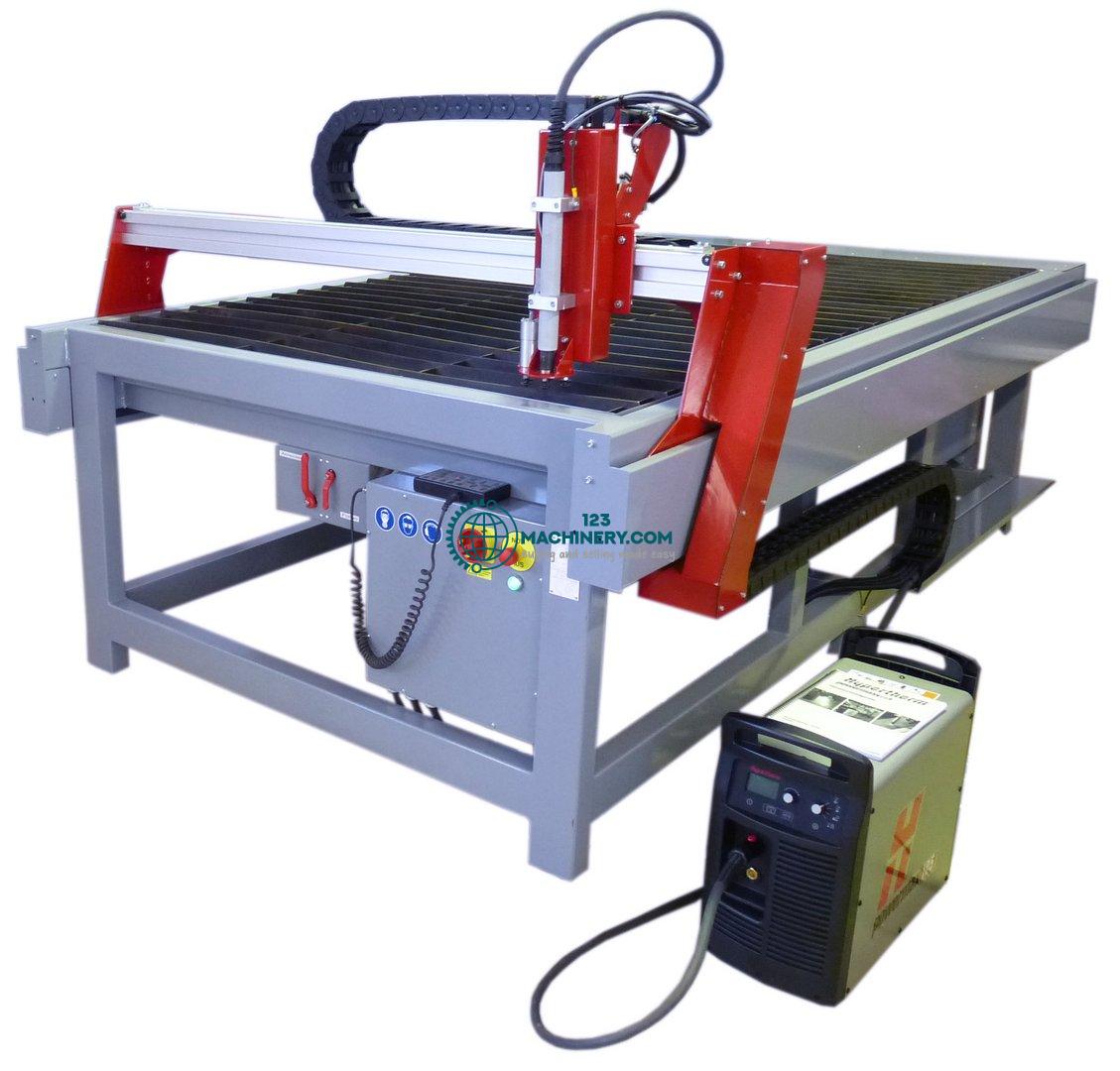

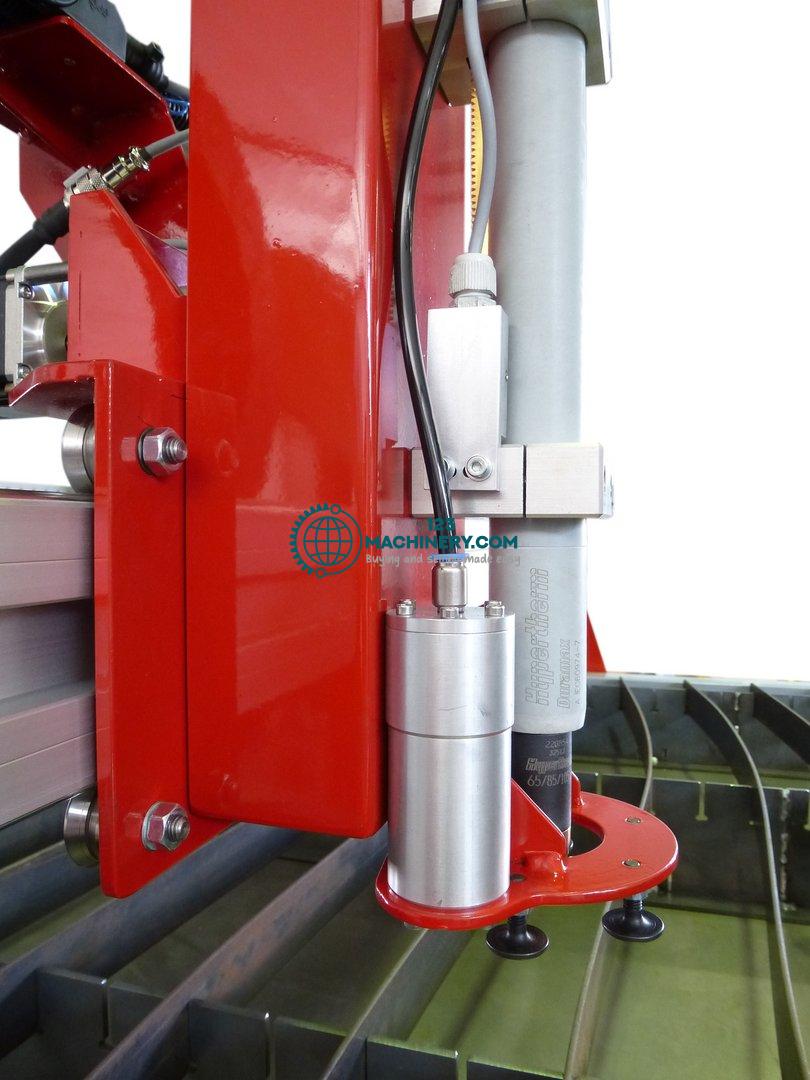

CNC plasma cutting machine PlasmaCut 2512
Fabricante
PlasmaCut
Tipo
2512
Estado
Nueva
Ubicación del anuncio
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Descripción
Working area: 1250x2500 mm
Plasma source: HYPERTHERM Powermax 45
Max. thickness - mild steel: 6 mm
Max. piercing thickness - mild steel: 12 mm
Max. tickness for separating cut: 25 mm
Recommended thickness (unalloyed steel):: 4 mm
Current: 45 A
Current / power-on time: 45 A 50 % ED, 32 A 100 % ED A
Rapid speed: 24 m/min
Repeat accuracy: 1/10 mm
Volume water tray:: 470 lt
Max. weight on table: 500 kg/m²
Length: 3060 mm
Width: 1760 mm
Height: 1500 mm
Weight: 500 kg
El anuncio ha sido traducido automáticamente y pueden haber ocurrido algunos errores de traducción
Plasma source: HYPERTHERM Powermax 45
Max. thickness - mild steel: 6 mm
Max. piercing thickness - mild steel: 12 mm
Max. tickness for separating cut: 25 mm
Recommended thickness (unalloyed steel):: 4 mm
Current: 45 A
Current / power-on time: 45 A 50 % ED, 32 A 100 % ED A
Rapid speed: 24 m/min
Repeat accuracy: 1/10 mm
Volume water tray:: 470 lt
Max. weight on table: 500 kg/m²
Length: 3060 mm
Width: 1760 mm
Height: 1500 mm
Weight: 500 kg
El anuncio ha sido traducido automáticamente y pueden haber ocurrido algunos errores de traducción
