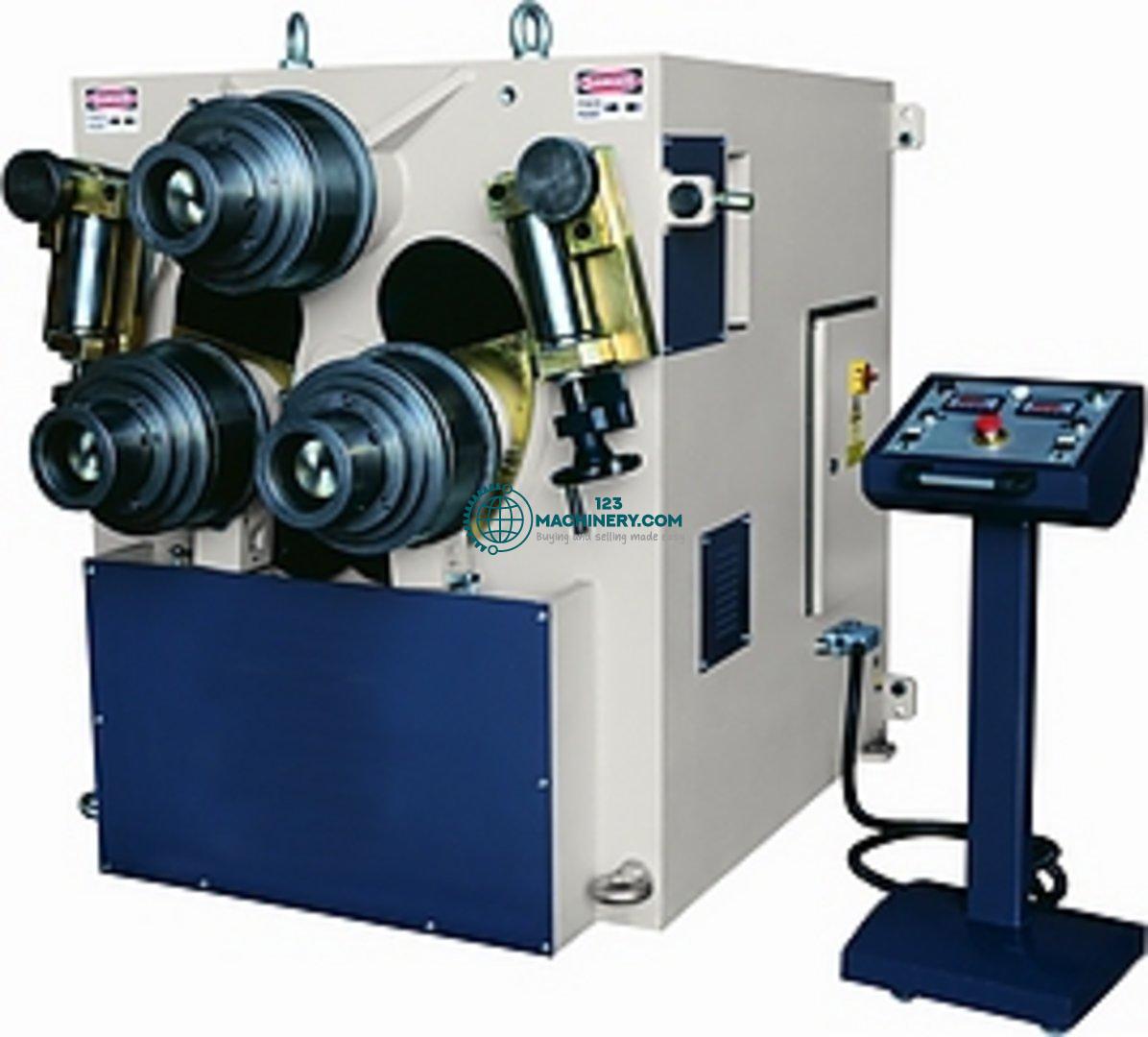

Profile bending machine with hydraulic feed of rol
HESSE by SAHINLER HPK 100
1
Données sur les annonces
Numéro de référence
#A-1035
Nom de la machine
Profile bending machine with hydraulic feed of rol
Fabricant
HESSE by SAHINLER
Type
HPK 100
Condition
nouveau
Emplacement de l`annonce
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Description
Diamètre de l'arbre : 100
Diamètre des rouleaux : 315 mm
Rouleaux entraînés : 3
Puissance moteur : 7,5 kW
Vitesse : 7 m/min
Position verticale de l'acier plat (section / diamètre min.) : 100x20 mm / 800 mm, 30x10 mm / 400 mm
Position horizontale en acier plat (section / diamètre min.) : 200x30 mm / 1.200 mm, 160x35 mm / 800 mm, 80x5 mm / 400 mm
Barre carrée (section / diamètre min.) : 60x60 mm / 750 mm, 15x15 mm / 400 mm
Barre ronde (section / diamètre min.) : Ø 75 mm / 800 mm, Ø 15 mm / 450 mm
Tube (section / diamètre min.): Ø 125x2,5 mm / 1.400 mm, Ø 15x1 mm / 450 mm, Ø 4"x6,02 / 1.000 mm, Ø 1/2"x2,77 / 450 mm
Position verticale du tube de forme (Querschnitt / min. Durchmesser): 100x40x4 mm / 1.300 mm, 25x15x2 mm / 450 mm
Forme tube carré (section / diamètre min.) : 80x80x5 mm / 1.500 mm, 25x25x2 mm / 450 mm
Pied d'angle extérieur (Querschnitt / min. Durchmesser): 100x100x12 mm / 1.000 mm, 40x40x4 mm / 700 mm
Pied d'angle intérieur (section / diamètre min.) : 100x100x10 mm / 1.000 mm, 40x40x4 mm / 550 mm
Pied UPN extérieur (section / diamètre min.) : UPN 180 / 900 mm, UPN 30 / 400 mm
UPN pied intérieur (section / diamètre min.) : UPN 180 / 1.000 mm, UPN 30 / 400 mm
Position horizontale IPN (section / diamètre min.): IPN 180 / 1.000 mm, IPN 80 / 400 mm
Longueur : 1465 mm
Largeur : 2000 mm
Hauteur : 1700 mm
Poids : 4000 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Diamètre des rouleaux : 315 mm
Rouleaux entraînés : 3
Puissance moteur : 7,5 kW
Vitesse : 7 m/min
Position verticale de l'acier plat (section / diamètre min.) : 100x20 mm / 800 mm, 30x10 mm / 400 mm
Position horizontale en acier plat (section / diamètre min.) : 200x30 mm / 1.200 mm, 160x35 mm / 800 mm, 80x5 mm / 400 mm
Barre carrée (section / diamètre min.) : 60x60 mm / 750 mm, 15x15 mm / 400 mm
Barre ronde (section / diamètre min.) : Ø 75 mm / 800 mm, Ø 15 mm / 450 mm
Tube (section / diamètre min.): Ø 125x2,5 mm / 1.400 mm, Ø 15x1 mm / 450 mm, Ø 4"x6,02 / 1.000 mm, Ø 1/2"x2,77 / 450 mm
Position verticale du tube de forme (Querschnitt / min. Durchmesser): 100x40x4 mm / 1.300 mm, 25x15x2 mm / 450 mm
Forme tube carré (section / diamètre min.) : 80x80x5 mm / 1.500 mm, 25x25x2 mm / 450 mm
Pied d'angle extérieur (Querschnitt / min. Durchmesser): 100x100x12 mm / 1.000 mm, 40x40x4 mm / 700 mm
Pied d'angle intérieur (section / diamètre min.) : 100x100x10 mm / 1.000 mm, 40x40x4 mm / 550 mm
Pied UPN extérieur (section / diamètre min.) : UPN 180 / 900 mm, UPN 30 / 400 mm
UPN pied intérieur (section / diamètre min.) : UPN 180 / 1.000 mm, UPN 30 / 400 mm
Position horizontale IPN (section / diamètre min.): IPN 180 / 1.000 mm, IPN 80 / 400 mm
Longueur : 1465 mm
Largeur : 2000 mm
Hauteur : 1700 mm
Poids : 4000 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Ces publicités pourraient également vous intéresser
5
Machines à travailler la tôlePlieuses
Shaft diameter: 50Rolls diameter: 155 mmDriven rolls: 2Motor power: 1.5 kWSpeed: 4 m/minFlat steel vertical position (section / min. diameter): 60x10 mm / 500 mm, 40x10 mm / 400 mmFlat steel horizontal position (section / min. diameter): 100x15 mm / 450 mm, 60 x 10 mm / 350 mmSquare bar (section / min. diameter): 35x35 mm / 900 mm, 20x20 mm / 300 mmRound bar (section / min. diameter): Ø 35 mm / 600 mm, Ø 30 mm / 400 mmTube (section / min. diameter): Ø 70x2 mm / 1.000 mm, Ø 30x2 mm / 500 mm, 2"x2,9 mm / 1.000 mm, 1"x2,3 mm / 350 mmForm tube vertical position (Querschnitt / min. Durchmesser): 70x30x2 mm / 1.200 mm, 50x40x3 mm / 1.200 mmForm tube square (section / min. diameter): 50x50x3 mm / 1.700 mm, 40x40x3 mm / 600 mmAngle leg outside (Querschnitt / min. Durchmesser): 50x50x5 mm / 800 mm, 40x40x5 mm / 600 mmAngle leg inside (section / min. diameter): 50x50x6 mm / 1.000 mm, 30x30x3 mm / 500 mmLength: 1050 mmWidth: 750 mmHeight: 1450 mmWeight: 390 kg
Shaft diameter: 50
Rolls diameter: 155 mm
Driven rolls: 2
Motor power: 1.5 kW
Speed: 4 m/min
Flat steel vertical position (section / min. diameter): 60x10 mm / 500 mm, 40x10 mm / 400 mm
Flat steel horizontal position (section / min. diameter): 100x15 mm / 450 mm, 60 x 10 mm / 350 mm
Square bar (section / min. diameter): 35x35 mm / 900 mm, 20x20 mm / 300 mm
Round bar (section / min. diameter): Ø 35 mm / 600 mm, Ø 30 mm / 400 mm
Tube (section / min. diameter): Ø 70x2 mm / 1.000 mm, Ø 30x2 mm / 500 mm, 2"x2,9 mm / 1.000 mm, 1"x2,3 mm / 350 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 70x30x2 mm / 1.200 mm, 50x40x3 mm / 1.200 mm
Form tube square (section / min. diameter): 50x50x3 mm / 1.700 mm, 40x40x3 mm / 600 mm
Angle leg outside (Querschnitt / min. Durchmesser): 50x50x5 mm / 800 mm, 40x40x5 mm / 600 mm
Angle leg inside (section / min. diameter): 50x50x6 mm / 1.000 mm, 30x30x3 mm / 500 mm
Length: 1050 mm
Width: 750 mm
Height: 1450 mm
Weight: 390 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Rolls diameter: 155 mm
Driven rolls: 2
Motor power: 1.5 kW
Speed: 4 m/min
Flat steel vertical position (section / min. diameter): 60x10 mm / 500 mm, 40x10 mm / 400 mm
Flat steel horizontal position (section / min. diameter): 100x15 mm / 450 mm, 60 x 10 mm / 350 mm
Square bar (section / min. diameter): 35x35 mm / 900 mm, 20x20 mm / 300 mm
Round bar (section / min. diameter): Ø 35 mm / 600 mm, Ø 30 mm / 400 mm
Tube (section / min. diameter): Ø 70x2 mm / 1.000 mm, Ø 30x2 mm / 500 mm, 2"x2,9 mm / 1.000 mm, 1"x2,3 mm / 350 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 70x30x2 mm / 1.200 mm, 50x40x3 mm / 1.200 mm
Form tube square (section / min. diameter): 50x50x3 mm / 1.700 mm, 40x40x3 mm / 600 mm
Angle leg outside (Querschnitt / min. Durchmesser): 50x50x5 mm / 800 mm, 40x40x5 mm / 600 mm
Angle leg inside (section / min. diameter): 50x50x6 mm / 1.000 mm, 30x30x3 mm / 500 mm
Length: 1050 mm
Width: 750 mm
Height: 1450 mm
Weight: 390 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
3
Machines à travailler la tôlePlieuses
pressing capacity: 80 toStroke: 285 mmMax. bending capacity - mild steel: 300x25 mmTable: 750x1425 mmHeight of pins: 300 mmPin diameter: 105 mmWorking speed: 10 mm/minReturn speed: 10 mm/minMotor: 10 kWWorking height: 930 mmLength: 1430 mmWidth: 750 mmHeight: 1450 mmWeight: 1700 kg
pressing capacity: 80 to
Stroke: 285 mm
Max. bending capacity - mild steel: 300x25 mm
Table: 750x1425 mm
Height of pins: 300 mm
Pin diameter: 105 mm
Working speed: 10 mm/min
Return speed: 10 mm/min
Motor: 10 kW
Working height: 930 mm
Length: 1430 mm
Width: 750 mm
Height: 1450 mm
Weight: 1700 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Stroke: 285 mm
Max. bending capacity - mild steel: 300x25 mm
Table: 750x1425 mm
Height of pins: 300 mm
Pin diameter: 105 mm
Working speed: 10 mm/min
Return speed: 10 mm/min
Motor: 10 kW
Working height: 930 mm
Length: 1430 mm
Width: 750 mm
Height: 1450 mm
Weight: 1700 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
3
Machines à travailler la tôlePlieuses
pressing capacity: 40 toStroke: 285 mmMax. bending capacity - mild steel: 200x24 mmTable: 660x1250 mmHeight of pins: 250 mmPin diameter: 80 mmWorking speed: 10 mm/minReturn speed: 10 mm/minMotor: 4 kWWorking height: 930 mmLength: 1250 mmWidth: 650 mmHeight: 1250 mmWeight: 1100 kg
pressing capacity: 40 to
Stroke: 285 mm
Max. bending capacity - mild steel: 200x24 mm
Table: 660x1250 mm
Height of pins: 250 mm
Pin diameter: 80 mm
Working speed: 10 mm/min
Return speed: 10 mm/min
Motor: 4 kW
Working height: 930 mm
Length: 1250 mm
Width: 650 mm
Height: 1250 mm
Weight: 1100 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Stroke: 285 mm
Max. bending capacity - mild steel: 200x24 mm
Table: 660x1250 mm
Height of pins: 250 mm
Pin diameter: 80 mm
Working speed: 10 mm/min
Return speed: 10 mm/min
Motor: 4 kW
Working height: 930 mm
Length: 1250 mm
Width: 650 mm
Height: 1250 mm
Weight: 1100 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
3
Machines à travailler la tôlePlieuses
pressing capacity: 10 toStroke: 185 mmMax. bending capacity - mild steel: 150x8 mmTable: 450x900 mmHeight of pins: 150 mmPin diameter: 60 mmWorking speed: 10 mm/minReturn speed: 10 mm/minMotor: 1.1 kWWorking height: 915 mmLength: 900 mmWidth: 450 mmHeight: 1130 mmWeight: 250 kg
pressing capacity: 10 to
Stroke: 185 mm
Max. bending capacity - mild steel: 150x8 mm
Table: 450x900 mm
Height of pins: 150 mm
Pin diameter: 60 mm
Working speed: 10 mm/min
Return speed: 10 mm/min
Motor: 1.1 kW
Working height: 915 mm
Length: 900 mm
Width: 450 mm
Height: 1130 mm
Weight: 250 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Stroke: 185 mm
Max. bending capacity - mild steel: 150x8 mm
Table: 450x900 mm
Height of pins: 150 mm
Pin diameter: 60 mm
Working speed: 10 mm/min
Return speed: 10 mm/min
Motor: 1.1 kW
Working height: 915 mm
Length: 900 mm
Width: 450 mm
Height: 1130 mm
Weight: 250 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
3
Machines à travailler la tôlePlieuses
Presskraft: 20 toHub: 185 mmMax. Biegekapazität - Baustahl: 200 x 12 mmTisch: 480 x 1060 mmAufnahmebolzenhöhe: 200 mmBolzendurchmesser: 80 mmArbeitsgeschwindigkeit: 10 mm/minRückzugsgeschwindigkeit: 10 mm/minMotor: 2.2 kWArbeitshöhe: 930 mmLänge: 1150 mmBreite: 480 mmHöhe: 1200 mmGewicht: 530 kg
Presskraft: 20 to
Hub: 185 mm
Max. Biegekapazität - Baustahl: 200 x 12 mm
Tisch: 480 x 1060 mm
Aufnahmebolzenhöhe: 200 mm
Bolzendurchmesser: 80 mm
Arbeitsgeschwindigkeit: 10 mm/min
Rückzugsgeschwindigkeit: 10 mm/min
Motor: 2.2 kW
Arbeitshöhe: 930 mm
Länge: 1150 mm
Breite: 480 mm
Höhe: 1200 mm
Gewicht: 530 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Hub: 185 mm
Max. Biegekapazität - Baustahl: 200 x 12 mm
Tisch: 480 x 1060 mm
Aufnahmebolzenhöhe: 200 mm
Bolzendurchmesser: 80 mm
Arbeitsgeschwindigkeit: 10 mm/min
Rückzugsgeschwindigkeit: 10 mm/min
Motor: 2.2 kW
Arbeitshöhe: 930 mm
Länge: 1150 mm
Breite: 480 mm
Höhe: 1200 mm
Gewicht: 530 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
1
Machines à travailler la tôlePlieuses
Shaft diameter: 85Rolls diameter: 247 mmDriven rolls: 3Motor power: 7.5 kWFlat steel vertical position (section / min. diameter): 80x20 mm / 500 mm, 30x10 mm / 350 mmFlat steel horizontal position (section / min. diameter): 120x30 mm / 650 mm, 50x10 mm / 300 mmSquare bar (section / min. diameter): 50x50 mm / 500 mm, 30x30 mm / 350 mmRound bar (section / min. diameter): Ø 50 mm / 500 mm, Ø 20 mm / 350 mmTube (section / min. diameter): Ø 100x2,5 mm / 1.300 mm, Ø 20x1 / 300 mmForm tube vertical position (Querschnitt / min. Durchmesser): 80x40x4 mmForm tube square (section / min. diameter): 70x70x4 mmAngle leg outside (Querschnitt / min. Durchmesser): 80x8 mm / 1.200 mm, 30x3 mm / 450 mmAngle leg inside (section / min. diameter): 80x8 mm / 800 mm, 30x3 mm / 450 mmLength: 1580 mmWidth: 1200 mmHeight: 1410 mmWeight: 2350 kg
Shaft diameter: 85
Rolls diameter: 247 mm
Driven rolls: 3
Motor power: 7.5 kW
Flat steel vertical position (section / min. diameter): 80x20 mm / 500 mm, 30x10 mm / 350 mm
Flat steel horizontal position (section / min. diameter): 120x30 mm / 650 mm, 50x10 mm / 300 mm
Square bar (section / min. diameter): 50x50 mm / 500 mm, 30x30 mm / 350 mm
Round bar (section / min. diameter): Ø 50 mm / 500 mm, Ø 20 mm / 350 mm
Tube (section / min. diameter): Ø 100x2,5 mm / 1.300 mm, Ø 20x1 / 300 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x40x4 mm
Form tube square (section / min. diameter): 70x70x4 mm
Angle leg outside (Querschnitt / min. Durchmesser): 80x8 mm / 1.200 mm, 30x3 mm / 450 mm
Angle leg inside (section / min. diameter): 80x8 mm / 800 mm, 30x3 mm / 450 mm
Length: 1580 mm
Width: 1200 mm
Height: 1410 mm
Weight: 2350 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Rolls diameter: 247 mm
Driven rolls: 3
Motor power: 7.5 kW
Flat steel vertical position (section / min. diameter): 80x20 mm / 500 mm, 30x10 mm / 350 mm
Flat steel horizontal position (section / min. diameter): 120x30 mm / 650 mm, 50x10 mm / 300 mm
Square bar (section / min. diameter): 50x50 mm / 500 mm, 30x30 mm / 350 mm
Round bar (section / min. diameter): Ø 50 mm / 500 mm, Ø 20 mm / 350 mm
Tube (section / min. diameter): Ø 100x2,5 mm / 1.300 mm, Ø 20x1 / 300 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x40x4 mm
Form tube square (section / min. diameter): 70x70x4 mm
Angle leg outside (Querschnitt / min. Durchmesser): 80x8 mm / 1.200 mm, 30x3 mm / 450 mm
Angle leg inside (section / min. diameter): 80x8 mm / 800 mm, 30x3 mm / 450 mm
Length: 1580 mm
Width: 1200 mm
Height: 1410 mm
Weight: 2350 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
1
Machines à travailler la tôlePlieuses
Shaft diameter: 120Rolls diameter: 390 mmDriven rolls: 3Motor power: 15 kWSpeed: 2/7,5 m/minFlat steel vertical position (section / min. diameter): 125x25 mm / 1.200 mm, 30x10 mm / 500 mmFlat steel horizontal position (section / min. diameter): 200x50 mm / 1.000 mm, 100x10 mm / 500 mmSquare bar (section / min. diameter): 65x65 mm / 750 mm, 20x20 mm / 500 mmRound bar (section / min. diameter): Ø 80 mm / 850 mm, Ø 20 mm / 500 mmTube (section / min. diameter): Ø 160x4 mm / 2.800 mm, Ø 140x3 mm / 1.500 mm, Ø 50x2 mm / 500 mm, Ø 5"x6,35 / 1.500 mm, Ø 3/4"x2,87 / 500 mmForm tube vertical position (Querschnitt / min. Durchmesser): 120x40x4 mm / 1.800 mm, 30x20x3 mm / 500 mmForm tube square (section / min. diameter): 90x90x5 mm / 1.800 mm, 30x30x3 mm / 500 mmAngle leg outside (Querschnitt / min. Durchmesser): 120x120x12 mm / 1.200 mm, 40x40x4 mm / 600 mmAngle leg inside (section / min. diameter): 100x100x10 mm / 1.200 mm, 40x40x4 mm / 600 mmUPN leg outside (section / min. diameter): UPN 220 / 1.000 mm, UPN 180 / 800 mm, UPN 40 / 500 mmUPN leg inside (section / min. diameter): UPN 220 / 1.200 mm, UPN 180 / 900 mm, UPN 40 / 600 mmIPN horizontal position (section / min. diameter): IPN 220 / 1.000 mm, IPN 80 / 500 mmLength: 2000 mmWidth: 1650 mmHeight: 1900 mmWeight: 4770 kg
Shaft diameter: 120
Rolls diameter: 390 mm
Driven rolls: 3
Motor power: 15 kW
Speed: 2/7,5 m/min
Flat steel vertical position (section / min. diameter): 125x25 mm / 1.200 mm, 30x10 mm / 500 mm
Flat steel horizontal position (section / min. diameter): 200x50 mm / 1.000 mm, 100x10 mm / 500 mm
Square bar (section / min. diameter): 65x65 mm / 750 mm, 20x20 mm / 500 mm
Round bar (section / min. diameter): Ø 80 mm / 850 mm, Ø 20 mm / 500 mm
Tube (section / min. diameter): Ø 160x4 mm / 2.800 mm, Ø 140x3 mm / 1.500 mm, Ø 50x2 mm / 500 mm, Ø 5"x6,35 / 1.500 mm, Ø 3/4"x2,87 / 500 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 120x40x4 mm / 1.800 mm, 30x20x3 mm / 500 mm
Form tube square (section / min. diameter): 90x90x5 mm / 1.800 mm, 30x30x3 mm / 500 mm
Angle leg outside (Querschnitt / min. Durchmesser): 120x120x12 mm / 1.200 mm, 40x40x4 mm / 600 mm
Angle leg inside (section / min. diameter): 100x100x10 mm / 1.200 mm, 40x40x4 mm / 600 mm
UPN leg outside (section / min. diameter): UPN 220 / 1.000 mm, UPN 180 / 800 mm, UPN 40 / 500 mm
UPN leg inside (section / min. diameter): UPN 220 / 1.200 mm, UPN 180 / 900 mm, UPN 40 / 600 mm
IPN horizontal position (section / min. diameter): IPN 220 / 1.000 mm, IPN 80 / 500 mm
Length: 2000 mm
Width: 1650 mm
Height: 1900 mm
Weight: 4770 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Rolls diameter: 390 mm
Driven rolls: 3
Motor power: 15 kW
Speed: 2/7,5 m/min
Flat steel vertical position (section / min. diameter): 125x25 mm / 1.200 mm, 30x10 mm / 500 mm
Flat steel horizontal position (section / min. diameter): 200x50 mm / 1.000 mm, 100x10 mm / 500 mm
Square bar (section / min. diameter): 65x65 mm / 750 mm, 20x20 mm / 500 mm
Round bar (section / min. diameter): Ø 80 mm / 850 mm, Ø 20 mm / 500 mm
Tube (section / min. diameter): Ø 160x4 mm / 2.800 mm, Ø 140x3 mm / 1.500 mm, Ø 50x2 mm / 500 mm, Ø 5"x6,35 / 1.500 mm, Ø 3/4"x2,87 / 500 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 120x40x4 mm / 1.800 mm, 30x20x3 mm / 500 mm
Form tube square (section / min. diameter): 90x90x5 mm / 1.800 mm, 30x30x3 mm / 500 mm
Angle leg outside (Querschnitt / min. Durchmesser): 120x120x12 mm / 1.200 mm, 40x40x4 mm / 600 mm
Angle leg inside (section / min. diameter): 100x100x10 mm / 1.200 mm, 40x40x4 mm / 600 mm
UPN leg outside (section / min. diameter): UPN 220 / 1.000 mm, UPN 180 / 800 mm, UPN 40 / 500 mm
UPN leg inside (section / min. diameter): UPN 220 / 1.200 mm, UPN 180 / 900 mm, UPN 40 / 600 mm
IPN horizontal position (section / min. diameter): IPN 220 / 1.000 mm, IPN 80 / 500 mm
Length: 2000 mm
Width: 1650 mm
Height: 1900 mm
Weight: 4770 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
1
Machines à travailler la tôlePlieuses
Shaft diameter: 35Upper roll diameter: 137 mmLower roll diameter: 137 mmDriven rolls: 3Motor power: 1.1 kWSpeed: 7 m/minFlat steel vertical position (section / min. diameter): 35x8 mm / 300 mmFlat steel horizontal position (section / min. diameter): 50x12 mm / 400 mmSquare bar (section / min. diameter): 18x18 mm / 250 mmRound bar (section / min. diameter): Ø 22 mm / 200 mmTube (section / min. diameter): Ø 40x1,5 mm / 500 mmForm tube vertical position (Querschnitt / min. Durchmesser): 30x15x2,5 mm / 500 mmForm tube square (section / min. diameter): 25x25x2 mm / 450 mmAngle leg outside (Querschnitt / min. Durchmesser): 35x35x5 mm / 400 mmAngle leg inside (section / min. diameter): 30x30x4 mm / 550 mmLength: 1050 mmWidth: 500 mmHeight: 1250 mmWeight: 350 kg
Shaft diameter: 35
Upper roll diameter: 137 mm
Lower roll diameter: 137 mm
Driven rolls: 3
Motor power: 1.1 kW
Speed: 7 m/min
Flat steel vertical position (section / min. diameter): 35x8 mm / 300 mm
Flat steel horizontal position (section / min. diameter): 50x12 mm / 400 mm
Square bar (section / min. diameter): 18x18 mm / 250 mm
Round bar (section / min. diameter): Ø 22 mm / 200 mm
Tube (section / min. diameter): Ø 40x1,5 mm / 500 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 30x15x2,5 mm / 500 mm
Form tube square (section / min. diameter): 25x25x2 mm / 450 mm
Angle leg outside (Querschnitt / min. Durchmesser): 35x35x5 mm / 400 mm
Angle leg inside (section / min. diameter): 30x30x4 mm / 550 mm
Length: 1050 mm
Width: 500 mm
Height: 1250 mm
Weight: 350 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Upper roll diameter: 137 mm
Lower roll diameter: 137 mm
Driven rolls: 3
Motor power: 1.1 kW
Speed: 7 m/min
Flat steel vertical position (section / min. diameter): 35x8 mm / 300 mm
Flat steel horizontal position (section / min. diameter): 50x12 mm / 400 mm
Square bar (section / min. diameter): 18x18 mm / 250 mm
Round bar (section / min. diameter): Ø 22 mm / 200 mm
Tube (section / min. diameter): Ø 40x1,5 mm / 500 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 30x15x2,5 mm / 500 mm
Form tube square (section / min. diameter): 25x25x2 mm / 450 mm
Angle leg outside (Querschnitt / min. Durchmesser): 35x35x5 mm / 400 mm
Angle leg inside (section / min. diameter): 30x30x4 mm / 550 mm
Length: 1050 mm
Width: 500 mm
Height: 1250 mm
Weight: 350 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
5
Machines à travailler la tôlePlieuses
Shaft diameter: 30Upper roll diameter: 148 mmLower roll diameter: 118 mmDriven rolls: 2Motor power: 0.7 / 0,85 kWSpeed: 2/4 m/minFlat steel vertical position (section / min. diameter): 50x10 mm / 1.800 mm, 20x6 mm / 300 mmFlat steel horizontal position (section / min. diameter): 80x15 mm / 700 mm, 30 x 6 mm / 400 mmSquare bar (section / min. diameter): 30x30 mm / 900 mm, 10x10 mm / 200 mmRound bar (section / min. diameter): Ø 30 mm / 900 mm, Ø 10 mm / 200 mmTube (section / min. diameter): Ø 60x1,5 mm / 1.000 mm, Ø 25x1,5 mm / 600 mm, 1 1/2"x2,9 mm / 600 mm, 1/4"x1,8 mm / 300 mmForm tube vertical position (Querschnitt / min. Durchmesser): 50x30x3 mm / 1.200 mm, 40x20x2 mm / 800 mmForm tube square (section / min. diameter): 40x40x3 mm / 1.200 mm, 30x30x2 mm / 800 mmAngle leg outside (Querschnitt / min. Durchmesser): 40x40x5 mm / 600 mm, 30x30x4 mm / 300 mmAngle leg inside (section / min. diameter): 35x35x5 mm / 600 mm, 30x30x4 mm / 400 mmLength: 600 mmWidth: 800 mmHeight: 1450 mmWeight: 220 kg
Shaft diameter: 30
Upper roll diameter: 148 mm
Lower roll diameter: 118 mm
Driven rolls: 2
Motor power: 0.7 / 0,85 kW
Speed: 2/4 m/min
Flat steel vertical position (section / min. diameter): 50x10 mm / 1.800 mm, 20x6 mm / 300 mm
Flat steel horizontal position (section / min. diameter): 80x15 mm / 700 mm, 30 x 6 mm / 400 mm
Square bar (section / min. diameter): 30x30 mm / 900 mm, 10x10 mm / 200 mm
Round bar (section / min. diameter): Ø 30 mm / 900 mm, Ø 10 mm / 200 mm
Tube (section / min. diameter): Ø 60x1,5 mm / 1.000 mm, Ø 25x1,5 mm / 600 mm, 1 1/2"x2,9 mm / 600 mm, 1/4"x1,8 mm / 300 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 50x30x3 mm / 1.200 mm, 40x20x2 mm / 800 mm
Form tube square (section / min. diameter): 40x40x3 mm / 1.200 mm, 30x30x2 mm / 800 mm
Angle leg outside (Querschnitt / min. Durchmesser): 40x40x5 mm / 600 mm, 30x30x4 mm / 300 mm
Angle leg inside (section / min. diameter): 35x35x5 mm / 600 mm, 30x30x4 mm / 400 mm
Length: 600 mm
Width: 800 mm
Height: 1450 mm
Weight: 220 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Upper roll diameter: 148 mm
Lower roll diameter: 118 mm
Driven rolls: 2
Motor power: 0.7 / 0,85 kW
Speed: 2/4 m/min
Flat steel vertical position (section / min. diameter): 50x10 mm / 1.800 mm, 20x6 mm / 300 mm
Flat steel horizontal position (section / min. diameter): 80x15 mm / 700 mm, 30 x 6 mm / 400 mm
Square bar (section / min. diameter): 30x30 mm / 900 mm, 10x10 mm / 200 mm
Round bar (section / min. diameter): Ø 30 mm / 900 mm, Ø 10 mm / 200 mm
Tube (section / min. diameter): Ø 60x1,5 mm / 1.000 mm, Ø 25x1,5 mm / 600 mm, 1 1/2"x2,9 mm / 600 mm, 1/4"x1,8 mm / 300 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 50x30x3 mm / 1.200 mm, 40x20x2 mm / 800 mm
Form tube square (section / min. diameter): 40x40x3 mm / 1.200 mm, 30x30x2 mm / 800 mm
Angle leg outside (Querschnitt / min. Durchmesser): 40x40x5 mm / 600 mm, 30x30x4 mm / 300 mm
Angle leg inside (section / min. diameter): 35x35x5 mm / 600 mm, 30x30x4 mm / 400 mm
Length: 600 mm
Width: 800 mm
Height: 1450 mm
Weight: 220 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
2
Machines à travailler la tôlePlieuses
Bending length: 350 - 2800 mmMax. sheet length: 3050 mmMax. sheet width: 1524 mmMin. bendable width: 150 mmMax. bending height: 254 mmMax. bending depth: 50 mmMax. sheet rotation area: 3300 mmBending force: 500 toPressure force: 1000 toSheet thickness (420 N/mm²): 3.2 mmSheet thickness (600 N/mm²): 2.2 mmSheet thickness (260 N/mm²): 4 mmMin. sheet thickness - mild steel: 0.5 mmMax. bending angle: 135 °
Bending length: 350 - 2800 mm
Max. sheet length: 3050 mm
Max. sheet width: 1524 mm
Min. bendable width: 150 mm
Max. bending height: 254 mm
Max. bending depth: 50 mm
Max. sheet rotation area: 3300 mm
Bending force: 500 to
Pressure force: 1000 to
Sheet thickness (420 N/mm²): 3.2 mm
Sheet thickness (600 N/mm²): 2.2 mm
Sheet thickness (260 N/mm²): 4 mm
Min. sheet thickness - mild steel: 0.5 mm
Max. bending angle: 135 °
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Max. sheet length: 3050 mm
Max. sheet width: 1524 mm
Min. bendable width: 150 mm
Max. bending height: 254 mm
Max. bending depth: 50 mm
Max. sheet rotation area: 3300 mm
Bending force: 500 to
Pressure force: 1000 to
Sheet thickness (420 N/mm²): 3.2 mm
Sheet thickness (600 N/mm²): 2.2 mm
Sheet thickness (260 N/mm²): 4 mm
Min. sheet thickness - mild steel: 0.5 mm
Max. bending angle: 135 °
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
5
Machines à travailler la tôlePlieuses
Shaft diameter: 50Upper roll diameter: 152 mmLower roll diameter: 162 mmDriven rolls: 3Motor power: 1.1 kWSpeed: 4 m/minFlat steel vertical position (section / min. diameter): 60x10 mm / 600 mm, 20x10 mm / 300 mmFlat steel horizontal position (section / min. diameter): 100x15 mm / 600 mm, 50 x 10 mm / 300 mmSquare bar (section / min. diameter): 35x35 mm / 600 mm, 15x15 mm / 300 mmRound bar (section / min. diameter): 35 mm / 600 mm, Dm. 20 mm / 300 mmTube (section / min. diameter): 70x2 mm / 1200 mm, Dm. 25x1,5 mm / 400 mm, 2"x2,9 mm / 1000 mm, 1/2"x2,3 mm / 350 mmForm tube vertical position (Querschnitt / min. Durchmesser): 70x30x3 mm / 1500 mm, 30x15x2 mm / 400 mmForm tube square (section / min. diameter): 50x50x3 mm / 1600 mm, 20x20x2 mm / 400 mmAngle leg outside (Querschnitt / min. Durchmesser): 50x50x6 mm / 600 mm, 30x30x3 mm / 400 mmAngle leg inside (section / min. diameter): 50x50x6 mm / 900 mm, 30x30x3 mm / 600 mmLength: 810 mmWidth: 950 mmHeight: 1500 mmWeight: 500 kg
Shaft diameter: 50
Upper roll diameter: 152 mm
Lower roll diameter: 162 mm
Driven rolls: 3
Motor power: 1.1 kW
Speed: 4 m/min
Flat steel vertical position (section / min. diameter): 60x10 mm / 600 mm, 20x10 mm / 300 mm
Flat steel horizontal position (section / min. diameter): 100x15 mm / 600 mm, 50 x 10 mm / 300 mm
Square bar (section / min. diameter): 35x35 mm / 600 mm, 15x15 mm / 300 mm
Round bar (section / min. diameter): 35 mm / 600 mm, Dm. 20 mm / 300 mm
Tube (section / min. diameter): 70x2 mm / 1200 mm, Dm. 25x1,5 mm / 400 mm, 2"x2,9 mm / 1000 mm, 1/2"x2,3 mm / 350 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 70x30x3 mm / 1500 mm, 30x15x2 mm / 400 mm
Form tube square (section / min. diameter): 50x50x3 mm / 1600 mm, 20x20x2 mm / 400 mm
Angle leg outside (Querschnitt / min. Durchmesser): 50x50x6 mm / 600 mm, 30x30x3 mm / 400 mm
Angle leg inside (section / min. diameter): 50x50x6 mm / 900 mm, 30x30x3 mm / 600 mm
Length: 810 mm
Width: 950 mm
Height: 1500 mm
Weight: 500 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Upper roll diameter: 152 mm
Lower roll diameter: 162 mm
Driven rolls: 3
Motor power: 1.1 kW
Speed: 4 m/min
Flat steel vertical position (section / min. diameter): 60x10 mm / 600 mm, 20x10 mm / 300 mm
Flat steel horizontal position (section / min. diameter): 100x15 mm / 600 mm, 50 x 10 mm / 300 mm
Square bar (section / min. diameter): 35x35 mm / 600 mm, 15x15 mm / 300 mm
Round bar (section / min. diameter): 35 mm / 600 mm, Dm. 20 mm / 300 mm
Tube (section / min. diameter): 70x2 mm / 1200 mm, Dm. 25x1,5 mm / 400 mm, 2"x2,9 mm / 1000 mm, 1/2"x2,3 mm / 350 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 70x30x3 mm / 1500 mm, 30x15x2 mm / 400 mm
Form tube square (section / min. diameter): 50x50x3 mm / 1600 mm, 20x20x2 mm / 400 mm
Angle leg outside (Querschnitt / min. Durchmesser): 50x50x6 mm / 600 mm, 30x30x3 mm / 400 mm
Angle leg inside (section / min. diameter): 50x50x6 mm / 900 mm, 30x30x3 mm / 600 mm
Length: 810 mm
Width: 950 mm
Height: 1500 mm
Weight: 500 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
8
Machines à travailler la tôlePlieuses
Largeur de feuille : 3000 mm
Épaisseur de la tôle : 70 mm
Diamètre du rouleau : 660 mm
Puissance totale requise : kW
Poids de la machine environ : 63 t
Encombrement env. : m
Largeur de feuille : 3000 mm
Épaisseur de la tôle : 70 mm
Diamètre du rouleau : 660 mm
Puissance totale requise : kW
Poids de la machine environ : 63 t
Encombrement env. : m
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Épaisseur de la tôle : 70 mm
Diamètre du rouleau : 660 mm
Puissance totale requise : kW
Poids de la machine environ : 63 t
Encombrement env. : m
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
6
Machines à travailler la tôlePlieuses
Shaft diameter: 60Rolls diameter: 177 mmDriven rolls: 3Motor power: 3.7 kWSpeed: 6 m/minFlat steel vertical position (section / min. diameter): 70x10 mm / 600 mm, 30x10 mm / 250 mmFlat steel horizontal position (section / min. diameter): 90x25 mm / 500 mm, 50x5 mm / 250 mmSquare bar (section / min. diameter): 40x40 mm / 500 mm, 20x20 mm / 300 mmRound bar (section / min. diameter): Ø. 40 mm / 500 mm, Ø 20 mm / 300 mmTube (section / min. diameter): Ø 60x2 mm / 600 mm, Ø 20x1 / 250 mmForm tube vertical position (Querschnitt / min. Durchmesser): 80x40x3 mmForm tube square (section / min. diameter): 60x60x4 mmAngle leg outside (Querschnitt / min. Durchmesser): 50x5 mm / 1.000 mm, 30x4 mm / 350 mmAngle leg inside (section / min. diameter): 50x5 mm / 500 mm, 30x3 mm / 250 mmLength: 1160 mmWidth: 1000 mmHeight: 1175 mmWeight: 1194 kg
Shaft diameter: 60
Rolls diameter: 177 mm
Driven rolls: 3
Motor power: 3.7 kW
Speed: 6 m/min
Flat steel vertical position (section / min. diameter): 70x10 mm / 600 mm, 30x10 mm / 250 mm
Flat steel horizontal position (section / min. diameter): 90x25 mm / 500 mm, 50x5 mm / 250 mm
Square bar (section / min. diameter): 40x40 mm / 500 mm, 20x20 mm / 300 mm
Round bar (section / min. diameter): Ø. 40 mm / 500 mm, Ø 20 mm / 300 mm
Tube (section / min. diameter): Ø 60x2 mm / 600 mm, Ø 20x1 / 250 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x40x3 mm
Form tube square (section / min. diameter): 60x60x4 mm
Angle leg outside (Querschnitt / min. Durchmesser): 50x5 mm / 1.000 mm, 30x4 mm / 350 mm
Angle leg inside (section / min. diameter): 50x5 mm / 500 mm, 30x3 mm / 250 mm
Length: 1160 mm
Width: 1000 mm
Height: 1175 mm
Weight: 1194 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Rolls diameter: 177 mm
Driven rolls: 3
Motor power: 3.7 kW
Speed: 6 m/min
Flat steel vertical position (section / min. diameter): 70x10 mm / 600 mm, 30x10 mm / 250 mm
Flat steel horizontal position (section / min. diameter): 90x25 mm / 500 mm, 50x5 mm / 250 mm
Square bar (section / min. diameter): 40x40 mm / 500 mm, 20x20 mm / 300 mm
Round bar (section / min. diameter): Ø. 40 mm / 500 mm, Ø 20 mm / 300 mm
Tube (section / min. diameter): Ø 60x2 mm / 600 mm, Ø 20x1 / 250 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x40x3 mm
Form tube square (section / min. diameter): 60x60x4 mm
Angle leg outside (Querschnitt / min. Durchmesser): 50x5 mm / 1.000 mm, 30x4 mm / 350 mm
Angle leg inside (section / min. diameter): 50x5 mm / 500 mm, 30x3 mm / 250 mm
Length: 1160 mm
Width: 1000 mm
Height: 1175 mm
Weight: 1194 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
1
Machines à travailler la tôlePlieuses

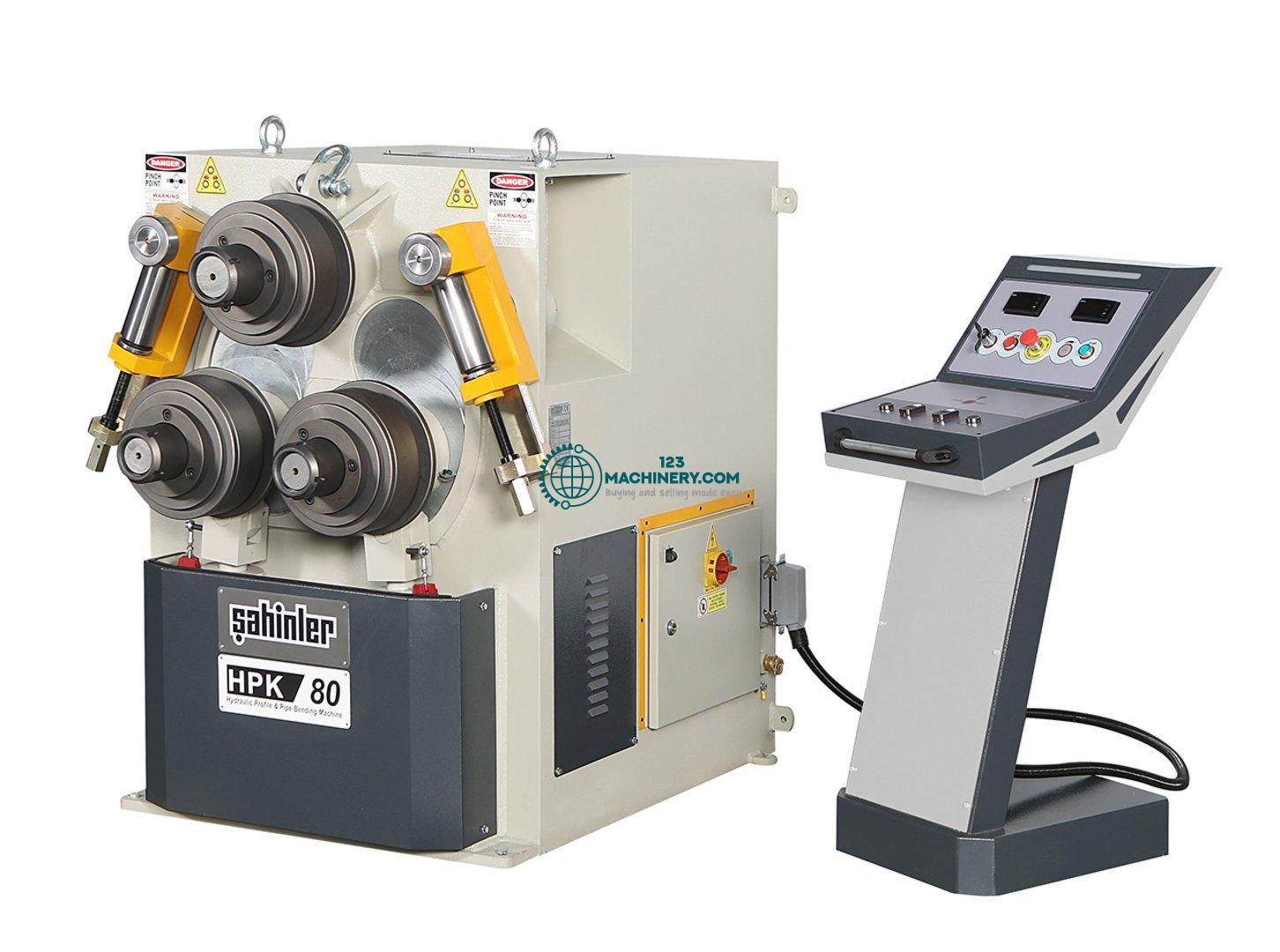

Shaft diameter: 80Rolls diameter: 260 mmDriven rolls: 3Motor power: 7.5 kWSpeed: 6 m/minFlat steel vertical position (section / min. diameter): 80x15 mm / 800 mm, 40x10 mm / 400 mmFlat steel horizontal position (section / min. diameter): 125x25 mm / 600 mm, 60x8 mm / 400 mmSquare bar (section / min. diameter): 45x45 mm / 500 mm, 15x15 mm / 350 mmRound bar (section / min. diameter): Ø 50 mm / 600 mm, Ø 15 mm / 350 mmTube (section / min. diameter): Ø 100x2,5 mm / 1.200 mm, Ø 15x1 mm / 350 mm, Ø 3"x5,48 / 800 mm, Ø 3/8"x1,65 / 400 mmForm tube vertical position (Querschnitt / min. Durchmesser): 80x25x3 mm / 800 mm, 25x15x2 mm / 400 mmForm tube square (section / min. diameter): 70x70x3 mm / 1.400 mm, 40x40x2 mm / 800 mmAngle leg outside (Querschnitt / min. Durchmesser): 80x80x8 mm / 800 mm, 40x40x4 mm / 400 mmAngle leg inside (section / min. diameter): 80x80x8 mm / 1.000 mm, 40x40x4 mm / 400 mmUPN leg outside (section / min. diameter): UPN 120 / 800 mmUPN leg inside (section / min. diameter): UPN 120 / 800 mmIPN horizontal position (section / min. diameter): IPN 120 / 800 mmLength: 1150 mmWidth: 1200 mmHeight: 1300 mmWeight: 1600 kg
Shaft diameter: 80
Rolls diameter: 260 mm
Driven rolls: 3
Motor power: 7.5 kW
Speed: 6 m/min
Flat steel vertical position (section / min. diameter): 80x15 mm / 800 mm, 40x10 mm / 400 mm
Flat steel horizontal position (section / min. diameter): 125x25 mm / 600 mm, 60x8 mm / 400 mm
Square bar (section / min. diameter): 45x45 mm / 500 mm, 15x15 mm / 350 mm
Round bar (section / min. diameter): Ø 50 mm / 600 mm, Ø 15 mm / 350 mm
Tube (section / min. diameter): Ø 100x2,5 mm / 1.200 mm, Ø 15x1 mm / 350 mm, Ø 3"x5,48 / 800 mm, Ø 3/8"x1,65 / 400 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x25x3 mm / 800 mm, 25x15x2 mm / 400 mm
Form tube square (section / min. diameter): 70x70x3 mm / 1.400 mm, 40x40x2 mm / 800 mm
Angle leg outside (Querschnitt / min. Durchmesser): 80x80x8 mm / 800 mm, 40x40x4 mm / 400 mm
Angle leg inside (section / min. diameter): 80x80x8 mm / 1.000 mm, 40x40x4 mm / 400 mm
UPN leg outside (section / min. diameter): UPN 120 / 800 mm
UPN leg inside (section / min. diameter): UPN 120 / 800 mm
IPN horizontal position (section / min. diameter): IPN 120 / 800 mm
Length: 1150 mm
Width: 1200 mm
Height: 1300 mm
Weight: 1600 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Rolls diameter: 260 mm
Driven rolls: 3
Motor power: 7.5 kW
Speed: 6 m/min
Flat steel vertical position (section / min. diameter): 80x15 mm / 800 mm, 40x10 mm / 400 mm
Flat steel horizontal position (section / min. diameter): 125x25 mm / 600 mm, 60x8 mm / 400 mm
Square bar (section / min. diameter): 45x45 mm / 500 mm, 15x15 mm / 350 mm
Round bar (section / min. diameter): Ø 50 mm / 600 mm, Ø 15 mm / 350 mm
Tube (section / min. diameter): Ø 100x2,5 mm / 1.200 mm, Ø 15x1 mm / 350 mm, Ø 3"x5,48 / 800 mm, Ø 3/8"x1,65 / 400 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x25x3 mm / 800 mm, 25x15x2 mm / 400 mm
Form tube square (section / min. diameter): 70x70x3 mm / 1.400 mm, 40x40x2 mm / 800 mm
Angle leg outside (Querschnitt / min. Durchmesser): 80x80x8 mm / 800 mm, 40x40x4 mm / 400 mm
Angle leg inside (section / min. diameter): 80x80x8 mm / 1.000 mm, 40x40x4 mm / 400 mm
UPN leg outside (section / min. diameter): UPN 120 / 800 mm
UPN leg inside (section / min. diameter): UPN 120 / 800 mm
IPN horizontal position (section / min. diameter): IPN 120 / 800 mm
Length: 1150 mm
Width: 1200 mm
Height: 1300 mm
Weight: 1600 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
1
Machines à travailler la tôlePlieuses
Shaft diameter: 80Rolls diameter: 245 mmDriven rolls: 3Motor power: 4 kWSpeed: 6 m/minFlat steel vertical position (section / min. diameter): 100x20 mm / 2000 mm, 80x20 mm / 800 mm, 30x10 / 300Flat steel horizontal position (section / min. diameter): 125x25 mm / 600 mm, 60x5 mm / 300 mmSquare bar (section / min. diameter): 45x45 mm / 500 mm, 15x15 mm / 380 mmRound bar (section / min. diameter): Ø 50 mm / 500 mm, Ø 15 mm / 380 mmTube (section / min. diameter): Ø 100x2,5 mm / 1.200 mm, Ø 15x1 mm / 380 mm, Ø 3"x5,48 / 800 mm, Ø 1/2"x2,77 / 380 mmForm tube vertical position (Querschnitt / min. Durchmesser): 80x25x3 mm / 800 mm, 25x15x2 mm / 350 mmForm tube square (section / min. diameter): 70x70x3 mm / 1.300 mm, 25x25x2 mm / 350 mmAngle leg outside (Querschnitt / min. Durchmesser): 80x80x8 mm / 800 mm, 30x30x3 mm / 400 mmAngle leg inside (section / min. diameter): 70x70x7 mm / 700 mm, 30x30x3 mm / 450 mmUPN leg outside (section / min. diameter): UPN 140 / 1600 mm, UPN 120 / 900 mm, UPN 100 / 800 mmUPN leg inside (section / min. diameter): UPN 140 / 1.600 mm, UPN 120 / 1000 mm, UPN 100 / 800 mmIPN horizontal position (section / min. diameter): IPN 120 / 600 mm, IPN 80 / 400 mmLength: 1450 mmWidth: 1000 mmHeight: 1400 mmWeight: 1700 kg
Shaft diameter: 80
Rolls diameter: 245 mm
Driven rolls: 3
Motor power: 4 kW
Speed: 6 m/min
Flat steel vertical position (section / min. diameter): 100x20 mm / 2000 mm, 80x20 mm / 800 mm, 30x10 / 300
Flat steel horizontal position (section / min. diameter): 125x25 mm / 600 mm, 60x5 mm / 300 mm
Square bar (section / min. diameter): 45x45 mm / 500 mm, 15x15 mm / 380 mm
Round bar (section / min. diameter): Ø 50 mm / 500 mm, Ø 15 mm / 380 mm
Tube (section / min. diameter): Ø 100x2,5 mm / 1.200 mm, Ø 15x1 mm / 380 mm, Ø 3"x5,48 / 800 mm, Ø 1/2"x2,77 / 380 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x25x3 mm / 800 mm, 25x15x2 mm / 350 mm
Form tube square (section / min. diameter): 70x70x3 mm / 1.300 mm, 25x25x2 mm / 350 mm
Angle leg outside (Querschnitt / min. Durchmesser): 80x80x8 mm / 800 mm, 30x30x3 mm / 400 mm
Angle leg inside (section / min. diameter): 70x70x7 mm / 700 mm, 30x30x3 mm / 450 mm
UPN leg outside (section / min. diameter): UPN 140 / 1600 mm, UPN 120 / 900 mm, UPN 100 / 800 mm
UPN leg inside (section / min. diameter): UPN 140 / 1.600 mm, UPN 120 / 1000 mm, UPN 100 / 800 mm
IPN horizontal position (section / min. diameter): IPN 120 / 600 mm, IPN 80 / 400 mm
Length: 1450 mm
Width: 1000 mm
Height: 1400 mm
Weight: 1700 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Rolls diameter: 245 mm
Driven rolls: 3
Motor power: 4 kW
Speed: 6 m/min
Flat steel vertical position (section / min. diameter): 100x20 mm / 2000 mm, 80x20 mm / 800 mm, 30x10 / 300
Flat steel horizontal position (section / min. diameter): 125x25 mm / 600 mm, 60x5 mm / 300 mm
Square bar (section / min. diameter): 45x45 mm / 500 mm, 15x15 mm / 380 mm
Round bar (section / min. diameter): Ø 50 mm / 500 mm, Ø 15 mm / 380 mm
Tube (section / min. diameter): Ø 100x2,5 mm / 1.200 mm, Ø 15x1 mm / 380 mm, Ø 3"x5,48 / 800 mm, Ø 1/2"x2,77 / 380 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x25x3 mm / 800 mm, 25x15x2 mm / 350 mm
Form tube square (section / min. diameter): 70x70x3 mm / 1.300 mm, 25x25x2 mm / 350 mm
Angle leg outside (Querschnitt / min. Durchmesser): 80x80x8 mm / 800 mm, 30x30x3 mm / 400 mm
Angle leg inside (section / min. diameter): 70x70x7 mm / 700 mm, 30x30x3 mm / 450 mm
UPN leg outside (section / min. diameter): UPN 140 / 1600 mm, UPN 120 / 900 mm, UPN 100 / 800 mm
UPN leg inside (section / min. diameter): UPN 140 / 1.600 mm, UPN 120 / 1000 mm, UPN 100 / 800 mm
IPN horizontal position (section / min. diameter): IPN 120 / 600 mm, IPN 80 / 400 mm
Length: 1450 mm
Width: 1000 mm
Height: 1400 mm
Weight: 1700 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
1
Machines à travailler la tôlePlieuses
Shaft diameter: 60Upper roll diameter: 215 mmLower roll diameter: 215 mmDriven rolls: 3Motor power: 1.5 kWSpeed: 4 m/minFlat steel vertical position (section / min. diameter): 80x20 mm / 1200 mm, 40x10 mm / 400 mmFlat steel horizontal position (section / min. diameter): 120x25 mm / 600 mm, 50 x 10 mm / 400 mmSquare bar (section / min. diameter): 50x50 mm / 800 mm, 20x20 mm / 400 mmRound bar (section / min. diameter): Ø 50 mm / 800 mm, Ø 20 mm / 400 mmTube (section / min. diameter): Ø 100x2 mm / 1600 mm, Ø 60x2 mm / 500 mm, 3"x3,2 mm / 1600 mm, 1"x2,6 mm / 500 mmForm tube vertical position (Querschnitt / min. Durchmesser): 80x40x3 mm / 1400 mm, 40x20x2 mm / 500 mmForm tube square (section / min. diameter): 70x3 mm / 1600 mm, 40x2 mm / 500 mmAngle leg outside (Querschnitt / min. Durchmesser): 70x70x7 mm / 1000 mm, 40x40x5 mm / 500 mmAngle leg inside (section / min. diameter): 70x70x7 mm / 1200 mm, 40x40x5 mm / 600 mmLength: 1000 mmWidth: 1400 mmHeight: 1650 mmWeight: 950 kg
Shaft diameter: 60
Upper roll diameter: 215 mm
Lower roll diameter: 215 mm
Driven rolls: 3
Motor power: 1.5 kW
Speed: 4 m/min
Flat steel vertical position (section / min. diameter): 80x20 mm / 1200 mm, 40x10 mm / 400 mm
Flat steel horizontal position (section / min. diameter): 120x25 mm / 600 mm, 50 x 10 mm / 400 mm
Square bar (section / min. diameter): 50x50 mm / 800 mm, 20x20 mm / 400 mm
Round bar (section / min. diameter): Ø 50 mm / 800 mm, Ø 20 mm / 400 mm
Tube (section / min. diameter): Ø 100x2 mm / 1600 mm, Ø 60x2 mm / 500 mm, 3"x3,2 mm / 1600 mm, 1"x2,6 mm / 500 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x40x3 mm / 1400 mm, 40x20x2 mm / 500 mm
Form tube square (section / min. diameter): 70x3 mm / 1600 mm, 40x2 mm / 500 mm
Angle leg outside (Querschnitt / min. Durchmesser): 70x70x7 mm / 1000 mm, 40x40x5 mm / 500 mm
Angle leg inside (section / min. diameter): 70x70x7 mm / 1200 mm, 40x40x5 mm / 600 mm
Length: 1000 mm
Width: 1400 mm
Height: 1650 mm
Weight: 950 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Upper roll diameter: 215 mm
Lower roll diameter: 215 mm
Driven rolls: 3
Motor power: 1.5 kW
Speed: 4 m/min
Flat steel vertical position (section / min. diameter): 80x20 mm / 1200 mm, 40x10 mm / 400 mm
Flat steel horizontal position (section / min. diameter): 120x25 mm / 600 mm, 50 x 10 mm / 400 mm
Square bar (section / min. diameter): 50x50 mm / 800 mm, 20x20 mm / 400 mm
Round bar (section / min. diameter): Ø 50 mm / 800 mm, Ø 20 mm / 400 mm
Tube (section / min. diameter): Ø 100x2 mm / 1600 mm, Ø 60x2 mm / 500 mm, 3"x3,2 mm / 1600 mm, 1"x2,6 mm / 500 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x40x3 mm / 1400 mm, 40x20x2 mm / 500 mm
Form tube square (section / min. diameter): 70x3 mm / 1600 mm, 40x2 mm / 500 mm
Angle leg outside (Querschnitt / min. Durchmesser): 70x70x7 mm / 1000 mm, 40x40x5 mm / 500 mm
Angle leg inside (section / min. diameter): 70x70x7 mm / 1200 mm, 40x40x5 mm / 600 mm
Length: 1000 mm
Width: 1400 mm
Height: 1650 mm
Weight: 950 kg
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
2
Machines à travailler la tôlePlieuses
Bending length: 350 - 2250 mmMax. sheet length: 2600 mmMax. sheet width: 1524 mmMin. bendable width: 150 mmMax. bending height: 254 mmMax. bending depth: 50 mmMax. sheet rotation area: 3300 mmBending force: 32 toPressure force: 52 toSheet thickness (420 N/mm²): 2.5 mmSheet thickness (600 N/mm²): 1.8 mmSheet thickness (260 N/mm²): 3.5 mmMin. sheet thickness - mild steel: 0.5 mmMax. bending angle: 135 °
Bending length: 350 - 2250 mm
Max. sheet length: 2600 mm
Max. sheet width: 1524 mm
Min. bendable width: 150 mm
Max. bending height: 254 mm
Max. bending depth: 50 mm
Max. sheet rotation area: 3300 mm
Bending force: 32 to
Pressure force: 52 to
Sheet thickness (420 N/mm²): 2.5 mm
Sheet thickness (600 N/mm²): 1.8 mm
Sheet thickness (260 N/mm²): 3.5 mm
Min. sheet thickness - mild steel: 0.5 mm
Max. bending angle: 135 °
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Max. sheet length: 2600 mm
Max. sheet width: 1524 mm
Min. bendable width: 150 mm
Max. bending height: 254 mm
Max. bending depth: 50 mm
Max. sheet rotation area: 3300 mm
Bending force: 32 to
Pressure force: 52 to
Sheet thickness (420 N/mm²): 2.5 mm
Sheet thickness (600 N/mm²): 1.8 mm
Sheet thickness (260 N/mm²): 3.5 mm
Min. sheet thickness - mild steel: 0.5 mm
Max. bending angle: 135 °
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
10
Machines à travailler la tôlePlieuses
Blechbreite: 2100 mmBlechstärke: 20 mmAnbiegung: .Oberwalzen-Durchmesser: 300 mmUnterwalzen-Durchmesser: 400 mmGesamtleistungsbedarf: kWMaschinengewicht ca.: tRaumbedarf ca.: m
Blechbreite: 2100 mm
Blechstärke: 20 mm
Anbiegung: .
Oberwalzen-Durchmesser: 300 mm
Unterwalzen-Durchmesser: 400 mm
Gesamtleistungsbedarf: kW
Maschinengewicht ca.: t
Raumbedarf ca.: m
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Blechstärke: 20 mm
Anbiegung: .
Oberwalzen-Durchmesser: 300 mm
Unterwalzen-Durchmesser: 400 mm
Gesamtleistungsbedarf: kW
Maschinengewicht ca.: t
Raumbedarf ca.: m
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
