Données sur les annonces
Numéro de référence
1077-V0194

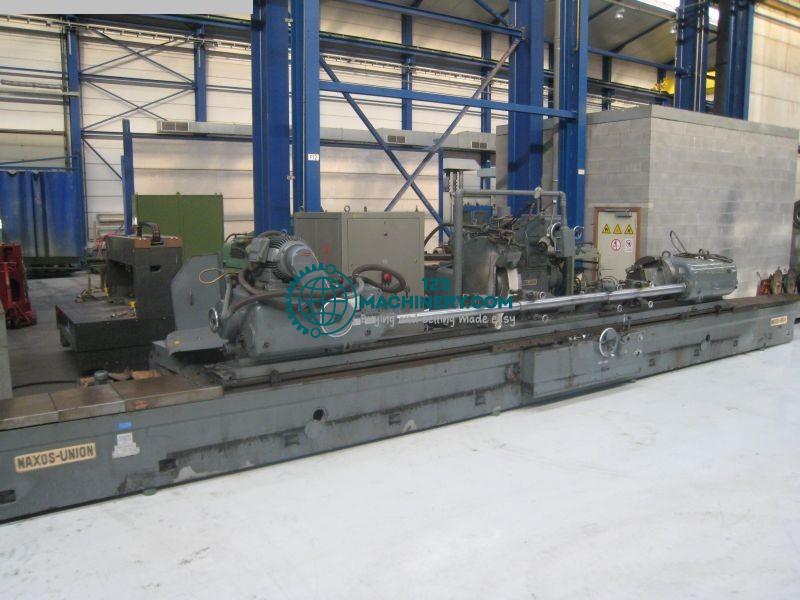

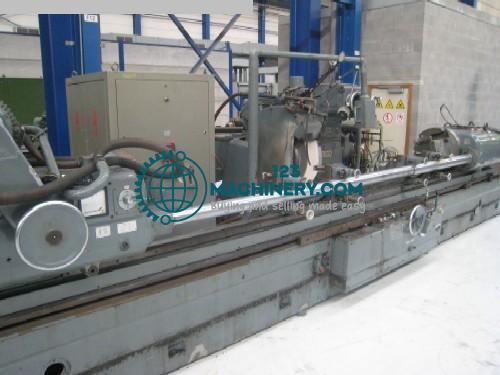

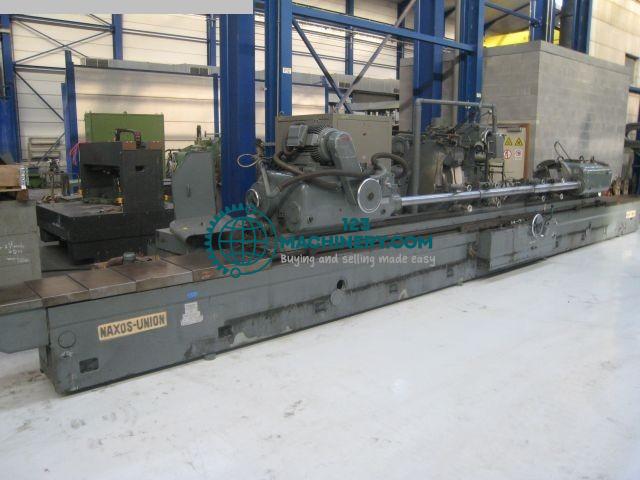

Nom de la machine
Nockenwellenschleifmaschine
Fabricant
NAXOS-UNION
Type
Km630-3250
Condition
occassion
Emplacement de l`annonce
Hüttenstrasse 1, 46284 Dorsten, Germany
Description
Werkstücklänge: 3250 mm
Umlaufdurchmesser: 630 mm
Schleifscheibendurchmesser: 900 mm
Gesamtleistungsbedarf: kW
Maschinengewicht ca.: t
Raumbedarf ca.: m
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
Umlaufdurchmesser: 630 mm
Schleifscheibendurchmesser: 900 mm
Gesamtleistungsbedarf: kW
Maschinengewicht ca.: t
Raumbedarf ca.: m
L`annonce a été traduite automatiquement et certaines erreurs de traduction peuvent s`être produites.
