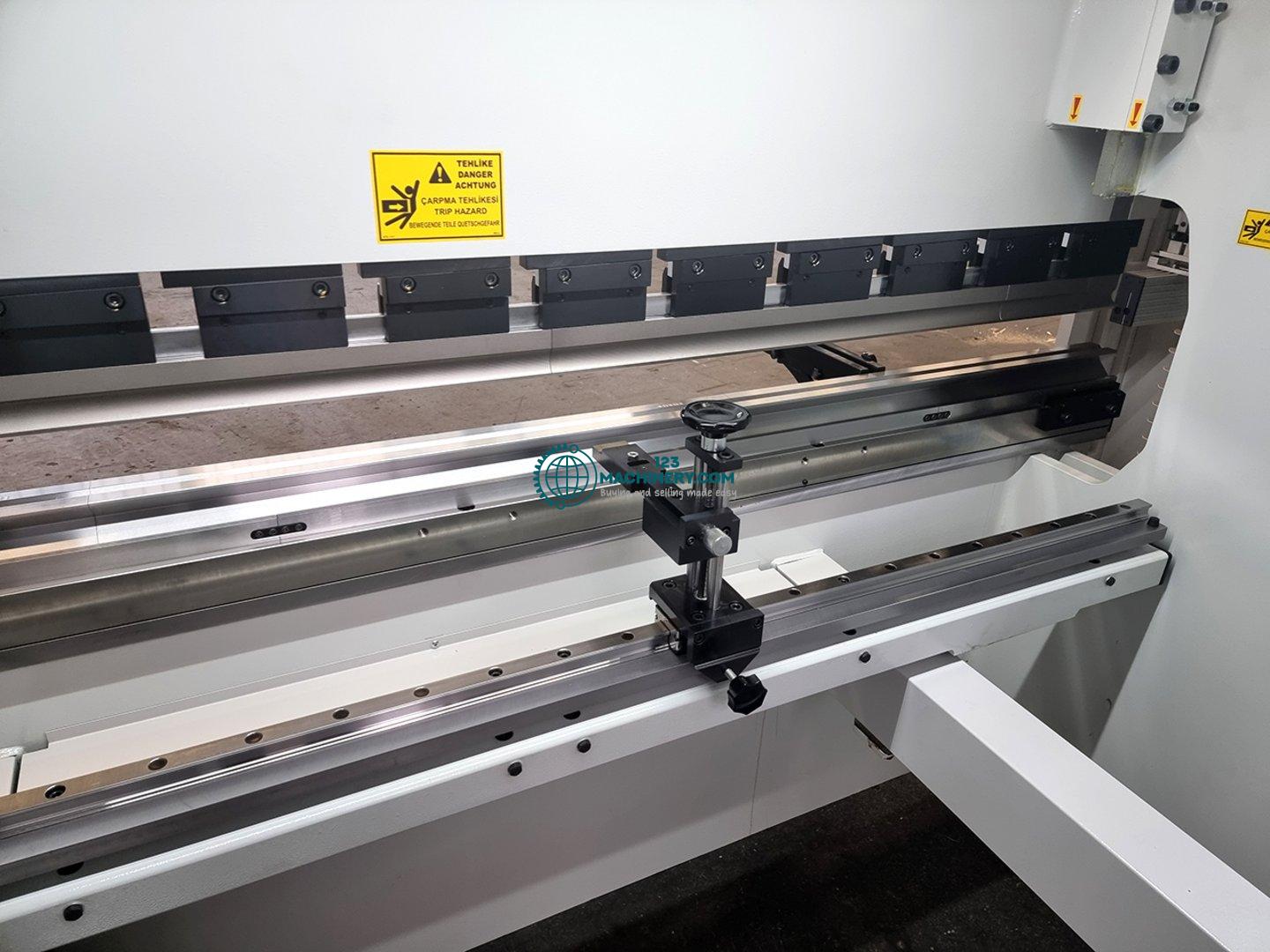

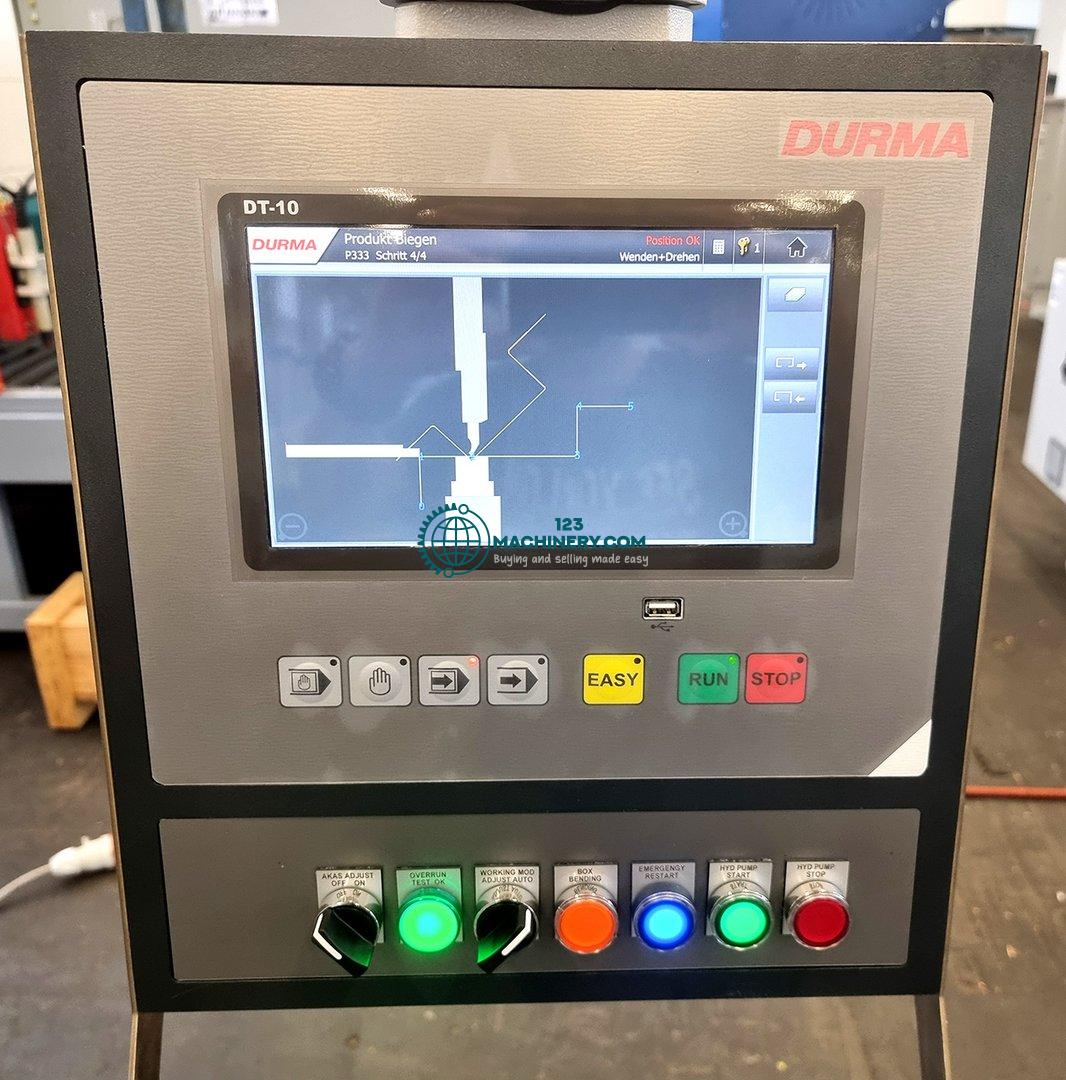

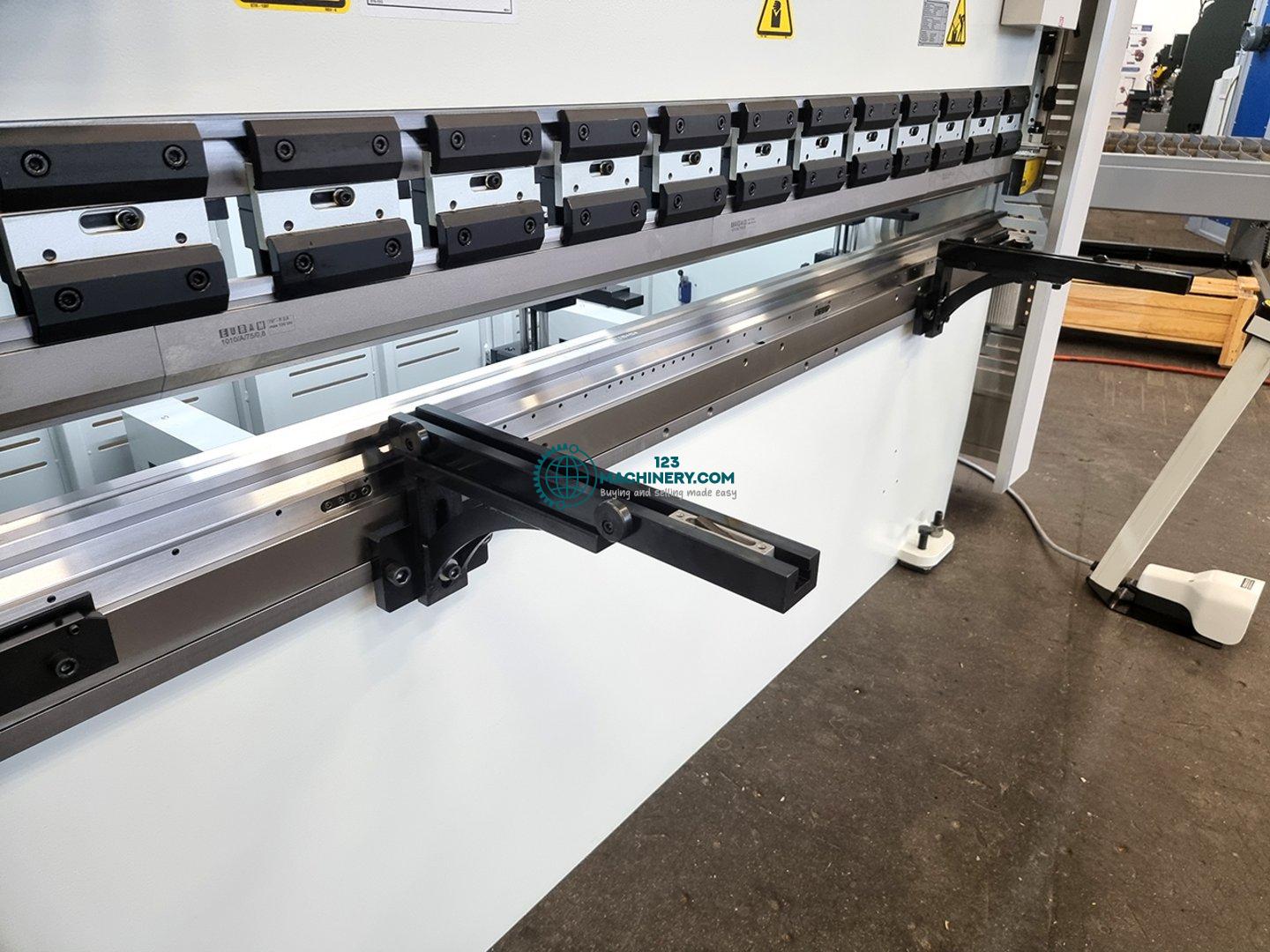

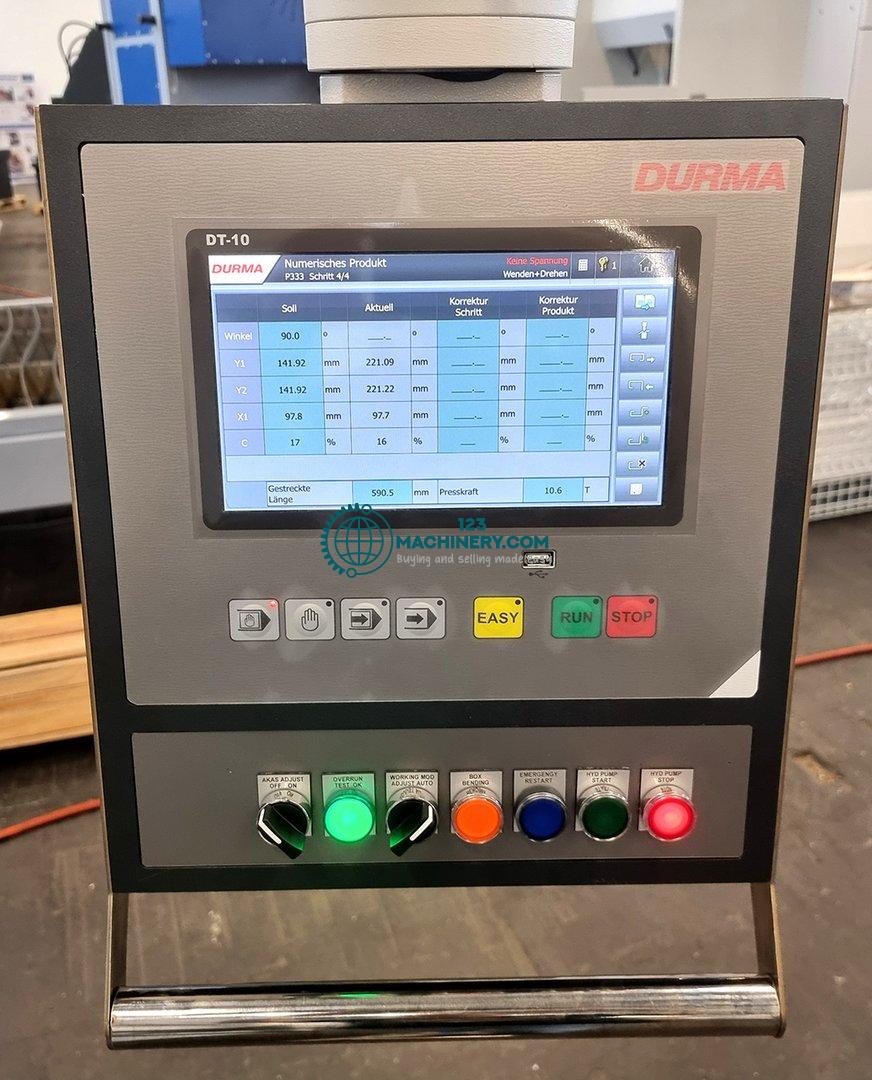

Hydraulic CNC press brake HESSE by DURMA PBF 2560
HESSE by DURMA PBF 2560
6
İlan bilgileri
Referans numarası
80091
Makine açıklaması
Hydraulic CNC press brake HESSE by DURMA PBF 2560
Marka
HESSE by DURMA
Tip
PBF 2560
Model
2025
Durum
yeni
İlan yeri
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Açıklama
pressing capacity: 60 to
Bending length: 2550 mm
Axes: Y1 / Y2 and X-axis
Stroke: 160 mm
Inside distance between side frames: 2150 mm
Gap in side frame: 250 mm
Daylight: 350 mm
Power concept: hydraulic
rapid speed Y-axis: 120 mm/s
Working speed Y-axis: 9
Retractionspeed Y-axis: 70
Back gauge travel X-axis: 620 (with optional R-axis: 500 mm) mm
Back gauge speed X-axis: 250
Table height: 813 mm
Table width: 104 mm
Oiltank: 100 l
Motor power: 5.5 kW
Length: 3250 mm
Width: 1200 mm
Height: 2350 mm
Weight: 4250 kg
İlan otomatik olarak çevrildiği için bazı hatalar oluşmuş olabilir.
