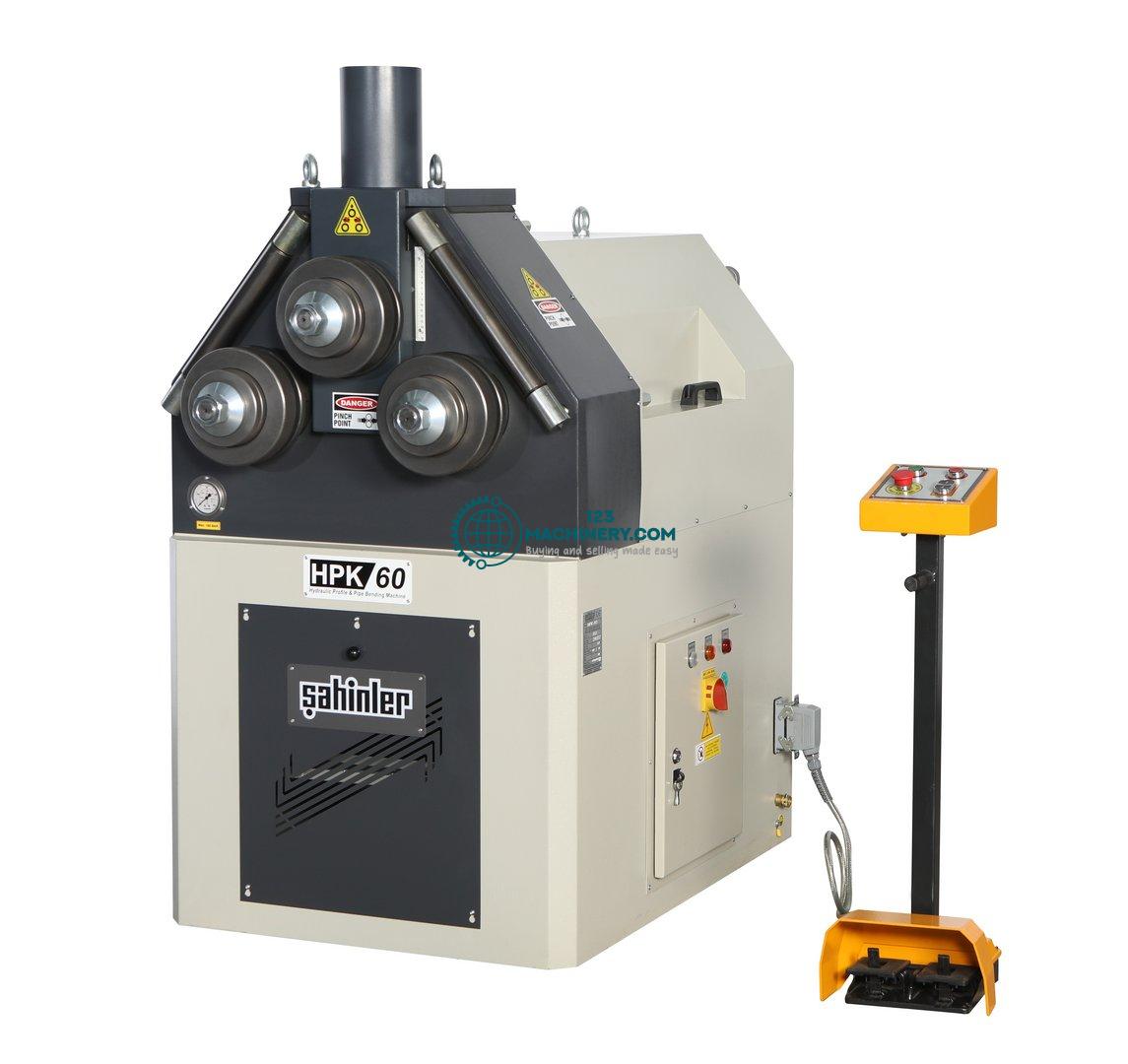

Profile bending machine with hydraulic feed of rol
HESSE by SAHINLER HPK 60
1
İlan bilgileri
Referans numarası
#A-1025
Makine açıklaması
Profile bending machine with hydraulic feed of rol
Marka
HESSE by SAHINLER
Tip
HPK 60
Durum
yeni
İlan yeri
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Açıklama
Shaft diameter: 60
Upper roll diameter: 215 mm
Lower roll diameter: 215 mm
Driven rolls: 3
Motor power: 1.5 kW
Speed: 4 m/min
Flat steel vertical position (section / min. diameter): 80x20 mm / 1200 mm, 40x10 mm / 400 mm
Flat steel horizontal position (section / min. diameter): 120x25 mm / 600 mm, 50 x 10 mm / 400 mm
Square bar (section / min. diameter): 50x50 mm / 800 mm, 20x20 mm / 400 mm
Round bar (section / min. diameter): Ø 50 mm / 800 mm, Ø 20 mm / 400 mm
Tube (section / min. diameter): Ø 100x2 mm / 1600 mm, Ø 60x2 mm / 500 mm, 3"x3,2 mm / 1600 mm, 1"x2,6 mm / 500 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x40x3 mm / 1400 mm, 40x20x2 mm / 500 mm
Form tube square (section / min. diameter): 70x3 mm / 1600 mm, 40x2 mm / 500 mm
Angle leg outside (Querschnitt / min. Durchmesser): 70x70x7 mm / 1000 mm, 40x40x5 mm / 500 mm
Angle leg inside (section / min. diameter): 70x70x7 mm / 1200 mm, 40x40x5 mm / 600 mm
Length: 1000 mm
Width: 1400 mm
Height: 1650 mm
Weight: 950 kg
İlan otomatik olarak çevrildiği için bazı hatalar oluşmuş olabilir.
Upper roll diameter: 215 mm
Lower roll diameter: 215 mm
Driven rolls: 3
Motor power: 1.5 kW
Speed: 4 m/min
Flat steel vertical position (section / min. diameter): 80x20 mm / 1200 mm, 40x10 mm / 400 mm
Flat steel horizontal position (section / min. diameter): 120x25 mm / 600 mm, 50 x 10 mm / 400 mm
Square bar (section / min. diameter): 50x50 mm / 800 mm, 20x20 mm / 400 mm
Round bar (section / min. diameter): Ø 50 mm / 800 mm, Ø 20 mm / 400 mm
Tube (section / min. diameter): Ø 100x2 mm / 1600 mm, Ø 60x2 mm / 500 mm, 3"x3,2 mm / 1600 mm, 1"x2,6 mm / 500 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x40x3 mm / 1400 mm, 40x20x2 mm / 500 mm
Form tube square (section / min. diameter): 70x3 mm / 1600 mm, 40x2 mm / 500 mm
Angle leg outside (Querschnitt / min. Durchmesser): 70x70x7 mm / 1000 mm, 40x40x5 mm / 500 mm
Angle leg inside (section / min. diameter): 70x70x7 mm / 1200 mm, 40x40x5 mm / 600 mm
Length: 1000 mm
Width: 1400 mm
Height: 1650 mm
Weight: 950 kg
İlan otomatik olarak çevrildiği için bazı hatalar oluşmuş olabilir.
