Used ENGEL insert 200 H/70 CC 200
ENGEL insert 200 H/70 CC 200
12
Advertentiegegevens
Referentienummer
18597
Machinebenaming
Used ENGEL insert 200 H/70 CC 200
Fabrikant
ENGEL
Type
insert 200 H/70 CC 200
Jaar van fabricage
2007
Staat
Gebruikt
Locatie van de advertentie
Schmiedestraße 3, 45527 Hattingen, Germany
Beschrijving
Ref. no.: 18597
Hersteller: ENGEL
Year of construction: 2007

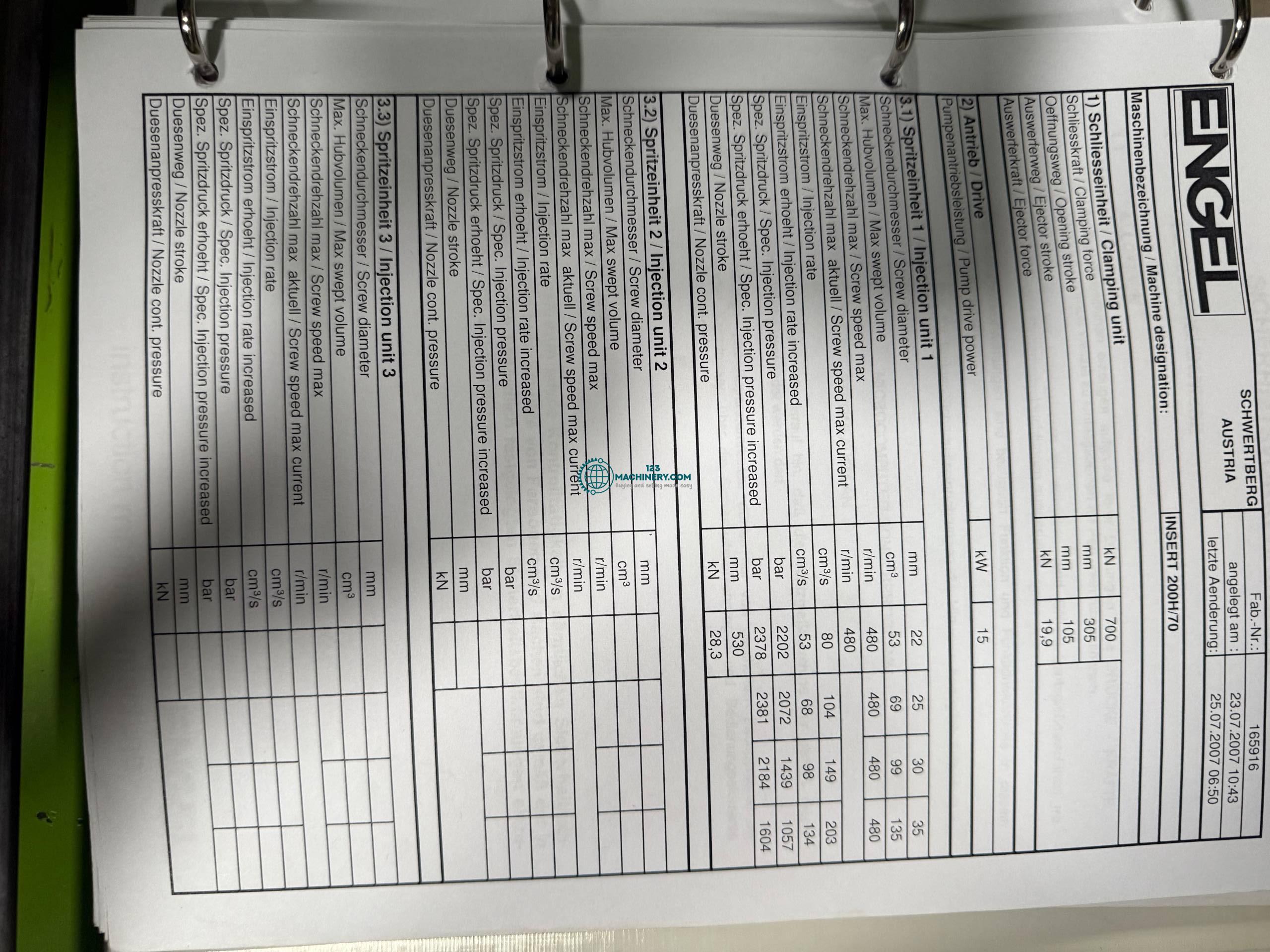

Clamping unit
Clamping force: 70 ton
Opening stroke: 305 mm

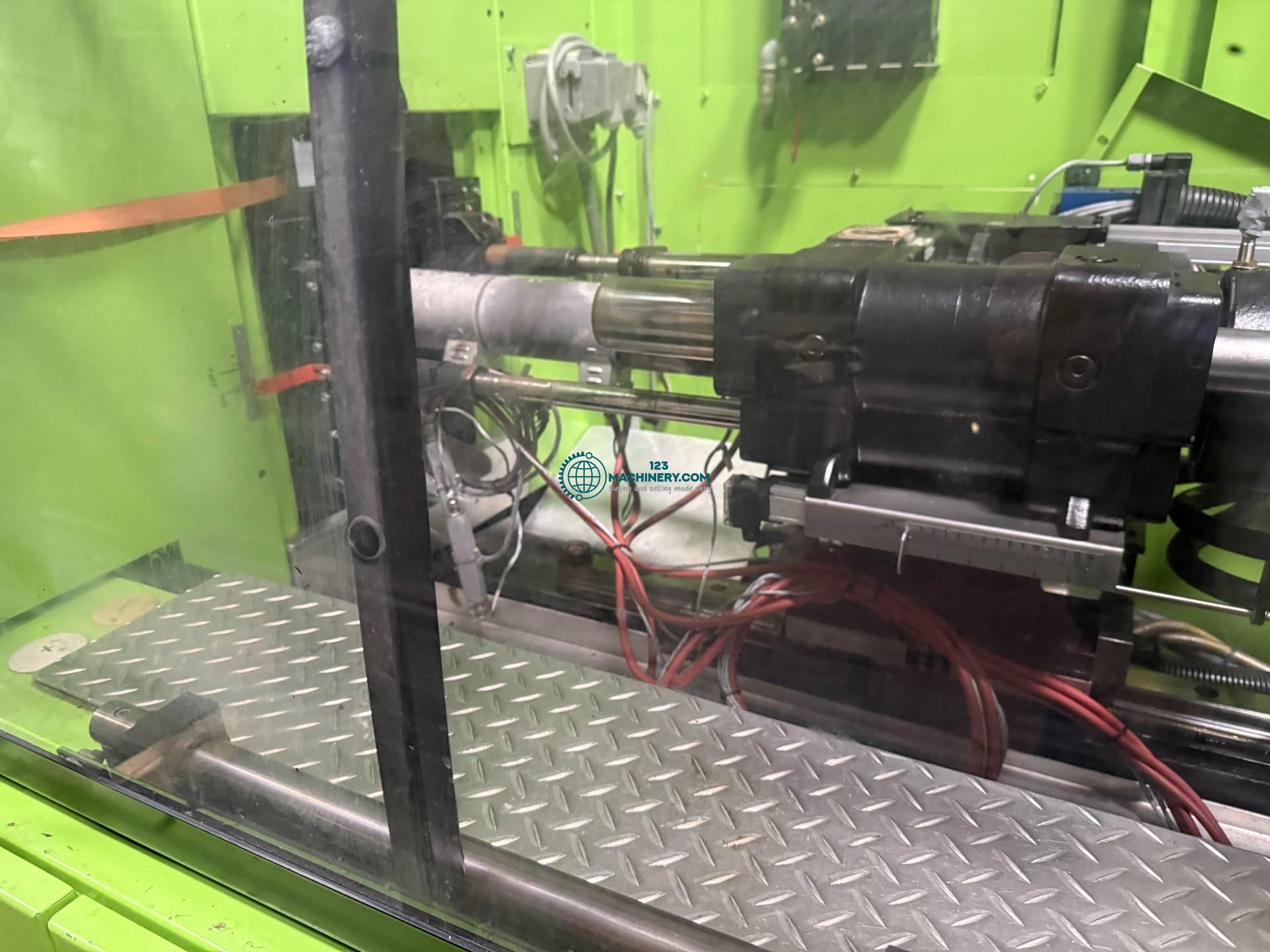

Injection unit
Screw diameter: 25 mm
Injection volume: 69 cm³
Shot weight: 62 g
Injection pressure: 2381 bar
Measurements and weight

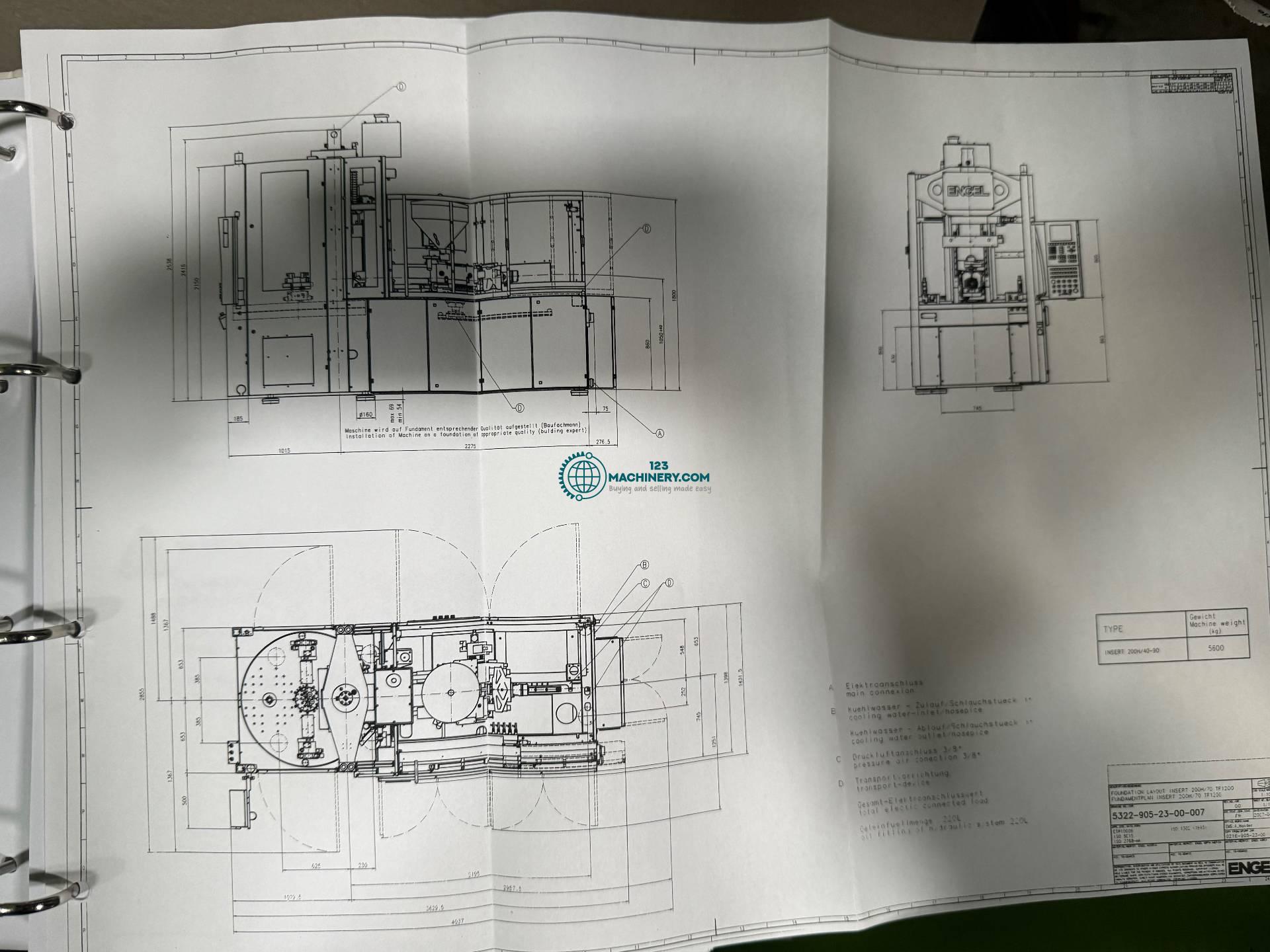

Dimensions: 4,0 x 1,8 x 2,5 m
Machine weight: 5600 kg
Further information:

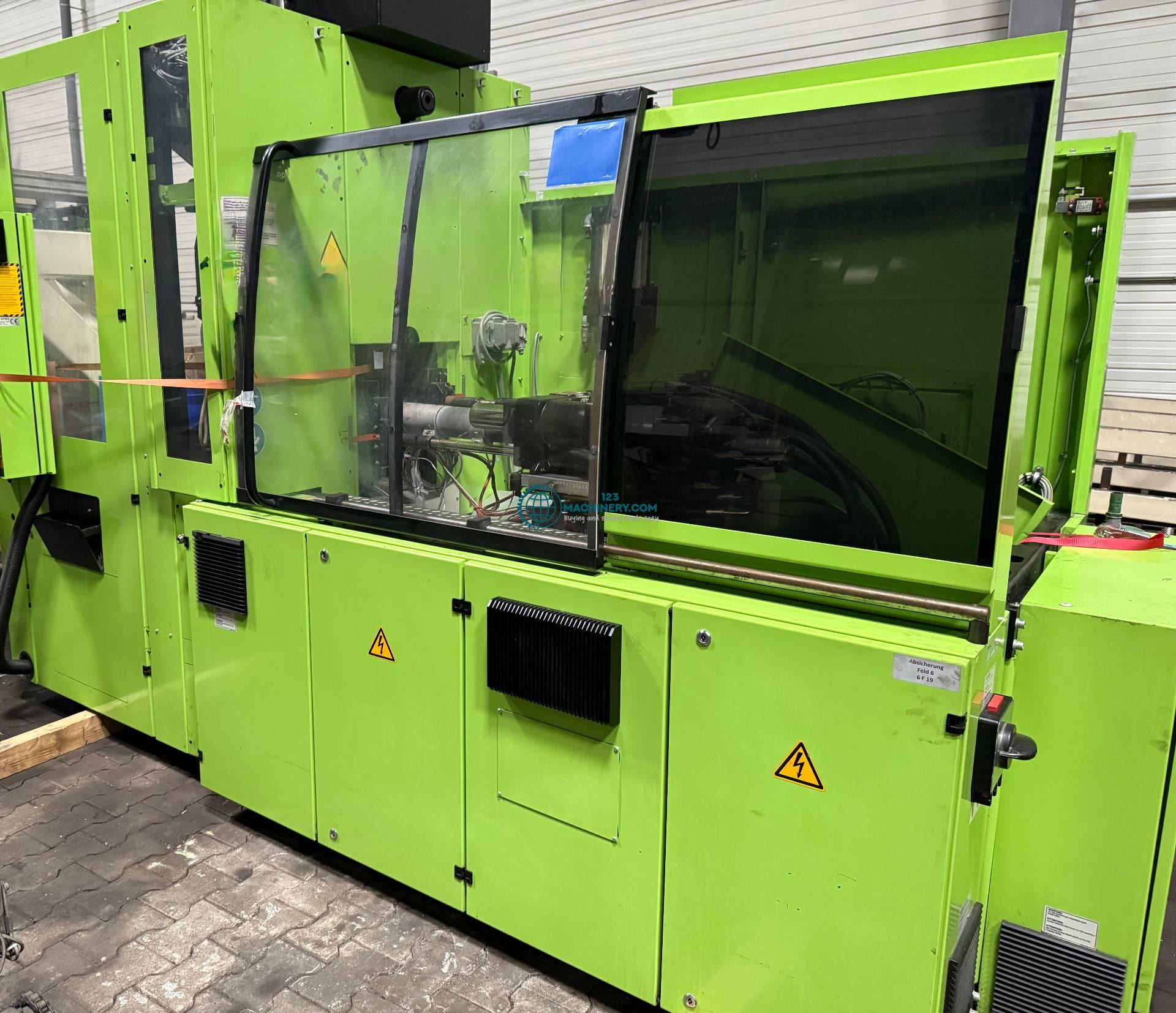

The ENGEL INSERT 200H/70 is a professional vertical injection moulding machine specially designed for insert molding and precision technical plastic applications. Built with ENGEL’s compact and robust machine concept, this model has been widely used for many years in the automotive, electronics, cable technology and technical plastics industries.

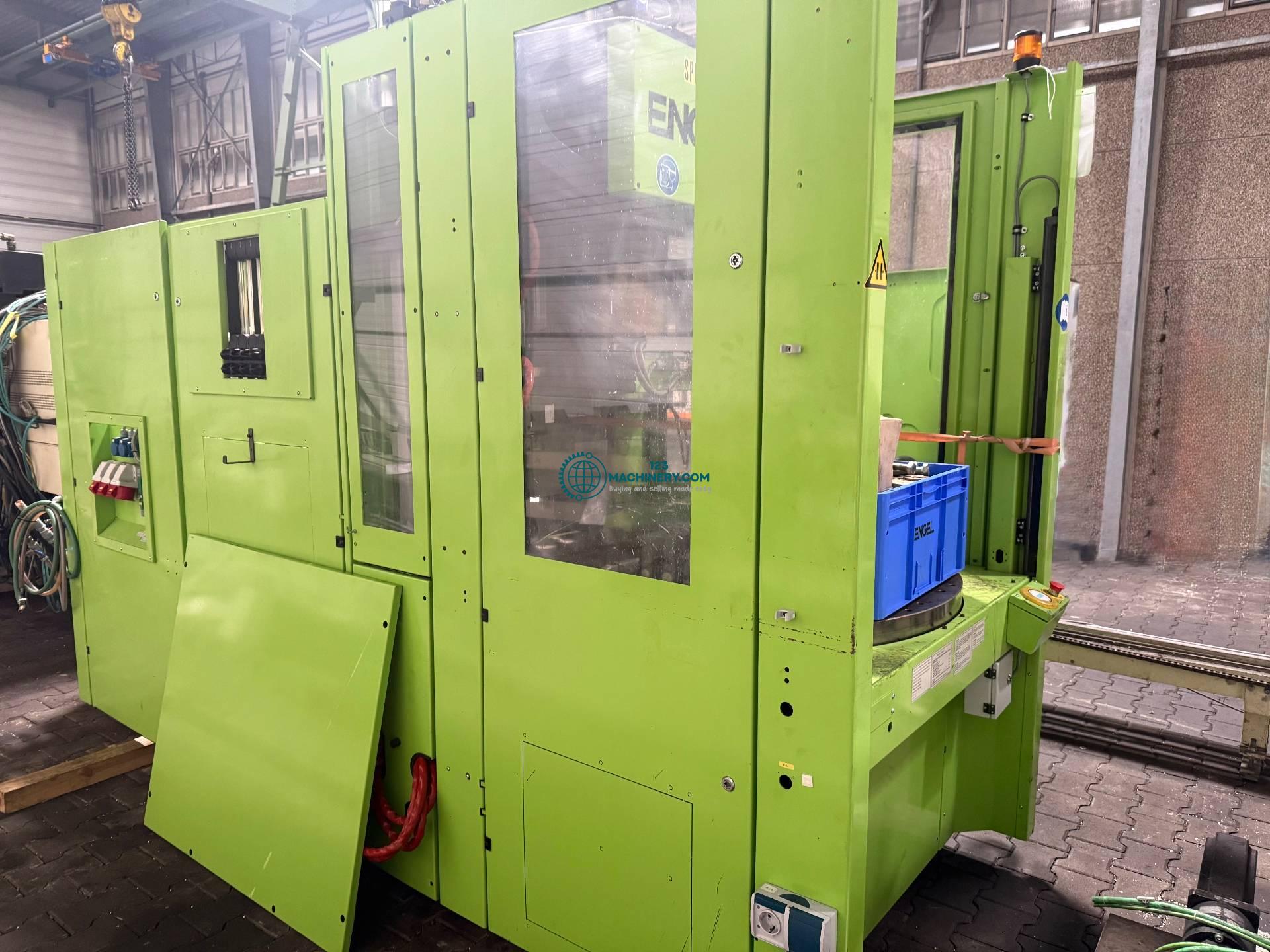

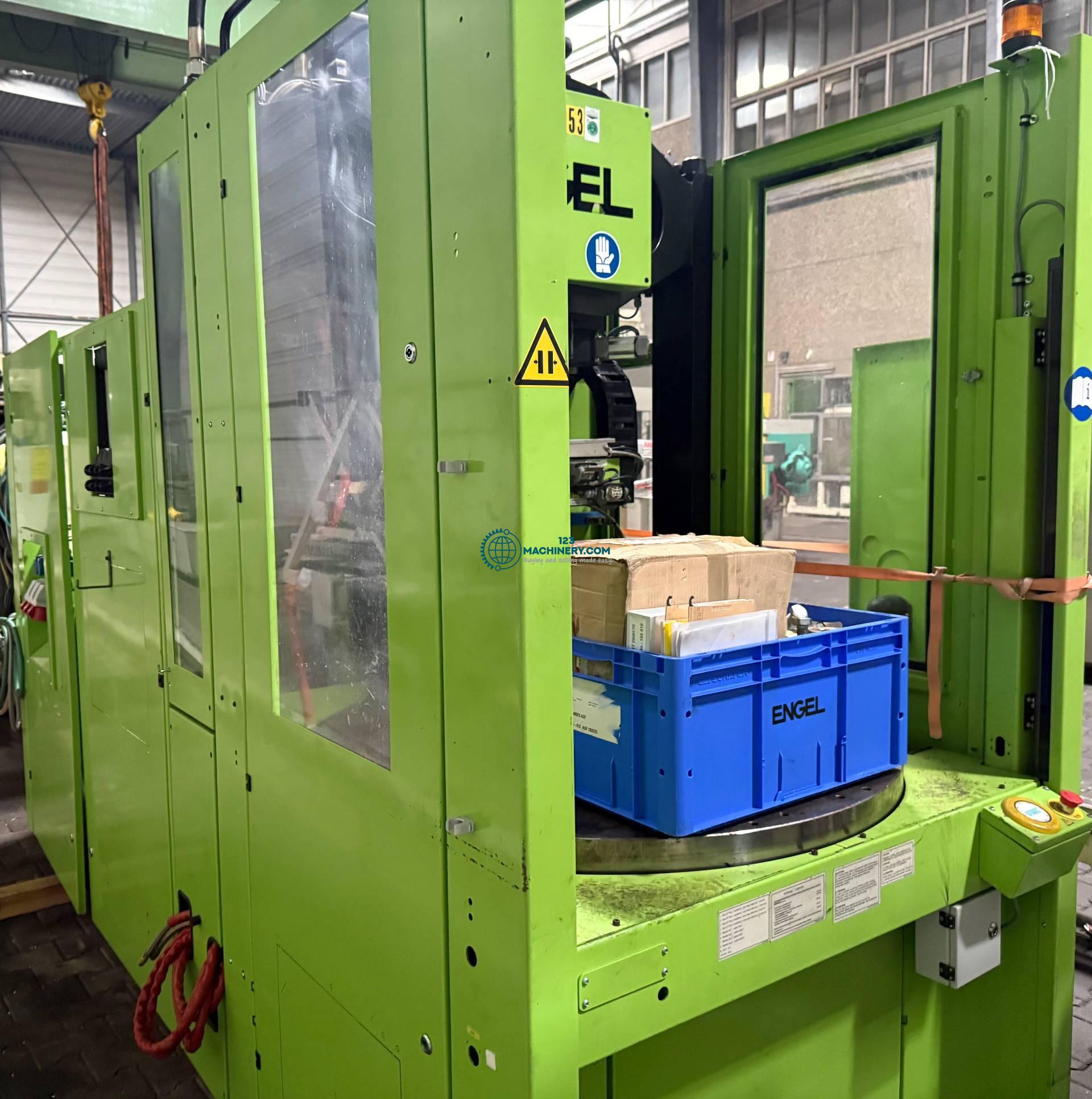

One of the major advantages of this machine is its rotary table system. This design allows the operator to load inserts on one side while production continues on the other side. As a result, cycle times are reduced and production becomes safer and more efficient. This system is especially advantageous for manufacturing metal insert parts, connectors, cable components and precision technical products.
Compared to conventional horizontal injection moulding machines, the ENGEL INSERT series offers a much more ergonomic and controlled process for insert placement. Thanks to the vertical clamping system, inserts remain stable inside the mould, enabling highly precise production results.

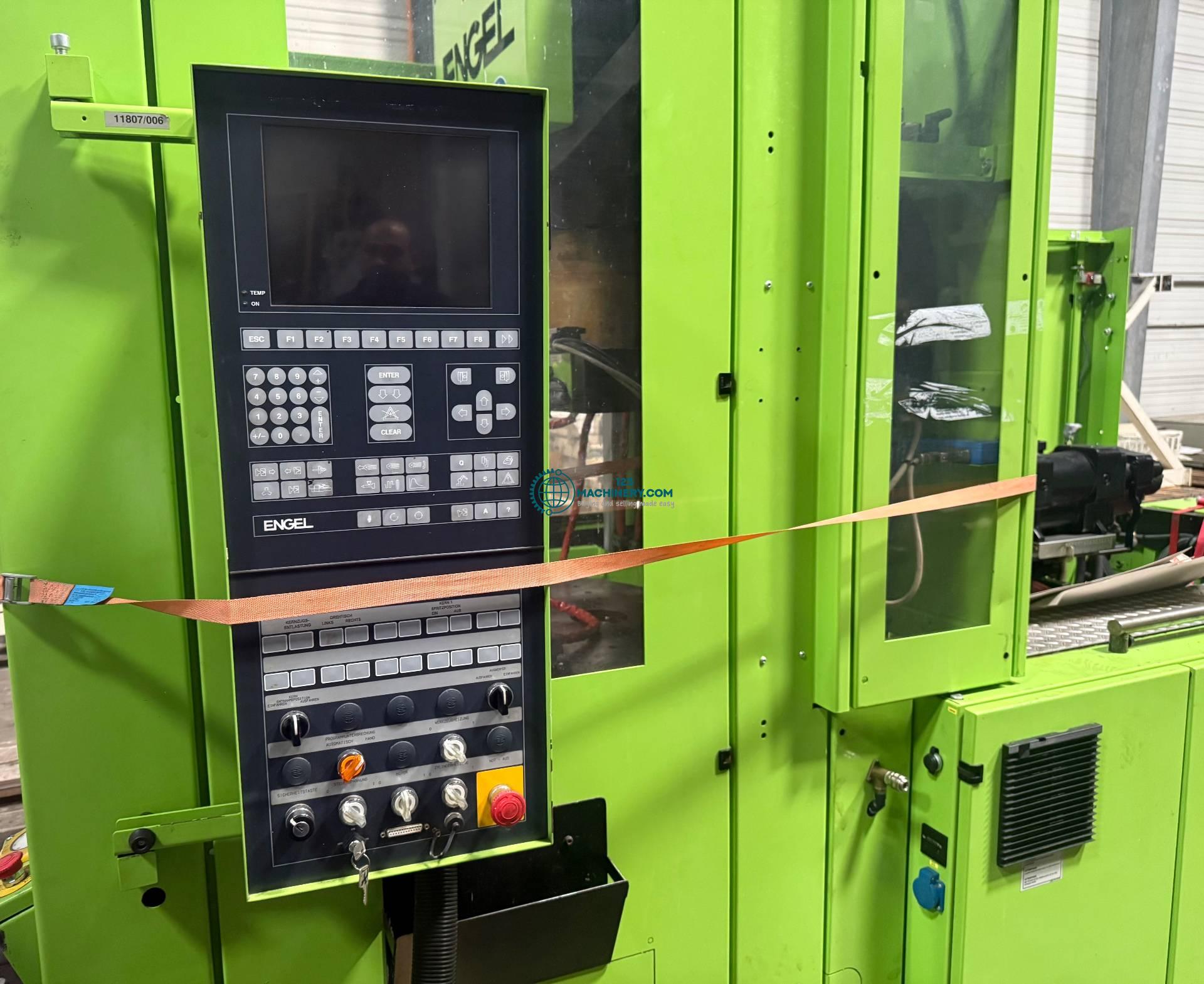

The ENGEL control system used on this machine is known for stable process management and reliable operation. Its user-friendly interface allows easy handling in daily production.
The machine has approximately 51,944 operating hours and was reportedly in running condition until removed from production.

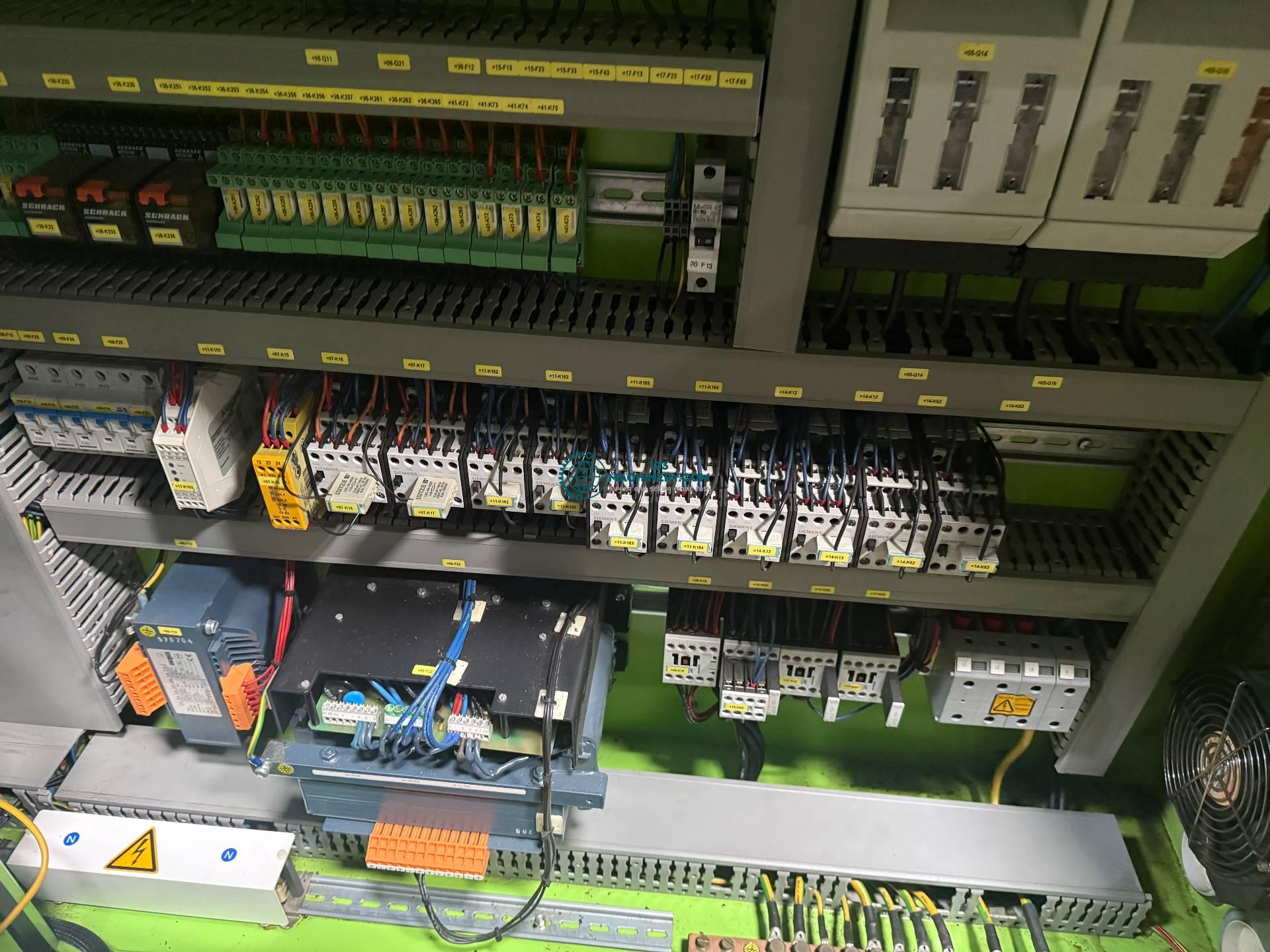

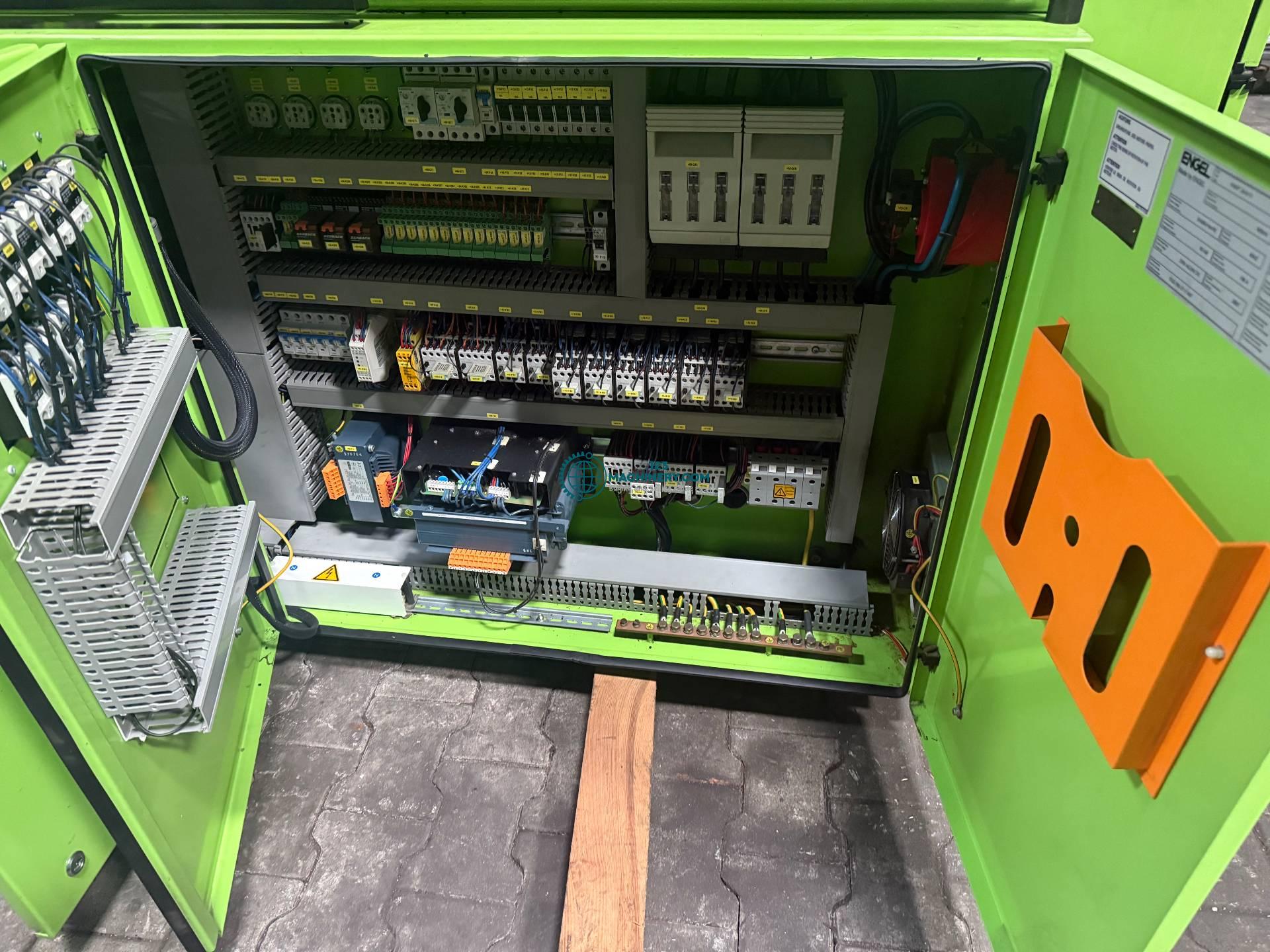

The overall condition of the machine is clean and well maintained. The electrical cabinet is tidy and the mechanical components appear to be in good condition.
The ENGEL INSERT series is particularly suitable for:
* insert molding applications
* metal/plastic combination parts
* electronic component production
* connector and cable technology
* technical plastic parts
* precision industrial products
With its robust mechanical construction, compact design and professional production capabilities, the ENGEL INSERT 200H/70 represents a reliable and long-lasting production solution for technical plastic manufacturers.
De advertentie werd automatisch vertaald en er kunnen enkele vertaalfouten zijn opgetreden.
