İkinci el BATTENFELD EM 75-120 Unilog B4 Tamamen e
BATTENFELD EM 75-120 Unilog B4 All-electric
13
İlan bilgileri
Referans numarası
16369
Makine açıklaması
İkinci el BATTENFELD EM 75-120 Unilog B4 Tamamen e
Marka
BATTENFELD
Tip
EM 75-120 Unilog B4 All-electric
Model
2005
Durum
kullanılmış
İlan yeri
Schmiedestraße 3, 45527 Hattingen, Germany
Açıklama
Ref. no.: 16369
Hersteller: BATTENFELD
Year of construction: 2005
Clamping unit
Clamping force: 75 ton
Opening stroke: 800 mm
Distance between tie bars: 405 x 405 mm
Mould height min.: 150 mm
Mould height max.: 480 mm
Injection unit
Screw diameter: 18 mm
Injection volume: 30 cm³
Shot weight: 27 g
Injection pressure: 2440 bar
Measurements and weight
Dimensions: 4,5 x 1,7 x 2,0 m
Machine weight: 4500 kg
Further information:
BATTENFELD EM 75/120 UNILOG B4
All-Electric Precision Injection Moulding Machine
The BATTENFELD EM 75/120 UNILOG B4 is a high-quality Austrian-made all-electric injection moulding machine. The BATTENFELD EM series was considered one of the most advanced servo-electric machine concepts of its time and was specifically designed for energy-efficient and highly precise production processes.
All major machine movements are driven by modern servo motors, providing:
* very low energy consumption
* high repeatability and precision
* smooth and quiet machine operation
* low maintenance requirements
* stable and accurate production performance
The machine is especially suitable for:
* technical plastic components
* electronic parts
* precision moulded products
* small and medium-sized production runs
Compared to conventional hydraulic machines, the all-electric technology offers significantly improved energy efficiency and process stability.
Equipped with the reliable BATTENFELD UNILOG B4 control system, the machine provides:
* user-friendly operation
* precise process control
* stable cycle times
* accurate servo axis management

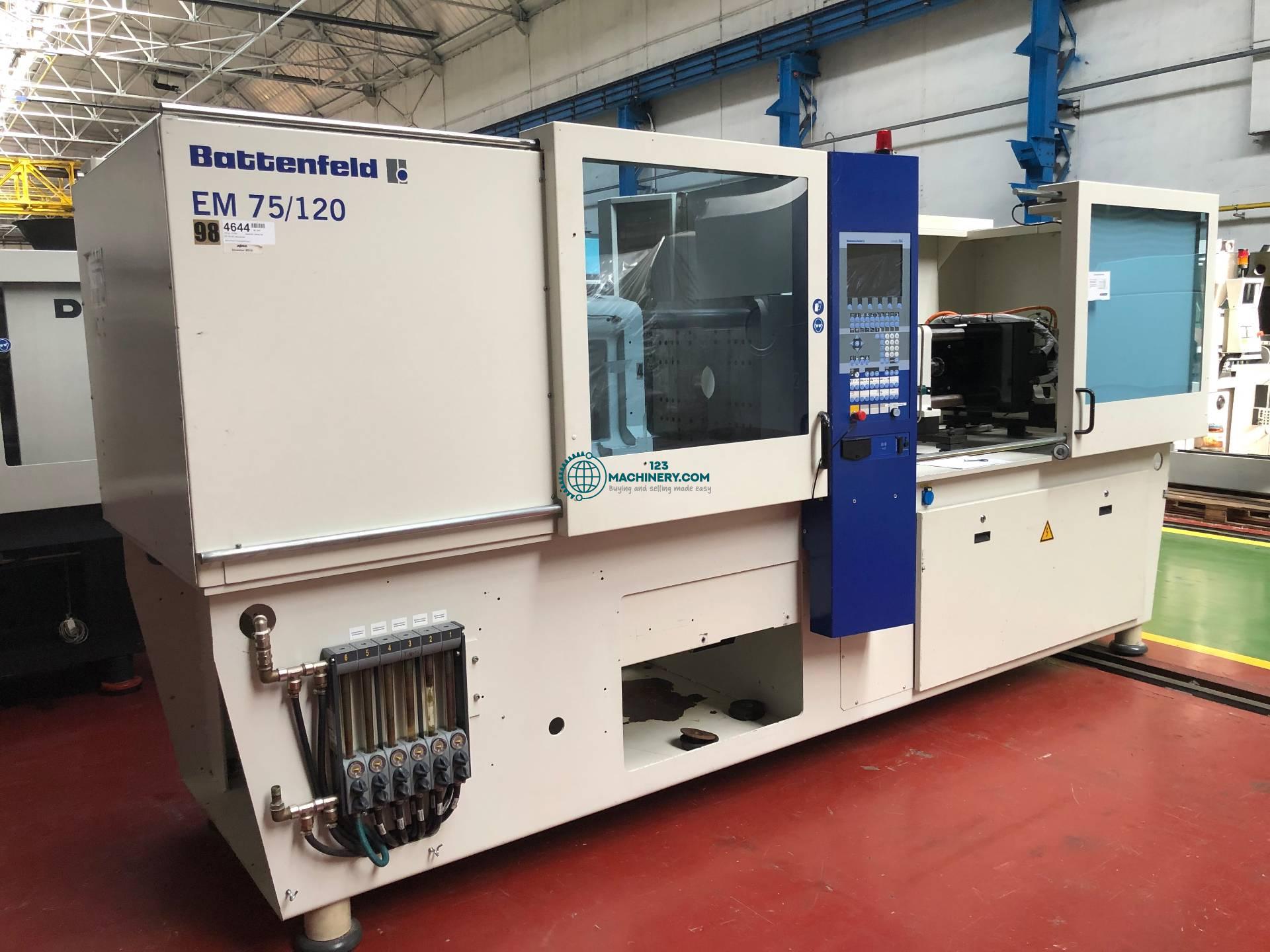

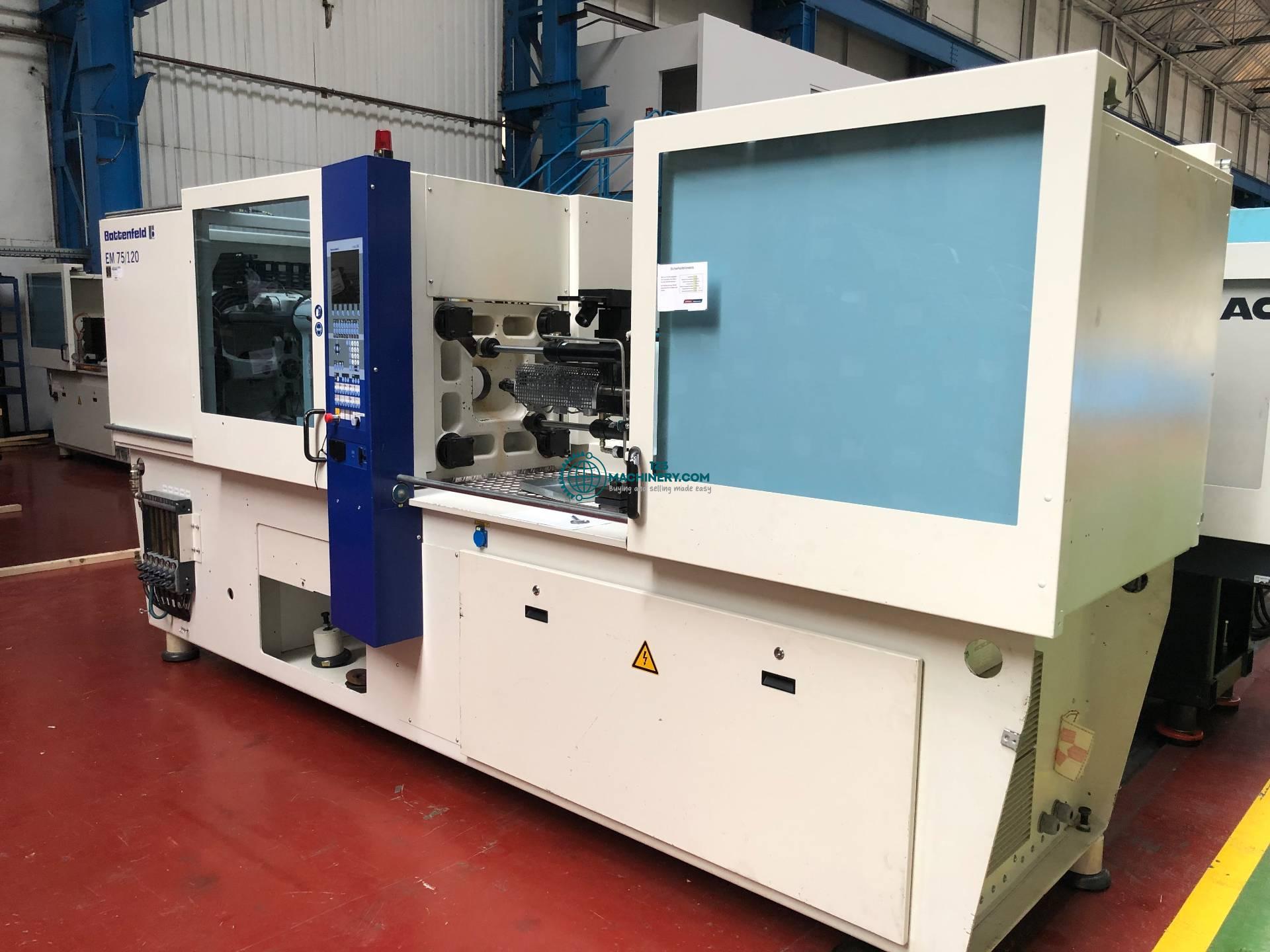

The machine has approximately 69,094 operating hours and appears to be in clean and well-maintained condition. The photos clearly show:
* a clean electrical cabinet
* well-maintained mechanical components
* properly kept servo-electric units
* a clean injection unit
The BATTENFELD EM 75/120 UNILOG B4 is a reliable and energy-efficient solution for demanding plastic injection moulding applications.
İlan otomatik olarak çevrildiği için bazı hatalar oluşmuş olabilir.
Hersteller: BATTENFELD
Year of construction: 2005
Clamping unit
Clamping force: 75 ton
Opening stroke: 800 mm
Distance between tie bars: 405 x 405 mm
Mould height min.: 150 mm
Mould height max.: 480 mm
Injection unit
Screw diameter: 18 mm
Injection volume: 30 cm³
Shot weight: 27 g
Injection pressure: 2440 bar
Measurements and weight
Dimensions: 4,5 x 1,7 x 2,0 m
Machine weight: 4500 kg
Further information:
BATTENFELD EM 75/120 UNILOG B4
All-Electric Precision Injection Moulding Machine
The BATTENFELD EM 75/120 UNILOG B4 is a high-quality Austrian-made all-electric injection moulding machine. The BATTENFELD EM series was considered one of the most advanced servo-electric machine concepts of its time and was specifically designed for energy-efficient and highly precise production processes.
All major machine movements are driven by modern servo motors, providing:
* very low energy consumption
* high repeatability and precision
* smooth and quiet machine operation
* low maintenance requirements
* stable and accurate production performance
The machine is especially suitable for:
* technical plastic components
* electronic parts
* precision moulded products
* small and medium-sized production runs
Compared to conventional hydraulic machines, the all-electric technology offers significantly improved energy efficiency and process stability.
Equipped with the reliable BATTENFELD UNILOG B4 control system, the machine provides:
* user-friendly operation
* precise process control
* stable cycle times
* accurate servo axis management
The machine has approximately 69,094 operating hours and appears to be in clean and well-maintained condition. The photos clearly show:
* a clean electrical cabinet
* well-maintained mechanical components
* properly kept servo-electric units
* a clean injection unit
The BATTENFELD EM 75/120 UNILOG B4 is a reliable and energy-efficient solution for demanding plastic injection moulding applications.
İlan otomatik olarak çevrildiği için bazı hatalar oluşmuş olabilir.
