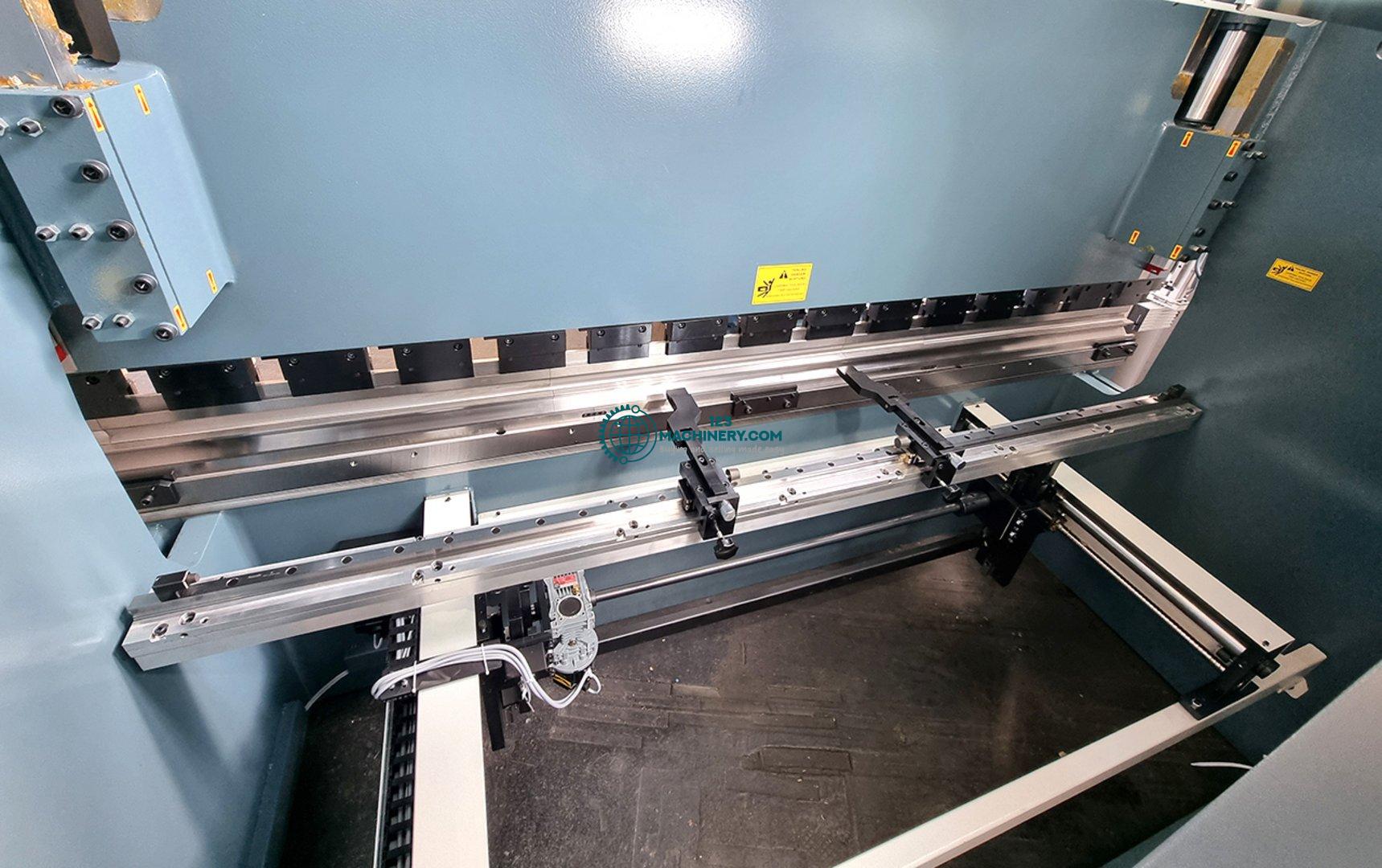

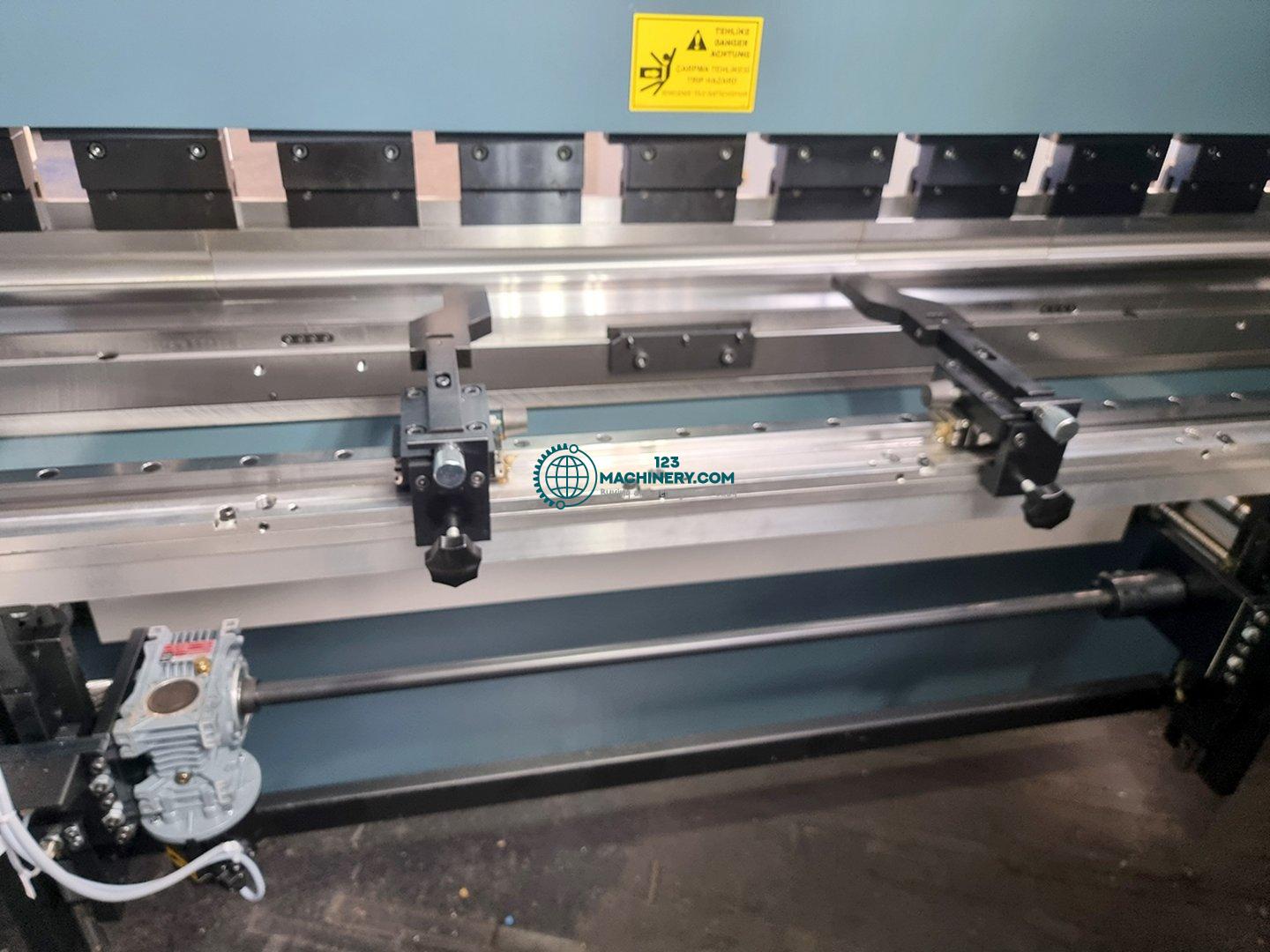

Hydraulic CNC press brake HESSE by DURMA PBF 30200
HESSE by DURMA PBF 30200
5
İlan bilgileri
Referans numarası
8319
Makine açıklaması
Hydraulic CNC press brake HESSE by DURMA PBF 30200
Marka
HESSE by DURMA
Tip
PBF 30200
Model
2024
Durum
yeni
İlan yeri
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Açıklama
pressing capacity: 200 to
Bending length: 3050 mm
Axes: Y1 / Y2 / X and R-axis
Stroke: 210 mm
Inside distance between side frames: 2550 mm
Gap in side frame: 250 mm
Daylight: 445 mm
Power concept: hydraulic
rapid speed Y-axis: 100 mm/s
Working speed Y-axis: 7
Retractionspeed Y-axis: 73
Back gauge travel X-axis: 620 (with optional R-axis: 500 mm) mm
Back gauge speed X-axis: 250
Table height: 858 mm
Table width: 104 mm
Oiltank: 150 l
Motor power: 15 kW
Length: 3750 mm
Width: 1390 mm
Height: 2500 mm
Weight: 8160 kg
İlan otomatik olarak çevrildiği için bazı hatalar oluşmuş olabilir.
Bending length: 3050 mm
Axes: Y1 / Y2 / X and R-axis
Stroke: 210 mm
Inside distance between side frames: 2550 mm
Gap in side frame: 250 mm
Daylight: 445 mm
Power concept: hydraulic
rapid speed Y-axis: 100 mm/s
Working speed Y-axis: 7
Retractionspeed Y-axis: 73
Back gauge travel X-axis: 620 (with optional R-axis: 500 mm) mm
Back gauge speed X-axis: 250
Table height: 858 mm
Table width: 104 mm
Oiltank: 150 l
Motor power: 15 kW
Length: 3750 mm
Width: 1390 mm
Height: 2500 mm
Weight: 8160 kg
İlan otomatik olarak çevrildiği için bazı hatalar oluşmuş olabilir.
