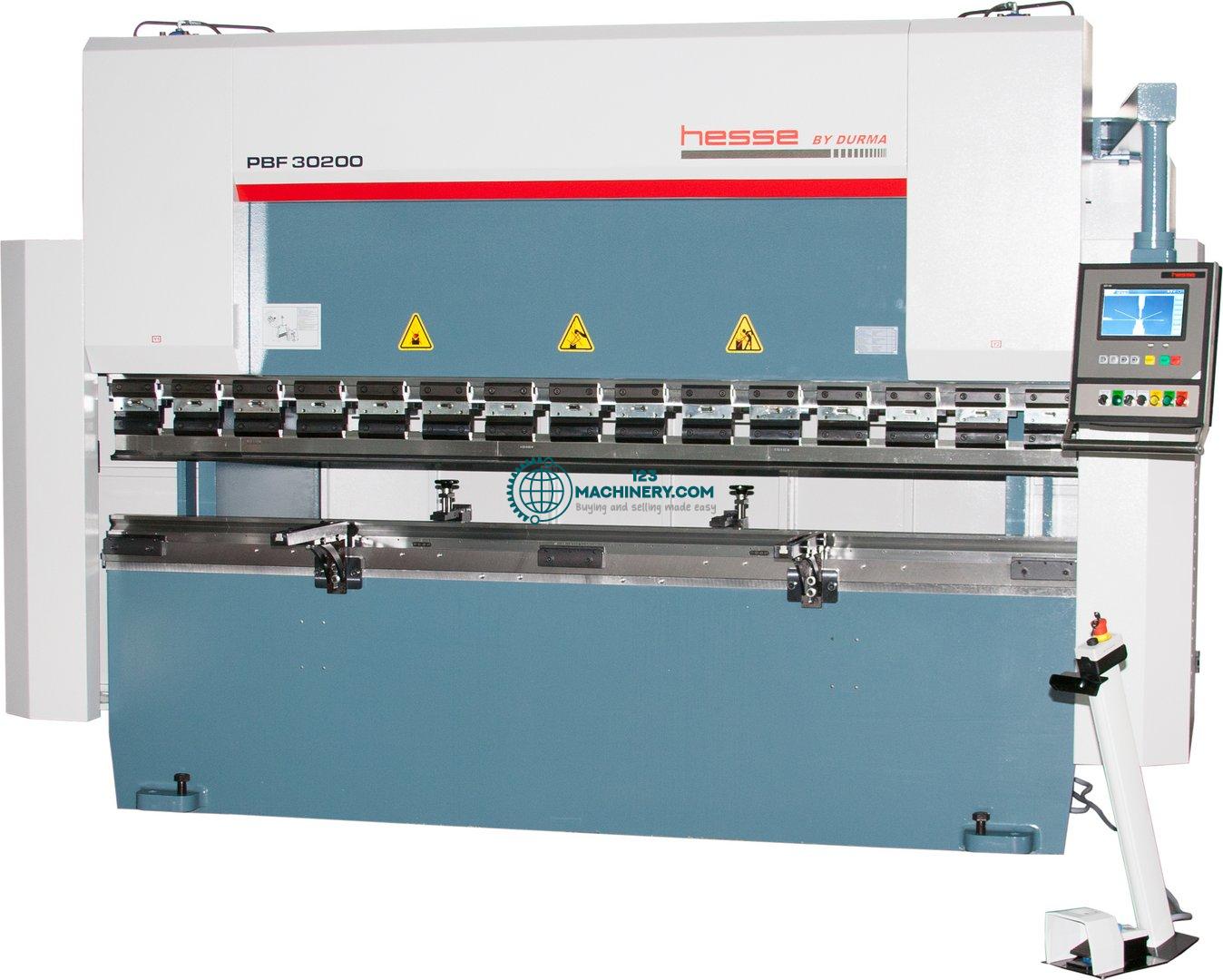

Hydraulic CNC press brake HESSE by DURMA PBF 30200
HESSE by DURMA PBF 30200
5
Advert data
Reference number
8319
Machine designation
Hydraulic CNC press brake HESSE by DURMA PBF 30200
Manufacturer
HESSE by DURMA
Type
PBF 30200
Year of manufacture
2024
Condition
new
Location of the advert
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Description
pressing capacity: 200 to
Bending length: 3050 mm
Axes: Y1 / Y2 / X and R-axis
Stroke: 210 mm
Inside distance between side frames: 2550 mm
Gap in side frame: 250 mm
Daylight: 445 mm
Power concept: hydraulic
rapid speed Y-axis: 100 mm/s
Working speed Y-axis: 7
Retractionspeed Y-axis: 73
Back gauge travel X-axis: 620 (with optional R-axis: 500 mm) mm
Back gauge speed X-axis: 250
Table height: 858 mm
Table width: 104 mm
Oiltank: 150 l
Motor power: 15 kW
Length: 3750 mm
Width: 1390 mm
Height: 2500 mm
Weight: 8160 kg
