Coil weight: 500 kg
Coil outer diameter: 1200 mm
Min. coil inner diameter: 400 mm
Max. Coil inner diameter: 550
Max. coil width: 300 mm
Min. Coil width: 50
Min. coil width for version with pneumatic downholder: 80 mm
Motor: 0.55 kW
Length: 1400 mm
Width: 1200 mm
Height: 1550 mm
Weight: 190 kg

Seriennummer: 966438 Nummer
Grad: 1 Grade
Code: 516-947 Nummer

Lagernummer: 1077-Z01441
Maschinenart: Messwerkzeug und Messmittel
Fabrikat: HOMMELWERKE
Typ: Sternmikrometer
Baujahr: -
Steuerung: konventionell
Lagerort: Dorsten
Ursprungsland: Deutschland
Lieferzeit: sofort
Frachtbasis: ab Standort
Preis: Auf Anfrage

Ref. no.: 18609
Hersteller: AGEMA
Year of construction: 2001

Further information:
Brand / Model: AGEMA SA – AS 320 CNC
Year of Manufacture: 2001
Operating Hours: 12,355
Control System: Heidenhain TNC 416
Origin: Switzerland


Technical Specification

Power Supply: 380 V / 50 Hz, 1.5 kW
Machine Dimensions (LxWxH): 2200 x 2500 x 2300 mm
Weight: 950 kg (machine) + 150 kg (generator)
Dielectric Tank: 200 L, double filter system
Motorized Spindle Head: 0 – 1100 rpm, stepless

Equipment & Features

Electrode holder: E16 collets or common systems (Erowa IST / System 3R)
Hardened linear guides and precision ball screws
Transistorized pulse generator with process monitoring
Automatic copper/steel machining mode
Work area:
X: 300 mm
Y: 200 mm (0.001 mm resolution)
Z: 150 / 250 mm (0.001 mm resolution)
Max. workpiece size: 750 x 500 mm
Max. workpiece weight: 200 kg
Max. electrode weight: 5 kg

Ref. no.: 18608
Hersteller: FANUC
Year of construction: 2013

Further information:
Operating Hours: 29,665
Control System: FANUC 310iS-WA


Technical Specifications

NUMBER OF AXIS: 5
Verfahrwege (Stroke):
X: 370 mm / 900 mm/min
Y: 270 mm / 900 mm/min
Z: 255 mm / 900 mm/min
U / V: ± 60 mm, 450 mm/min
• Positioning accuracy: Glass scales 0.05 µm + Nano-interpolation
• Max. workpiece weight: approx. 500 kg
• Power requirement: 13 kVA (200 V, 50 Hz)
• Machine dimensions (LxWxH): 2120 x 2050 x 2120 mm
• Weight: 1200 kg

Equipment & Features
• Automatic Wire Threading System (AWF)
• 25 kg Wire Loader
• Heat Exchanger / Cooling Unit
• 15” LCD Touchscreen CNC control
• USB & Ethernet connectivity

Saw frame: Pivot frame
Band dimensions: 3120 x 27 x 0,9 mm
Band speed continous: 15 - 101 m/min
Cutting capacity 0° round: 280 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 310 x 240 mm
Cutting capacity 45°: round 230 mm, square 230 mm, rectangular 230x230 mm
Cutting capacity 60°: round 140 mm, square 140 mm, rectangular 140x140 mm
Cutting capacity - 45°: round 200 mm, square 170 mm, rectangular 220x100 mm
Min. rest piece length: 240 mm
Working height: 835 mm
Hydraulic motor: 0.37 kW
Motor: 1 kW
Coolant pump motor: 0.12 kW
Torque feeding carriage motor: 1.95 Nm
Torque motor for automatic bow rotation: 1.95 Nm
Length: 5150 mm
Width: 3200 mm
Height: 1950 mm
Transport dimensions: 5000 x 2200 x 1900 mm
Weight: 2150 kg

Kühlmittel - Filteranlage KNOLL KF 600 / 1500

-CE -Kennung
-Kühlmittelbehälter
-Papierbandfilter
-Steuerung - OP 3
-Kühlmittelpumpen

Abmaße:
LxBxH 2,4x1,2x1,5 Meter / Gewicht 600Kg

Flachschleifmaschine ELB SWB06-VAII

-Schleiflänge 600mm
-Schleifbreite 500mm
-Spindeldrehzahl 1400/2800 U/min
-Z - Zustellung / Automatisch / Manuell
-Y - Zustellung / Automatisch / Manuell
-Schleifbewegung / Automatisch / Manuell
-Magnetgröße 600x500mm
-Automatische Zustellung
-Schleifscheiben - Abzieheinrichtung
-Schleifscheibendurchmesser max. 300mm
-Kühlmitteleinrichtung
-Antriebsleitung ca. 6 KW

Abmaße:
LxBxH 2,6x2,2x2,5 Meter / Gewicht 3500Kg

pressing capacity: 100 to
Tonnage rating point: 4.5 mm
Table length: 700 mm
Table width: 1000 mm
Hole in table: 210 mm
Stroke: 1 - 132 mm
Strokes: 58 1/min
Ram guides: 6
Ram adjustment: 90 mm
Ram hole: 60 mm
Throat depth: 300 mm
Daylight: 445 mm
Motor: 7.5 kW
Length: 1650 mm
Width: 1545 mm
Height: 3011 mm
Weight: 7000 kg

pressing capacity: 40 to
Bending length: 1500 mm
Axes: X and Y axis
Stroke: 100 mm
Daylight: 310 mm
Power concept: hydraulic
Oiltank: 38 l
Motor: 6 kW
Back gauge: 420 mm
Die: 1
Geschwindigkeit: 10 mm/s
Retraction speed: 12 mm/s
Back gauge speed: 40 mm/s
Accuracy press beam: 0.02 +/- mm
Back gauge accuracy: 0.05 +/- mm
Length: 2000 mm
Width: 950 mm
Height: 1900 mm
Weight: 1800 kg

Saw frame: Double column
Band dimensions: 5200x41x1,3 mm
Band speed continous: 20-100 m/min
Cutting capacity 0° round: 460 mm
Cutting capacity 0° square: 460 mm
Cutting capacity 0° flat: 650x460 mm
Cutting capacity 45°: rund 380 mm, quadrat 380 mm, rechteck 380 x 460 mm
Working height: 590 mm
Hydraulic motor: 0.55 kW
Motor: 4 kW
Coolant pump motor: 0.12 kW
Length: 3100 mm
Width: 1000 mm
Height: 1800 mm
Weight: 1520 kg

Saw frame: Double column
Band dimensions: 5400x41x1,3 mm
Band speed continous: 20-100 m/min
Cutting capacity 0° round: 450 mm
Cutting capacity 0° square: 425 mm
Cutting capacity 0° flat: 560x425 mm
Cutting capacity 45°: rund 430 mm, quadrat 425 mm, rechteck 430 x 425 mm
Cutting capacity 60°: rund 320 mm, quadrat 290 mm, rechteck 425 x 260 mm
Working height: 690 mm
Hydraulic motor: 0.55 kW
Motor: 4 kW
Coolant pump motor: 0.12 kW
Length: 3090 mm
Width: 1200 mm
Height: 1940 mm
Weight: 1630 kg

Saw frame: Double column
Band dimensions: 5200x41x1,1 mm
Band speed continous: 20-100 m/min
Cutting capacity 0° round: 440 mm
Cutting capacity 0° flat: 640 x 440 mm
Cutting capacity 45°: rechteck 400 x 440 mm
Cutting capacity 60°: rechteck 250 x 440 mm
Cutting capacity - 45°: rechteck 390 x 440 mm
Working height: 850 mm
Hydraulic motor: 1.1 kW
Motor: 4 kW
Coolant pump motor: 0.12 kW
Length: 3100 mm
Width: 1200 mm
Height: 1910 mm
Weight: 1780 kg

Saw frame: Double column
Band dimensions: 4800x34x1,1 mm
Band speed continous: 20-100 m/min
Cutting capacity 0° round: 380 mm
Cutting capacity 0° square: 380 mm
Cutting capacity 0° flat: 520x380 mm
Cutting capacity 45°: rund 300 mm, quadrat 300 mm, rechteck 300 x 380 mm
Working height: 590 mm
Hydraulic motor: 0.55 kW
Motor: 3 kW
Coolant pump motor: 0.12 kW
Length: 2850 mm
Width: 930 mm
Height: 1660 mm
Weight: 1330 kg

Saw frame: Double column
Band dimensions: 5000x34x1,1 mm
Band speed continous: 20-100 m/min
Cutting capacity 0° round: 360 mm
Cutting capacity 0° square: 360 mm
Cutting capacity 0° flat: 640x360 mm
Cutting capacity 45°: rechteck 390 x 360 mm
Cutting capacity 60°: rechteck 250 x 360 mm
Cutting capacity - 45°: rechteck 390 x 360 mm
Working height: 800 mm
Hydraulic motor: 1.1 kW
Motor: 3 kW
Coolant pump motor: 0.12 kW
Length: 3000 mm
Width: 1850 mm
Height: 2000 mm
Weight: 1950 kg

Saw frame: Pivot frame
Band dimensions: 4160x34x1,1 mm
Band speed continous: 20-100 m/min
Cutting capacity 0° round: 320 mm
Cutting capacity 0° square: 320 mm
Cutting capacity 0° flat: 610x320 mm
Cutting capacity 30°: rund 260 mm, quadrat 225 mm, rechteck 280 x 200 mm
Cutting capacity 45°: rund 320 mm, quadrat 320 mm, rechteck 355 x 320 mm
Cutting capacity 60°: rund 320 mm, quadrat 320 mm, rechteck 510 x 320 mm
Working height: 740 mm
Hydraulic motor: 0.37 kW
Motor: 2.2 kW
Coolant pump motor: 0.12 kW
Cutting capacity 75°: rund 320 mm, quadrat 320 mm, rechteck 580 x 320 mm
Length: 2100 mm
Width: 1200 mm
Height: 1350 mm
Weight: 1150 kg

Saw frame: Pivot frame
Band dimensions: 2730x27x0,9 mm
Band speed: 35/70 m/min
Cutting capacity 0° round: 230 mm
Cutting capacity 0° square: 230 mm
Cutting capacity 0° flat: 320x130 mm
Cutting capacity 45°: rund 210 mm, quadrat 180 mm, rechteck 230 x 160 mm
Cutting capacity 60°: rund 120 mm, quadrat 100 mm, rechteck 120 x 100 mm
Cutting capacity - 45°: rund 180 mm, quadrat 150 mm, rechteck 230 x 100 mm
Working height: 760 mm
Hydraulic motor: 0.37 kW
Motor: 1.3 kW
Coolant pump motor: 0.12 kW
Length: 1350 mm
Width: 700 mm
Height: 1300 mm
Weight: 430 kg

Punching power: 35 ton
Throat depth: 60 mm
Max. hole diameter: 27 mm
Max. oblong hole: 25x18 mm
Punching time: 5 s
Max. sheet thickness - mild steel: 13 mm
Working pressure: 700 bar
Length: 379 mm
Width: 148 mm
Height: 335 mm
Weight: 20 kg

Punching power: 110 ton
Max. diameter at sheet thickness (mild steel): 4-30 mm

Punching power: 50 ton
Throat depth: 130 mm
Max. diameter at sheet thickness (mild steel): 13/27 mm
Max. number of strokes at 20 mm stroke: 23 1/min
Motor: 3 kW
Length: 1100 mm
Width: 900 mm
Height: 1550 mm
Weight: 355 kg

Punching power: 110 ton
Throat depth: 500 mm
Max. diameter at sheet thickness (mild steel): 40x20 mm
Max. number of strokes at 20 mm stroke: 28 1/min
Motor: 9 kW
Length: 2080 mm
Width: 1300 mm
Height: 2050 mm
Weight: 3150 kg

Punching power: 80 ton
Throat depth: 750 mm
Max. diameter at sheet thickness (mild steel): 40x14 mm
Max. number of strokes at 20 mm stroke: 40 1/min
Motor: 9 kW
Length: 1700 mm
Width: 1300 mm
Height: 2050 mm
Weight: 1715 kg

Punching power: 80 ton
Throat depth: 510 mm
Max. diameter at sheet thickness (mild steel): 40x14 mm
Max. number of strokes at 20 mm stroke: 40 1/min
Motor: 9 kW
Length: 1700 mm
Width: 1300 mm
Height: 2050 mm
Weight: 1715 kg

Punching power: 55 ton
Throat depth: 750 mm
Max. diameter at sheet thickness (mild steel): 40x14 mm
Max. number of strokes at 20 mm stroke: 37 1/min
Motor: 5 kW
Length: 1930 mm
Width: 1200 mm
Height: 1800 mm
Weight: 1885 kg

Coil weight: 4000 kg
Coil outer diameter: 1300 mm
Min. coil inner diameter: 450 - 550 mm
Max. coil width: 600 mm
Min. Coil width: 50
Min. coil width for version with pneumatic downholder: 80 mm

Coil weight: 2500 kg
Coil outer diameter: 1300 mm
Min. coil inner diameter: 450 mm
Max. Coil inner diameter: 550
Max. coil width: 600 mm
Min. Coil width: 50
Min. coil width for version with pneumatic downholder: 80 mm

Coil weight: 2500 kg
Coil outer diameter: 1300 mm
Min. coil inner diameter: 450 - 550 mm
Max. coil width: 400 mm
Min. Coil width: 50
Min. coil width for version with pneumatic downholder: 80 mm

Coil weight: 1250 kg
Coil outer diameter: 1300 mm
Min. coil inner diameter: 450 - 550 mm
Max. coil width: 400 mm
Min. Coil width: 50
Min. coil width for version with pneumatic downholder: 80 mm

Sheet Thickness - mild steel: 0.4 - 2 mm
Max. sheet width: 600 mm
Max. cross-section: 600x2 mm
Feed roll diameter: 80 mm
Feeding speed: 75 m/min
Feeding acceleration: 10 m/s²
Motor torque: 10 Nm

Sheet Thickness - mild steel: 0.4 - 3 mm
Max. sheet width: 400 mm
Max. cross-section: 400x3 mm
Feed roll diameter: 80 mm
Feeding speed: 75 m/min
Feeding acceleration: 10 m/s²
Motor torque: 10 Nm

Sheet Thickness - mild steel: 0.4 - 3 mm
Max. sheet width: 300 mm
Max. cross-section: 300x3 mm
Feed roll diameter: 80 mm
Feeding speed: 75 m/min
Feeding acceleration: 10 m/s²
Motor torque: 10 Nm

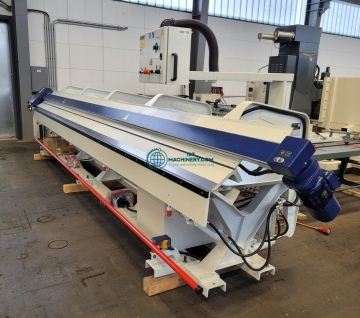

Bending length: 350 - 2800 mm
Max. sheet length: 3050 mm
Max. sheet width: 1524 mm
Min. bendable width: 150 mm
Max. bending height: 254 mm
Max. bending depth: 50 mm
Max. sheet rotation area: 3300 mm
Bending force: 500 to
Pressure force: 1000 to
Sheet thickness (420 N/mm²): 3.2 mm
Sheet thickness (600 N/mm²): 2.2 mm
Sheet thickness (260 N/mm²): 4 mm
Min. sheet thickness - mild steel: 0.5 mm
Max. bending angle: 135 °

Suitable for plates: 1
Max. bevel width: 66 mm
Bevel angle: 60 °
Spindle speed (load-free): 300-800 rpm
Feed speed: 0 - 1,2 mm/min
Max. cutting depth: 6 mm
Motor: 6.5 kW
Length: 1179 mm
Width: 853 mm
Height: 1524 mm
Weight: 320 kg

Suitable for plates: 1
Max. bevel width: 35 mm
Bevel angle: 60 °
Spindle speed (load-free): 2780 rpm
Plate thickness: 35 mm
Feed speed: 250 - 500 mm/min
Motor: 1.6 kW
Weight: 54 kg

Suitable for plates: 1
Suitable for tubes: 1
Max. bevel width: 30 mm
Bevel angle: 60 °
Spindle speed (load-free): 500-2920 rpm
Bevel of tube outer edge: 50 - 150 m/min
Feed speed: 3 mm/min
Work piece height: 100 mm
Motor: 7.5 kW
Length: 1216 mm
Width: 1275 mm
Weight: 850 kg

Suitable for plates: 1
Suitable for tubes: 1
Max. bevel width: 21 mm
Bevel angle: 60 °
Spindle speed (load-free): 2740-3290 rpm
Motor: 2.2 kW
Weight: 21 kg

Suitable for plates: 1
Suitable for tubes: 1
Max. bevel width: 21 mm
Bevel angle: 60 °
Spindle speed (load-free): 1300-1560 rpm
Bevel of tube outer edge: 300 m/min
Motor: 1.6 kW
Length: 441 mm
Width: 366 mm
Height: 339 mm
Weight: 23 kg

Suitable for plates: 1
Suitable for tubes: 1
Max. bevel width: 21 mm
Bevel angle: 60 °
Spindle speed (load-free): 2820 rpm
Motor: 1.1 kW
Weight: 20 kg

Suitable for plates: 1
Suitable for tubes: 1
Max. bevel width: 18 mm
Bevel angle: 60 °
Bevel radius: 2-5 mm
Spindle speed (load-free): 1800-5850 rpm
Min. diameter of bevel: 40 mm
Motor: 2.2 kW
Length: 585 mm
Width: 156 mm
Height: 238 mm
Weight: 10 kg

Working width: 1300
Sheet thickness range - mild steel: 150 mm
Brush diameter: 150 mm
Vacuum area: 250x350 mm
Table height: 945 mm
Motor: 0.75 kW
Length: 1400 mm
Width: 1000 mm
Height: 1450 mm
Weight: 300 kg

Cutting length: 1530 mm
Max. thickness - mild steel: 16 mm
Max. thickness - stainless steel: 12 mm
Strokes: 7 1/min
Cutting angle: 3 °
Number of downholders: 8 pcs.
Back gauge: 500 mm
Motor power: 22.5 kW
Oiltank: 250 l
Table height: 950 mm
Length: 2350 mm
Width: 1400 mm
Height: 2000 mm
Weight: 5200 kg

Cutting length: 1280 mm
Max. thickness - mild steel: 16 mm
Max. thickness - stainless steel: 12 mm
Strokes: 8 1/min
Cutting angle: 3 °
Number of downholders: 7 pcs.
Back gauge: 500 mm
Motor power: 22.5 kW
Oiltank: 250 l
Table height: 950 mm
Length: 2100 mm
Width: 1400 mm
Height: 2000 mm
Weight: 5000 kg

Cutting length: 1530 mm
Max. thickness - mild steel: 12 mm
Max. thickness - stainless steel: 9 mm
Strokes: 8 1/min
Cutting angle: 3 °
Number of downholders: 8 pcs.
Back gauge: 500 mm
Motor power: 15 kW
Oiltank: 180 l
Table height: 950 mm
Length: 2200 mm
Width: 1200 mm
Height: 1800 mm
Weight: 3400 kg

Cutting length: 1280 mm
Max. thickness - mild steel: 12 mm
Max. thickness - stainless steel: 9 mm
Strokes: 9 1/min
Cutting angle: 3 °
Number of downholders: 7 pcs.
Back gauge: 500 mm
Motor power: 15 kW
Oiltank: 180 l
Table height: 950 mm
Length: 1950 mm
Width: 1200 mm
Height: 1800 mm
Weight: 3200 kg

Cutting length: 1030 mm
Max. thickness - mild steel: 10 mm
Max. thickness - stainless steel: 6 mm
Strokes: 10 1/min
Cutting angle: 3 °
Number of downholders: 7 pcs.
Back gauge: 5000 mm
Motor power: 11 kW
Oiltank: 100 l
Table height: 900 mm
Length: 1550 mm
Width: 1150 mm
Height: 1600 mm
Weight: 1900 kg

Cutting length: 1030 mm
Max. thickness - mild steel: 8 mm
Max. thickness - stainless steel: 5 mm
Strokes: 14 1/min
Cutting angle: 3 °
Number of downholders: 7 pcs.
Back gauge: 500 mm
Motor power: 7.5 kW
Oiltank: 100 l
Table height: 900 mm
Length: 1550 mm
Width: 1150 mm
Height: 1600 mm
Weight: 1800 kg

Cutting length: 1030 mm
Max. thickness - mild steel: 6 mm
Max. thickness - stainless steel: 4 mm
Strokes: 14 1/min
Cutting angle: 3 °
Number of downholders: 7 pcs.
Back gauge: 500 mm
Motor power: 5.5 kW
Oiltank: 100 l
Table height: 900 mm
Length: 1550 mm
Width: 1150 mm
Height: 1600 mm
Weight: 1700 kg

Cutting length: 6080 mm
Max. thickness - mild steel: 13 mm
Max. thickness - stainless steel: 10 mm
Gap in side frame: 350 mm
Strokes: 10 1/min
Cutting angle: 0,5 - 2,5 °
Number of downholders: 29 pcs.
Pressure of downholder: 58 to
Back gauge: 1000 mm
Back gauge speed: 200 mm/s
Motor power: 37 kW
Oiltank: 400 l
Support arms: 6 pcs.
Table height: 950 mm
Table width: 650 mm
Table length: 6375 mm
Length: 7400 mm
Width: 2200 mm
Total width with support arm und protection fence: 3700 mm
Height: 2900 mm
Weight: 33820 kg

Cutting length: 6080 mm
Max. thickness - mild steel: 6 mm
Max. thickness - stainless steel: 4 mm
Gap in side frame: 350 mm
Strokes: 10 1/min
Cutting angle: 0,5 - 2 °
Number of downholders: 29 pcs.
Pressure of downholder: 20 to
Back gauge: 1000 mm
Back gauge speed: 200 mm/s
Motor power: 22 kW
Oiltank: 200 l
Support arms: 5 pcs.
Table height: 900 mm
Table width: 630 mm
Table length: 6370 mm
Length: 7300 mm
Width: 2150 mm
Total width with support arm und protection fence: 3400 mm
Height: 2750 mm
Weight: 25500 kg

Cutting length: 3080 mm
Max. thickness - mild steel: 6 mm
Max. thickness - stainless steel: 4 mm
Gap in side frame: 350 mm
Strokes: 20 1/min
Cutting angle: 0,5 - 2 °
Number of downholders: 16 pcs.
Pressure of downholder: 20 to
Back gauge: 1000 mm
Back gauge speed: 200 mm/s
Motor power: 11 kW
Oiltank: 125 l
Support arms: 3 pcs.
Table height: 820 mm
Table width: 494 mm
Table length: 3280 mm
Length: 4100 mm
Width: 2050 mm
Total width with support arm und protection fence: 3650 mm
Height: 1950 mm
Weight: 7980 kg
