Advert data
Reference number
1077-02454

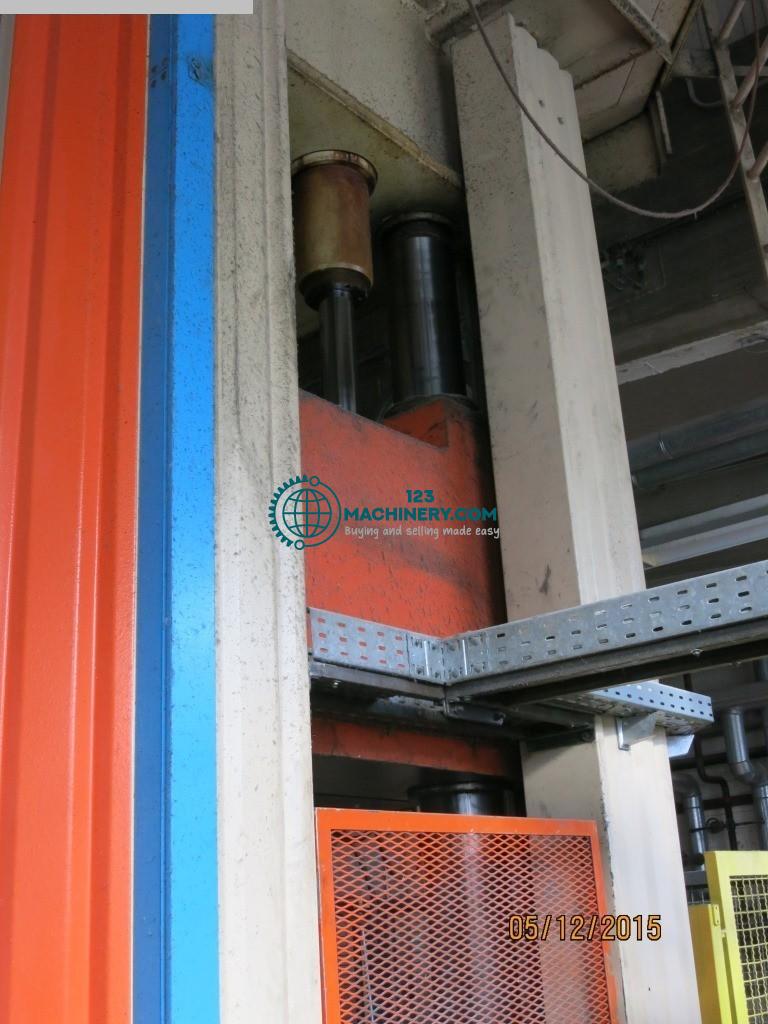

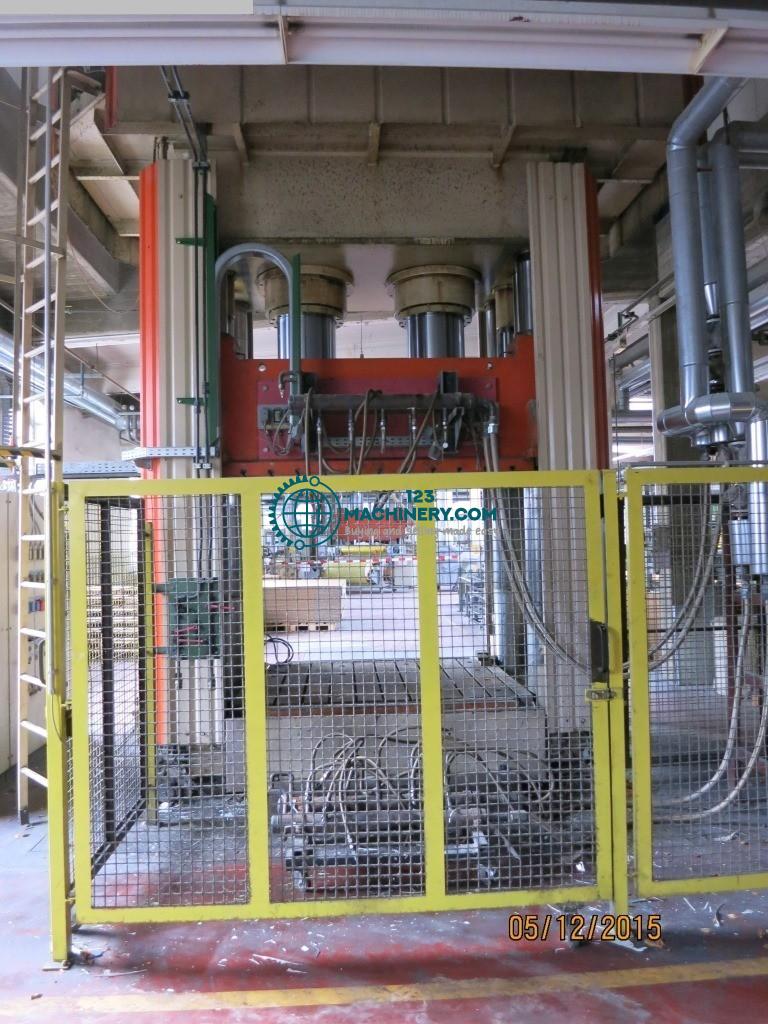

Machine designation

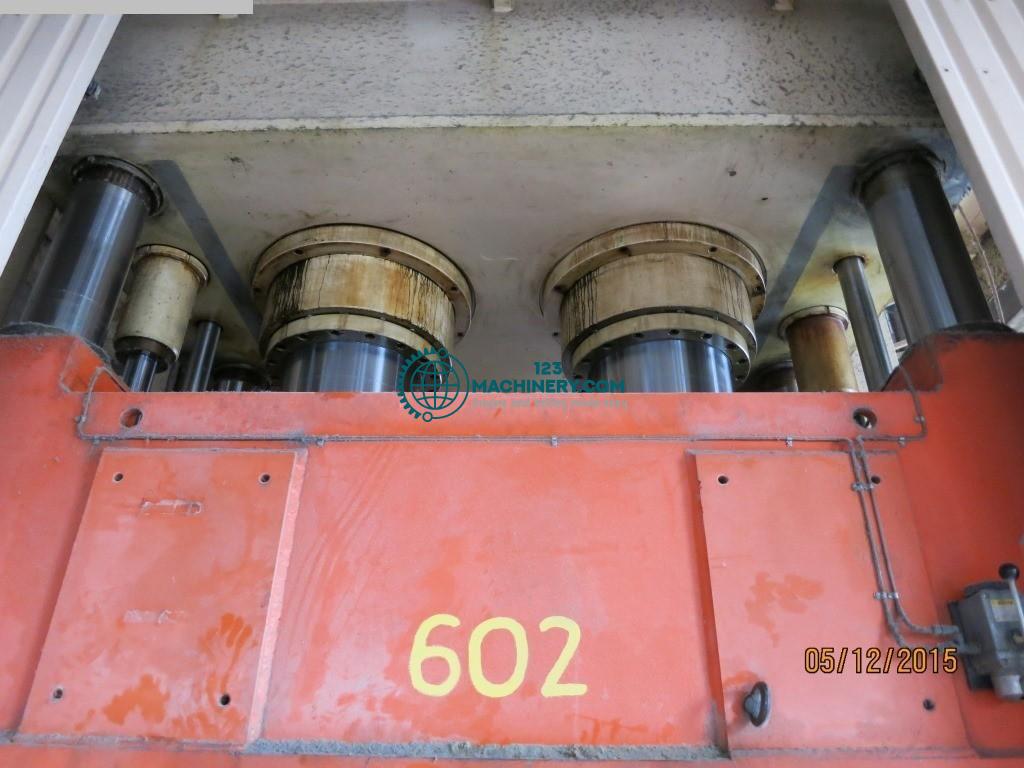

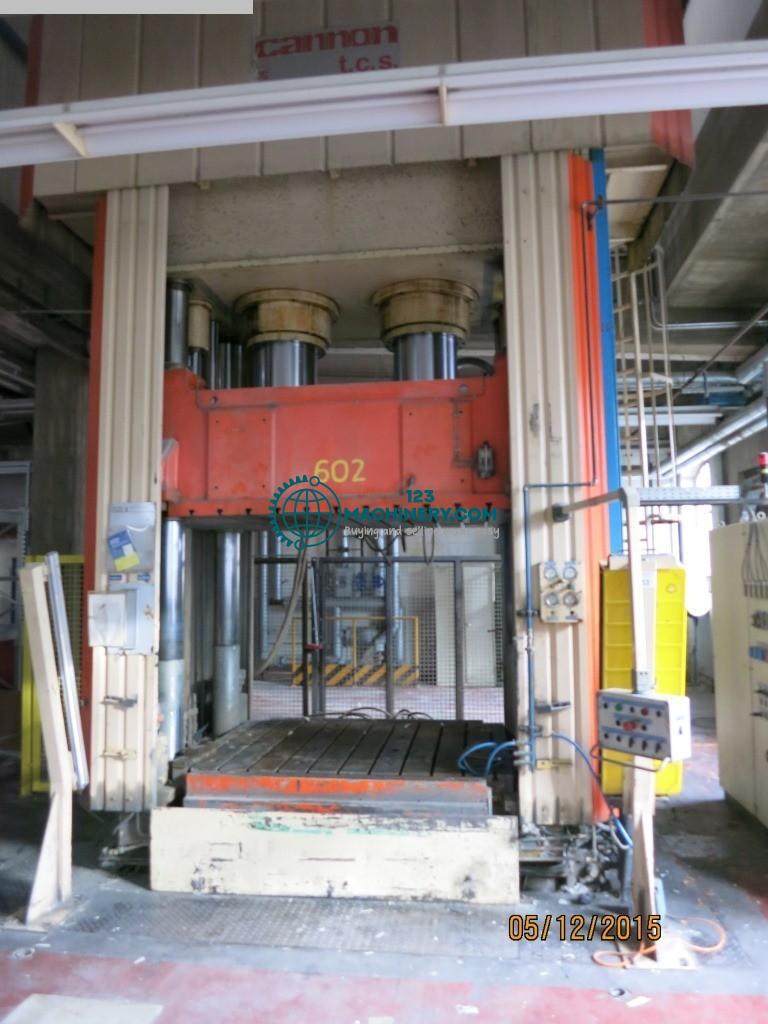

Presse über 5.000 KN
Manufacturer
CARONNO
Type
POC 650-1
Year of manufacture
1991
Condition
used
Location of the advert
Hüttenstrasse 1, 46284 Dorsten, Germany
Description
Druck: 650 t
Durchgangsbreite: 920 mm
Hub: 1500 mm

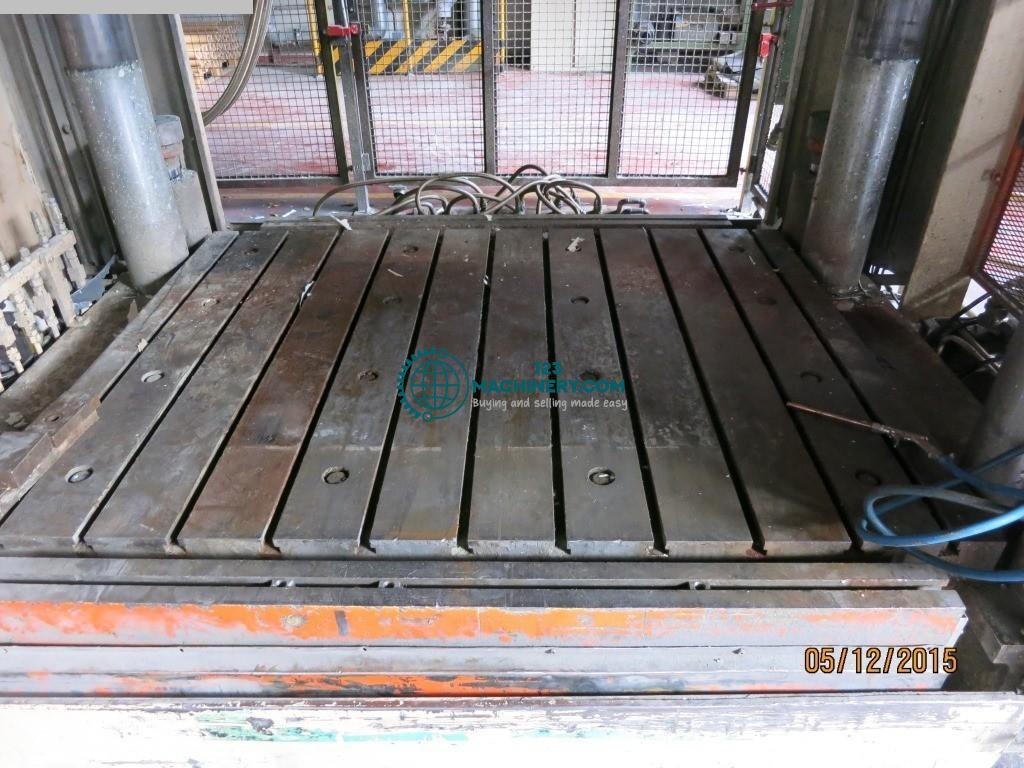

Tischfläche: 2000x1500 mm

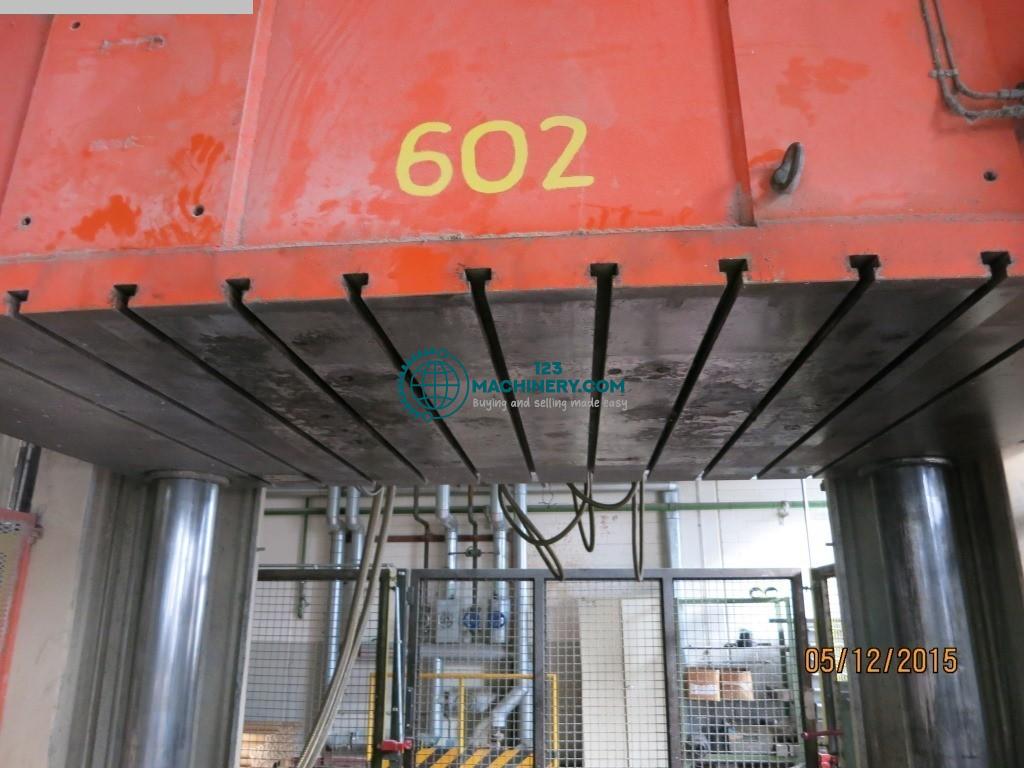

Stößelfläche: 2000x1500 mm
Einbauhöhe: 2100 mm
Hydraulik: 250 bar
Schließgeschwindigkeit: 500 mm/sec
Preßgeschwindigkeit: 0,5-10,4 mm/sec
Loch im Stößel Durchmesser/Tiefe: mm
Öffnungsgeschwindigkeit: 250 mm/250
Gesamtleistungsbedarf: kW
Maschinengewicht ca.: 47 t
Raumbedarf ca.: m
The advert was translated automatically and some translation errors may have occurred.
Durchgangsbreite: 920 mm
Hub: 1500 mm
Tischfläche: 2000x1500 mm
Stößelfläche: 2000x1500 mm
Einbauhöhe: 2100 mm
Hydraulik: 250 bar
Schließgeschwindigkeit: 500 mm/sec
Preßgeschwindigkeit: 0,5-10,4 mm/sec
Loch im Stößel Durchmesser/Tiefe: mm
Öffnungsgeschwindigkeit: 250 mm/250
Gesamtleistungsbedarf: kW
Maschinengewicht ca.: 47 t
Raumbedarf ca.: m
The advert was translated automatically and some translation errors may have occurred.
