Advert data
Reference number
18565
Machine designation
Used DEMAG 150-610. System NC4
Manufacturer
DEMAG
Type
150-610. System NC4
Year of manufacture
2005
Condition
used
Location of the advert
Schmiedestraße 3, 45527 Hattingen, Germany
Description
Ref. no.: 18565
Manufacturer: DEMAG
Year of construction: 2005
Clamping unit
Clamping force: 150 ton
Opening stroke: 500 mm
Distance between tie bars: 500 x 500 mm
Mould height min.: 250 mm
Opening width: 750 mm
Platen size (h x v): 750 x 750 mm
Injection unit
Screw diameter: 45 mm
Injection volume: 323 cm³
Shot weight: 290 g
Injection pressure: 1973 bar
Measurements and weight
Dimensions: 5.45 x 1.63 x 2.1 m
Machine weight: 7500 kg
Robot
Producer: Wittmann
Type: W721-0231
Year: 2005
Further information:

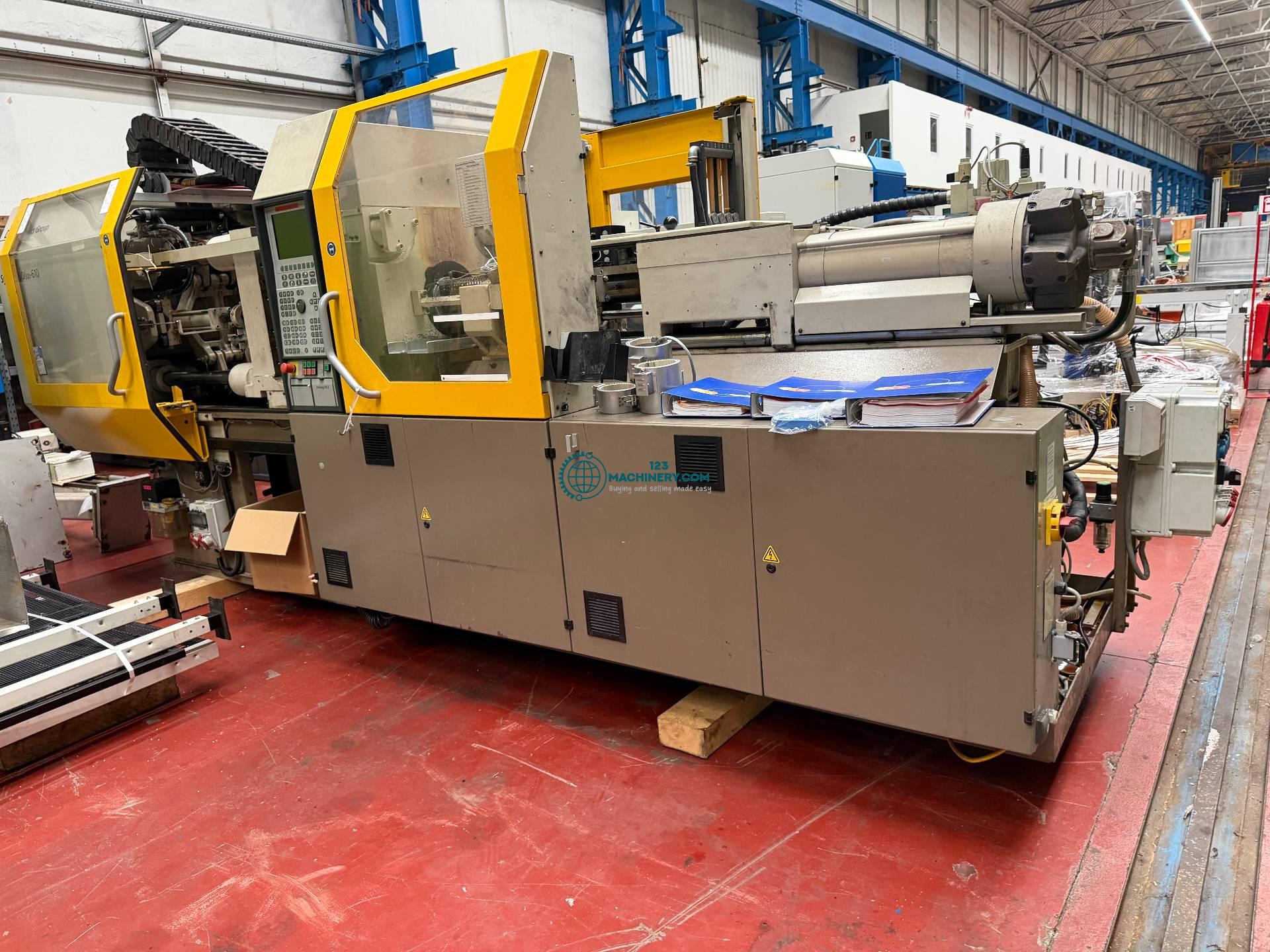

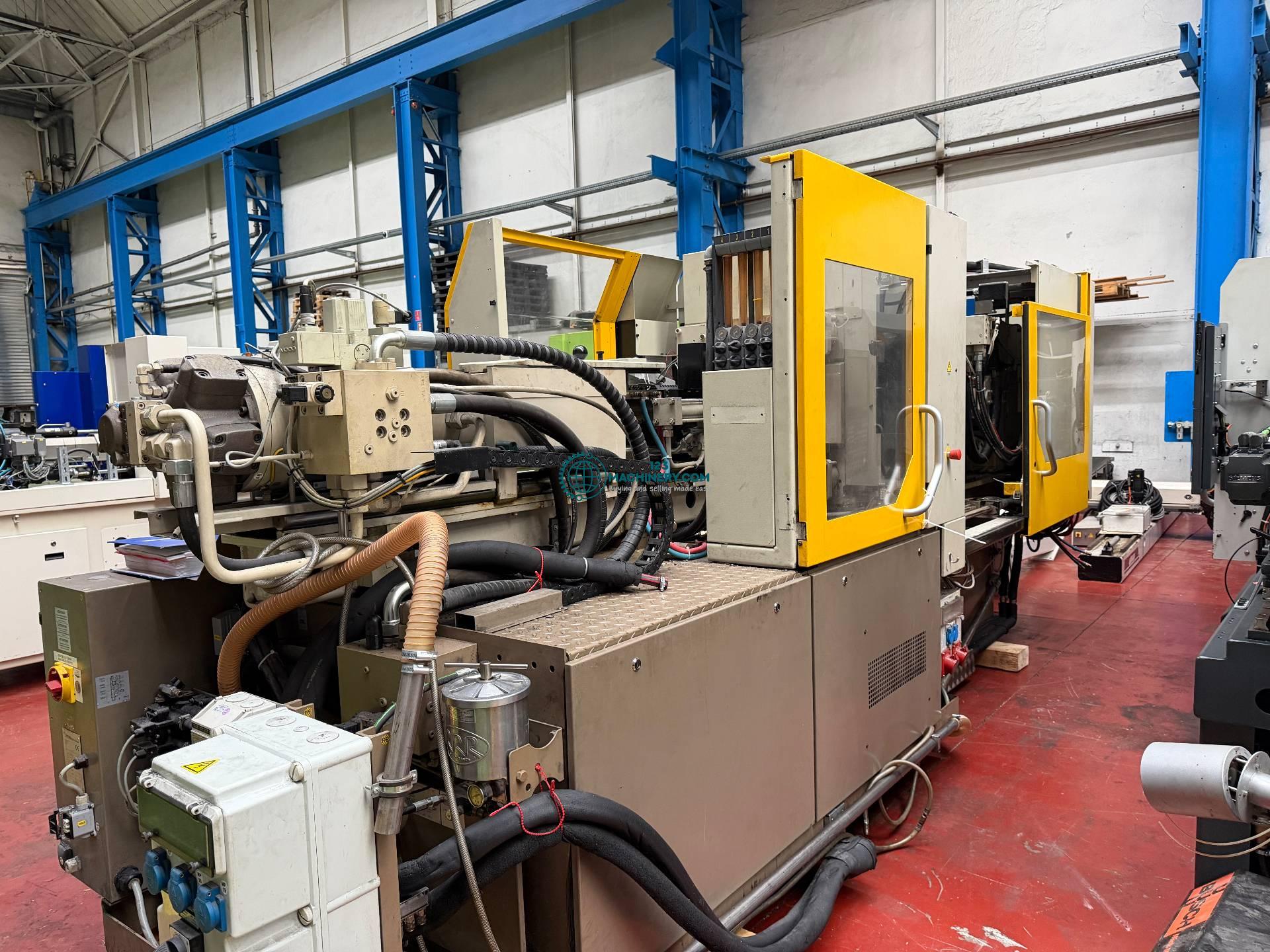

The Demag Ergotech System series hydraulic injection moulding machine is a suitable plastic injection moulding machine for technical plastic parts and automated serial production applications. Thanks to its hydraulic operating principle, the machine offers powerful and stable injection performance, while the Demag NC4 control system ensures precise process control.

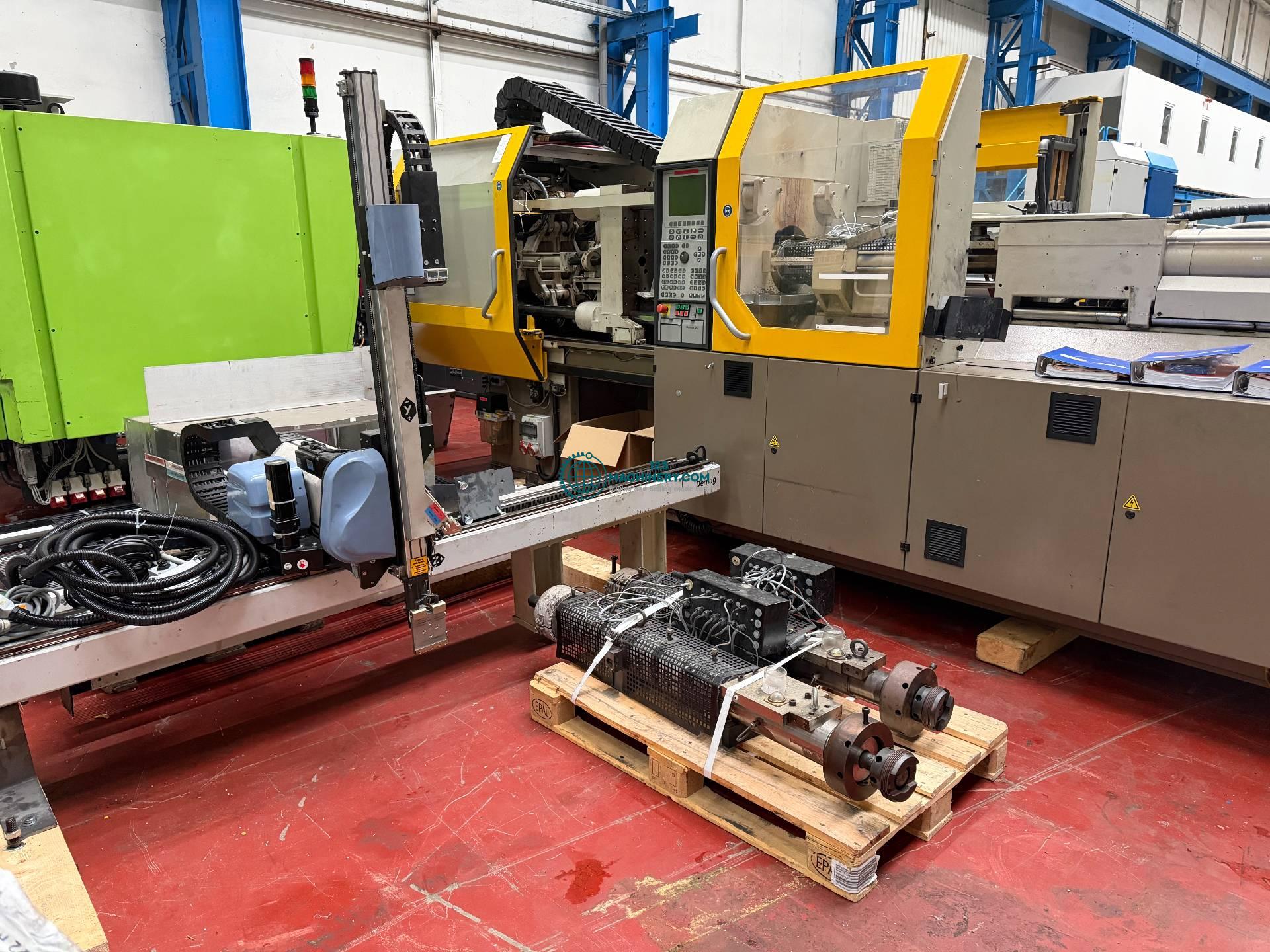

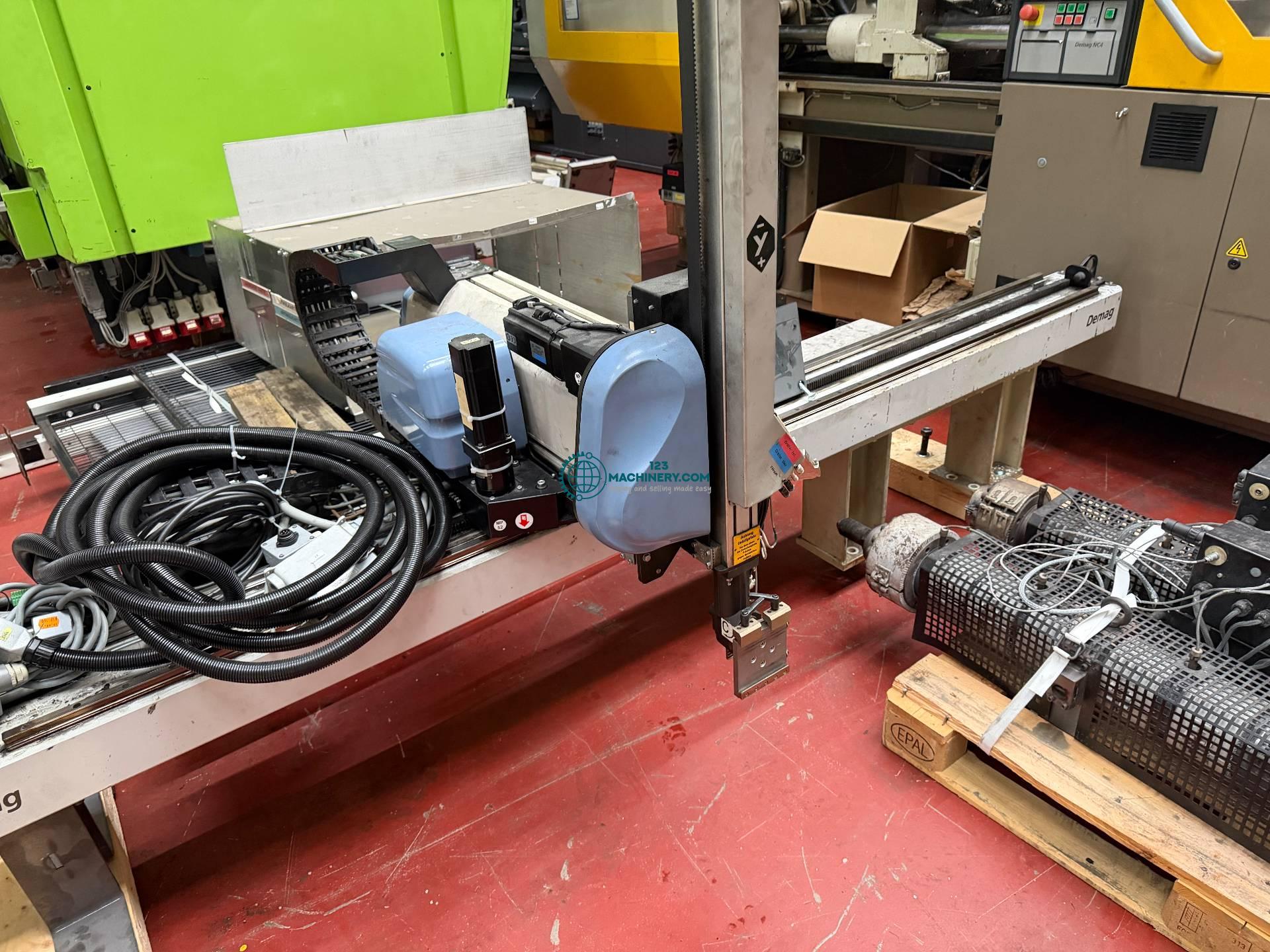

The machine is equipped with a Demag (Wittmann) DR721 linear robot.
Robot specifications:
Year of manufacture: 2005
X-axis: 550 mm
Y-axis: 1000 mm
Z-axis: 2000 mm
The robot system enables fully automatic part removal, conveyor transfer, and automated serial production processes.
In addition, the machine comes with 2 complete spare plasticizing units / injection units (screw and barrel assemblies).
The machine was in running production and operating without problems until dismantling.
