Advert data
Reference number
#A-881
Machine designation

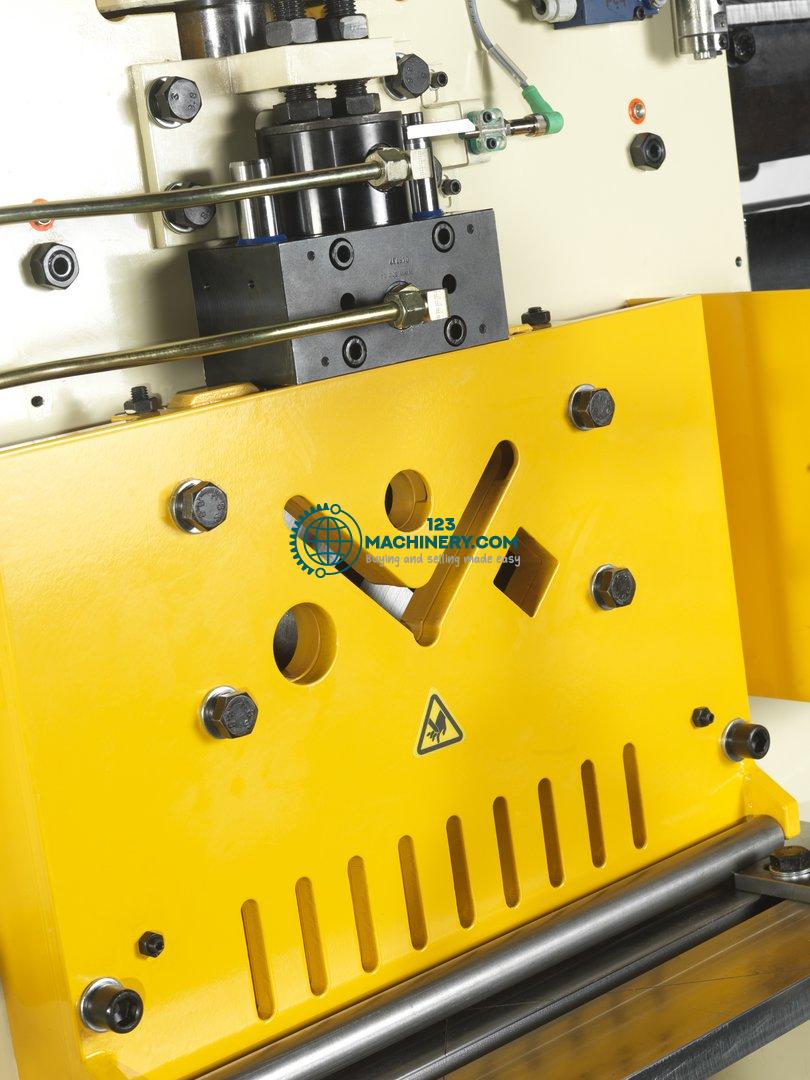

Steelworker GEKA BENDICROP 85 SD
Manufacturer
GEKA
Type
BENDICROP 85 SD
Condition
new
Location of the advert
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Description
Punching power: 85 ton
Throat depth: 500 mm
Number of stations: 5
Max. diameter at sheet thickness (mild steel): 40/15 bzw. 24x24 mm
Flat steel: 450x15 / 450x18 mm
Blade length: 475 mm
Angle steel: 130x130x13 mm
Round / square steel: 45/40 mm
Notcher: 12 mm

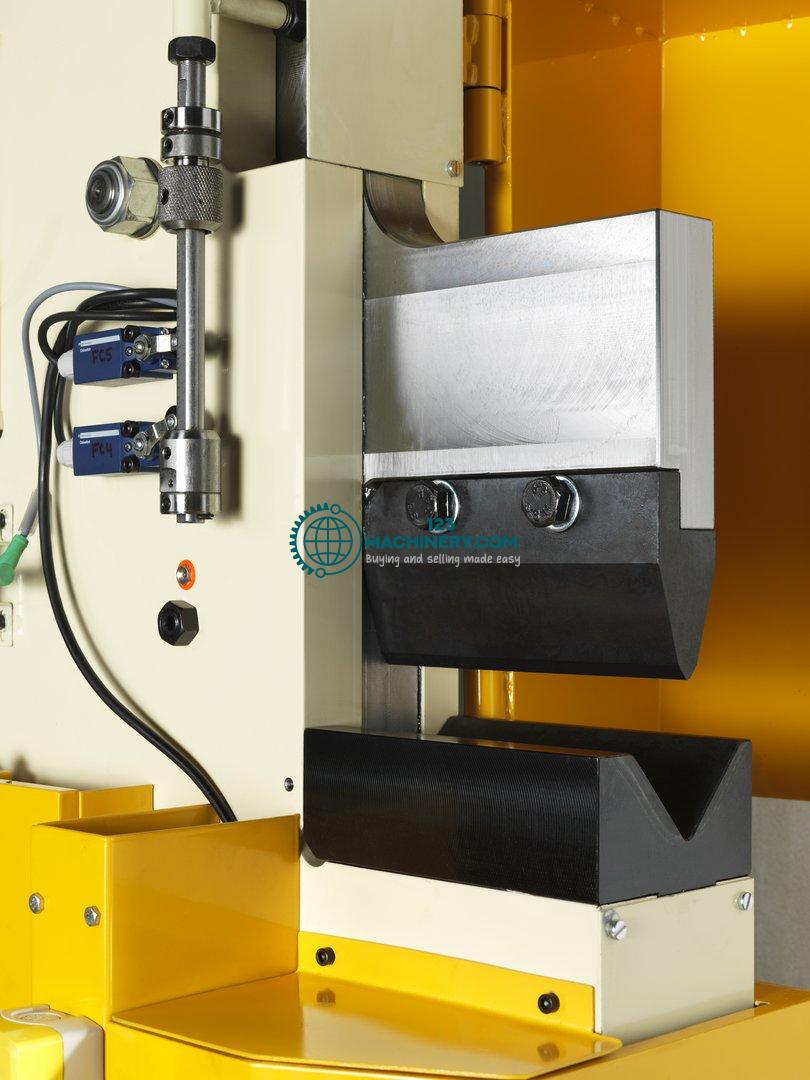

Bending unit: 200x12 mm
Motor: 9 kW
Length: 2300 mm
Width: 1200 mm
Height: 2100 mm
Weight: 2400 kg
Throat depth: 500 mm
Number of stations: 5
Max. diameter at sheet thickness (mild steel): 40/15 bzw. 24x24 mm
Flat steel: 450x15 / 450x18 mm
Blade length: 475 mm
Angle steel: 130x130x13 mm
Round / square steel: 45/40 mm
Notcher: 12 mm
Bending unit: 200x12 mm
Motor: 9 kW
Length: 2300 mm
Width: 1200 mm
Height: 2100 mm
Weight: 2400 kg
