Advert data
Reference number
#A-897
Machine designation

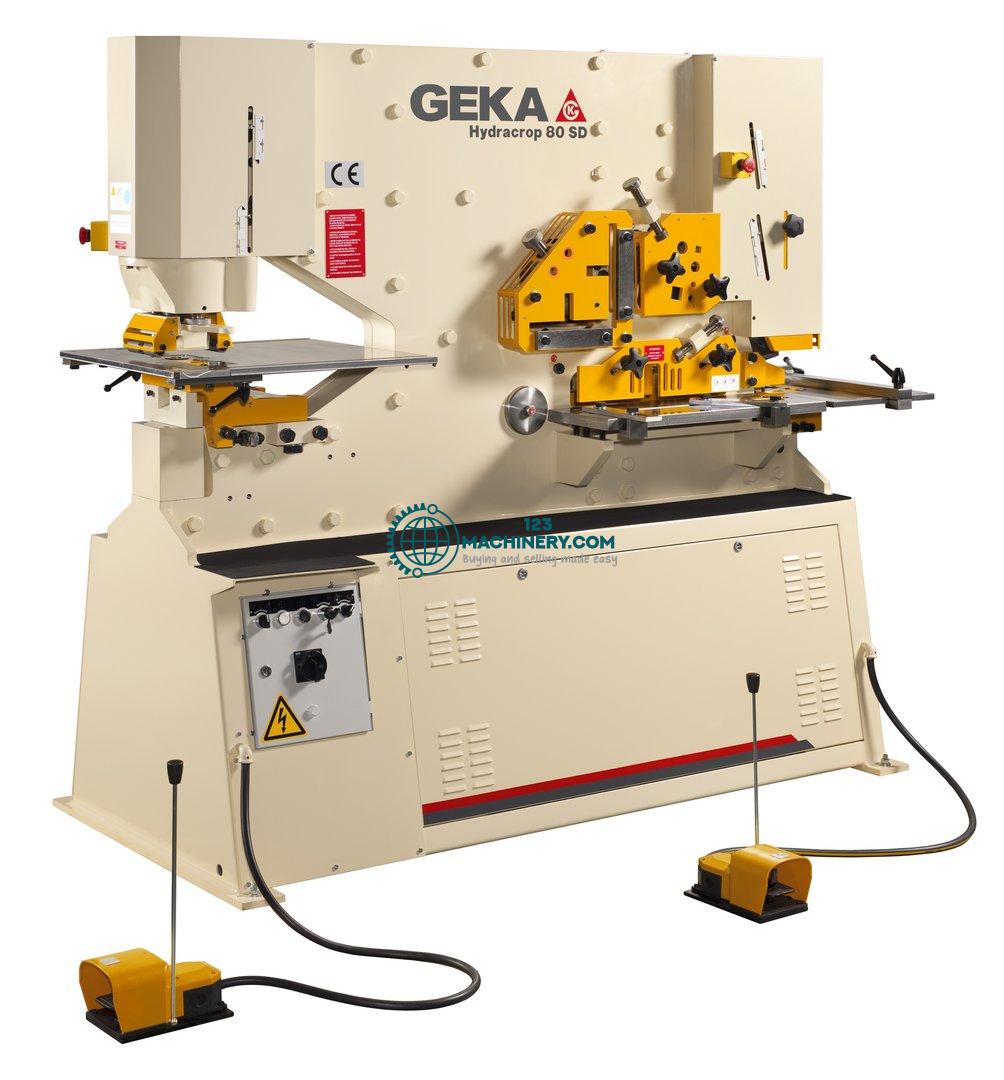

Steelworker GEKA HYD 80 SD
Manufacturer
GEKA
Type
HYD 80 SD
Condition
new
Location of the advert
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Description
Punching power: 80 ton
Throat depth: 500 mm
Number of stations: 5
Max. diameter at sheet thickness (mild steel): 40/14 bzw. 24/24 mm
Stroke: 70 mm
Strokes: 40 1/min
Flat steel: 450x15 / 300x20 mm
Angle steel: 130x130x13 mm
Round / square steel: 45 mm
Notcher: 12x52x90 mm
Motor: 9 kW
Length: 2310 mm
Width: 1200 mm
Height: 2050 mm
Weight: 2400 kg
Throat depth: 500 mm
Number of stations: 5
Max. diameter at sheet thickness (mild steel): 40/14 bzw. 24/24 mm
Stroke: 70 mm
Strokes: 40 1/min
Flat steel: 450x15 / 300x20 mm
Angle steel: 130x130x13 mm
Round / square steel: 45 mm
Notcher: 12x52x90 mm
Motor: 9 kW
Length: 2310 mm
Width: 1200 mm
Height: 2050 mm
Weight: 2400 kg
