Advert data
Reference number
#A-2395
Machine designation

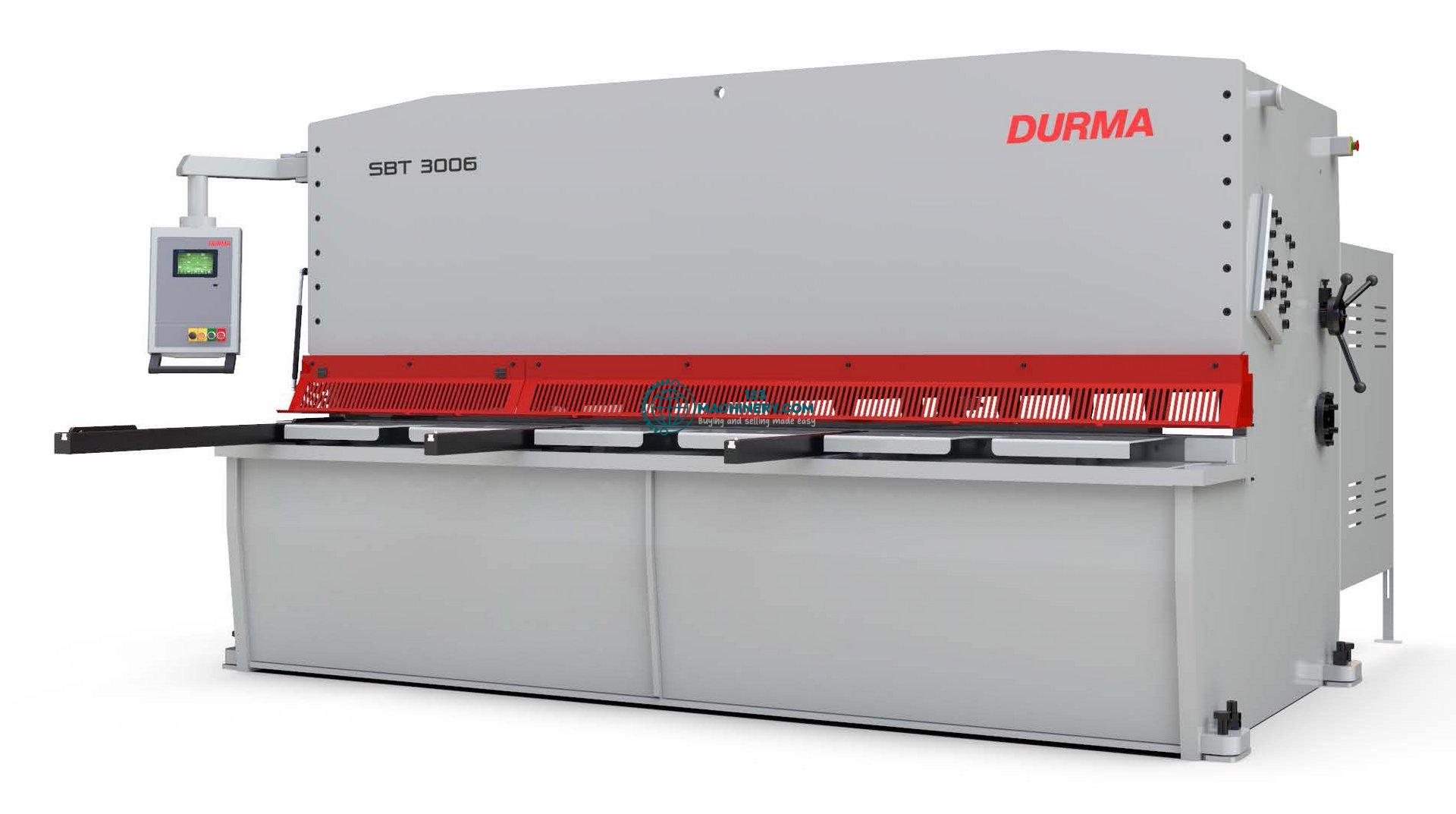

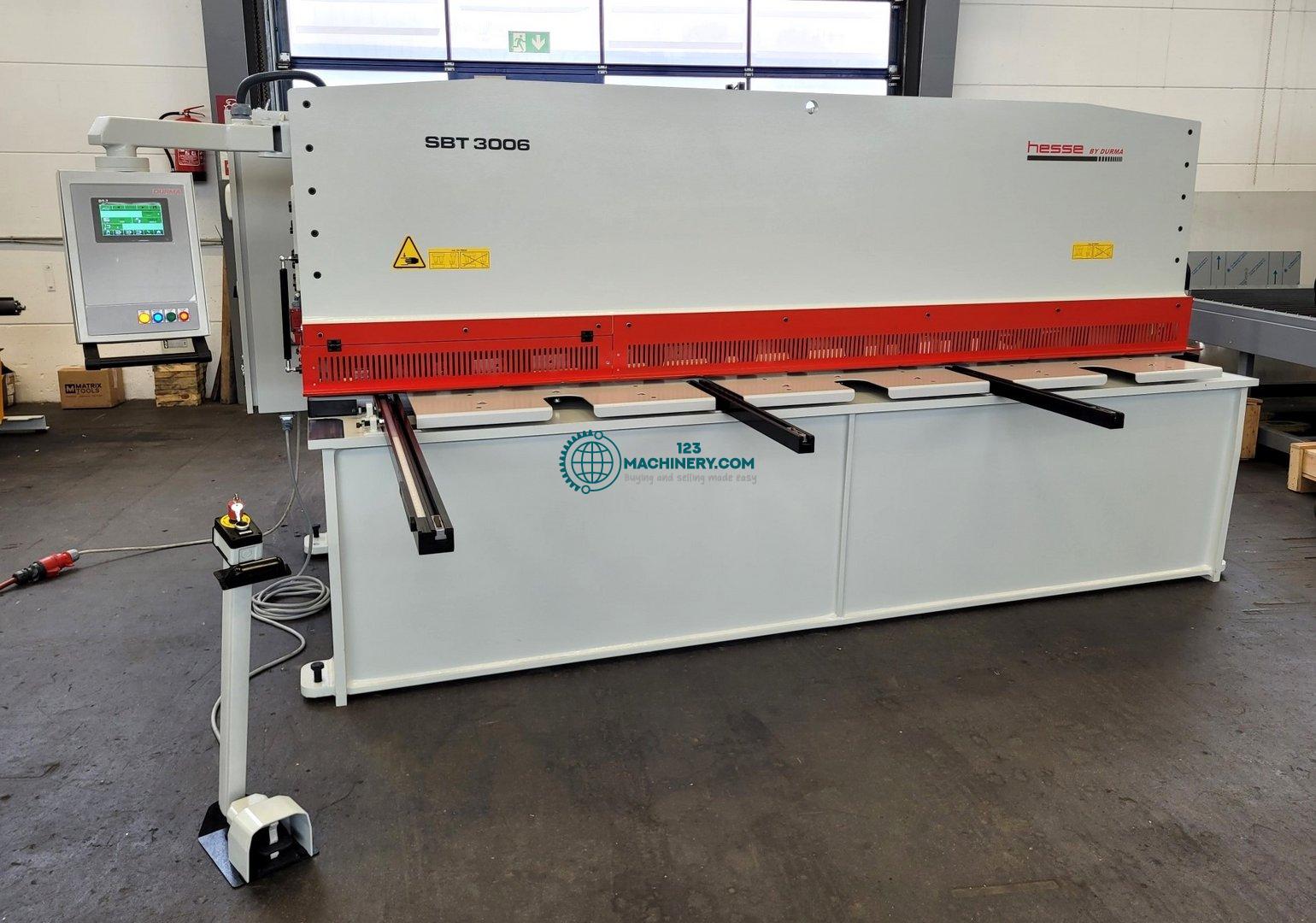

Hydraulic plate shear HESSE by DURMA SBT 3006
Manufacturer
HESSE by DURMA
Type
SBT 3006
Condition
new
Location of the advert
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Description
Cutting length: 3100 mm
Max. thickness - mild steel: 6 mm
Max. thickness - stainless steel: 4 mm
Gap in side frame: 50 mm
Strokes: 15 1/min
Cutting angle: 1.5 °

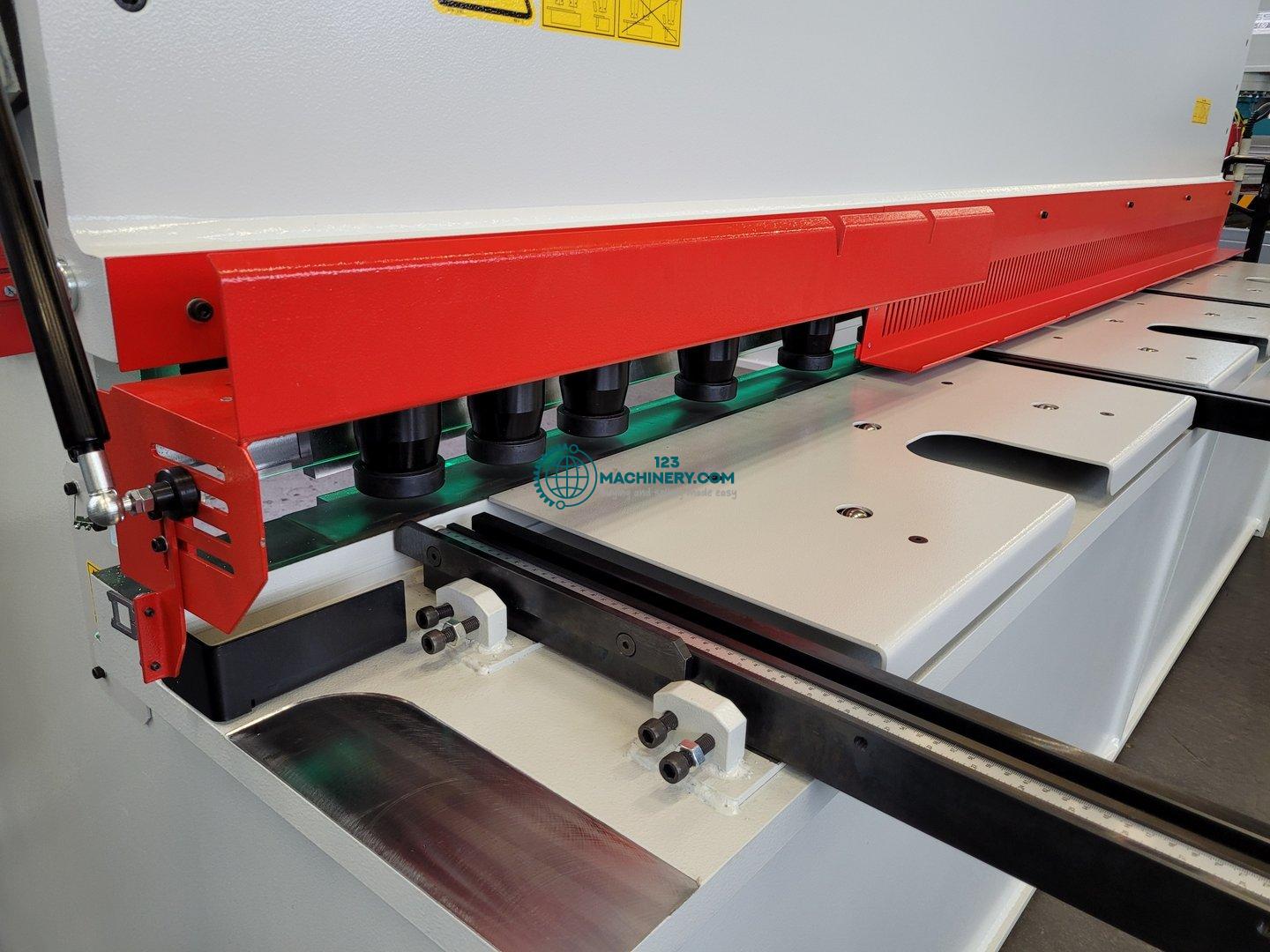

Number of downholders: 16 pcs.
Pressure of downholder: 14 to
Back gauge: 1000 mm
Back gauge speed: 200 mm/s

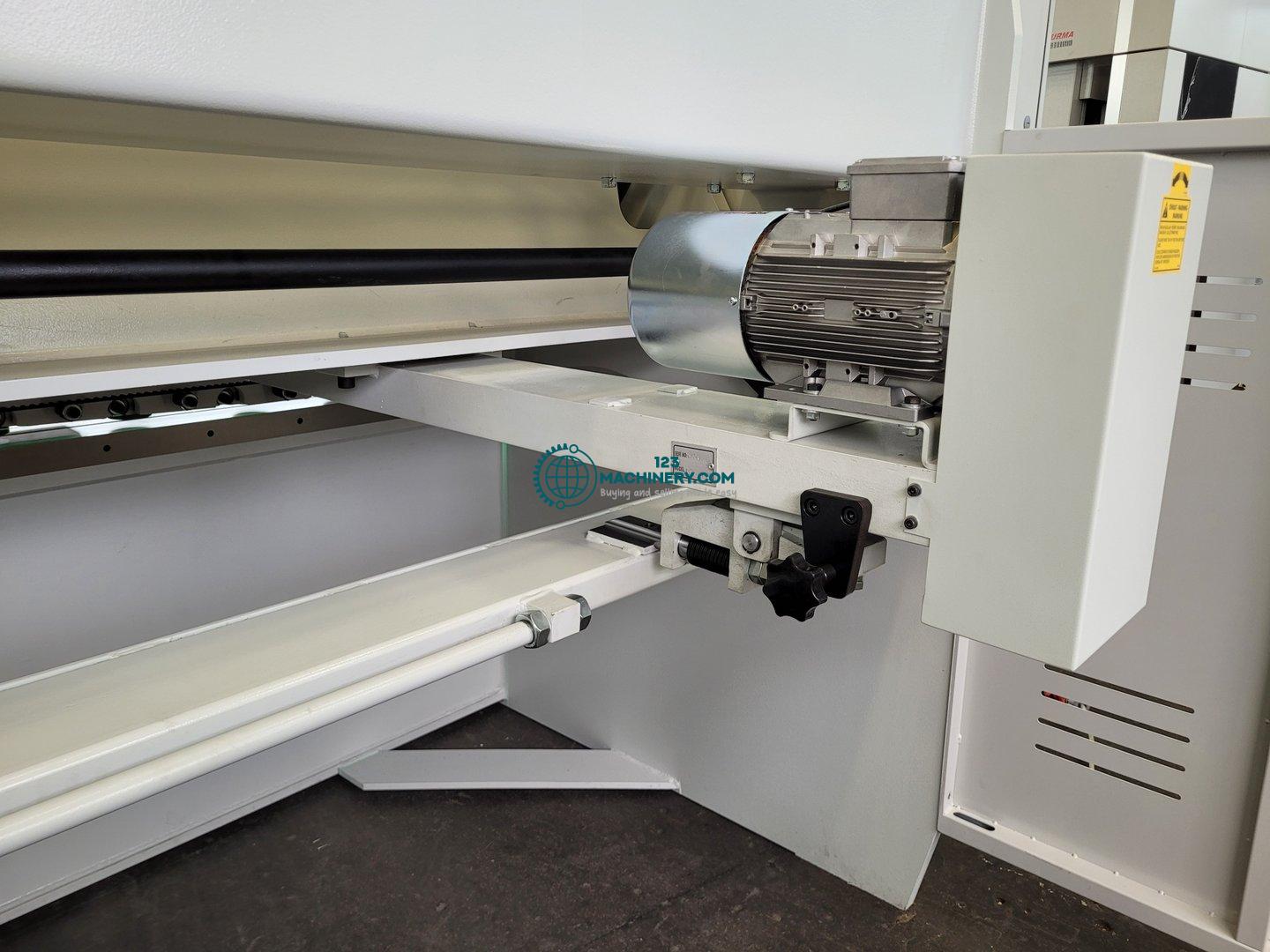

Motor power: 15 kW
Oiltank: 200 l
Support arms: 2 pcs.
Table height: 865 mm
Table width: 500 mm
Table length: 3515 mm
Length: 4110 mm
Width: 2200 mm
Total width with support arm und protection fence: 3700 mm
Height: 2100 mm
Weight: 7300 kg
