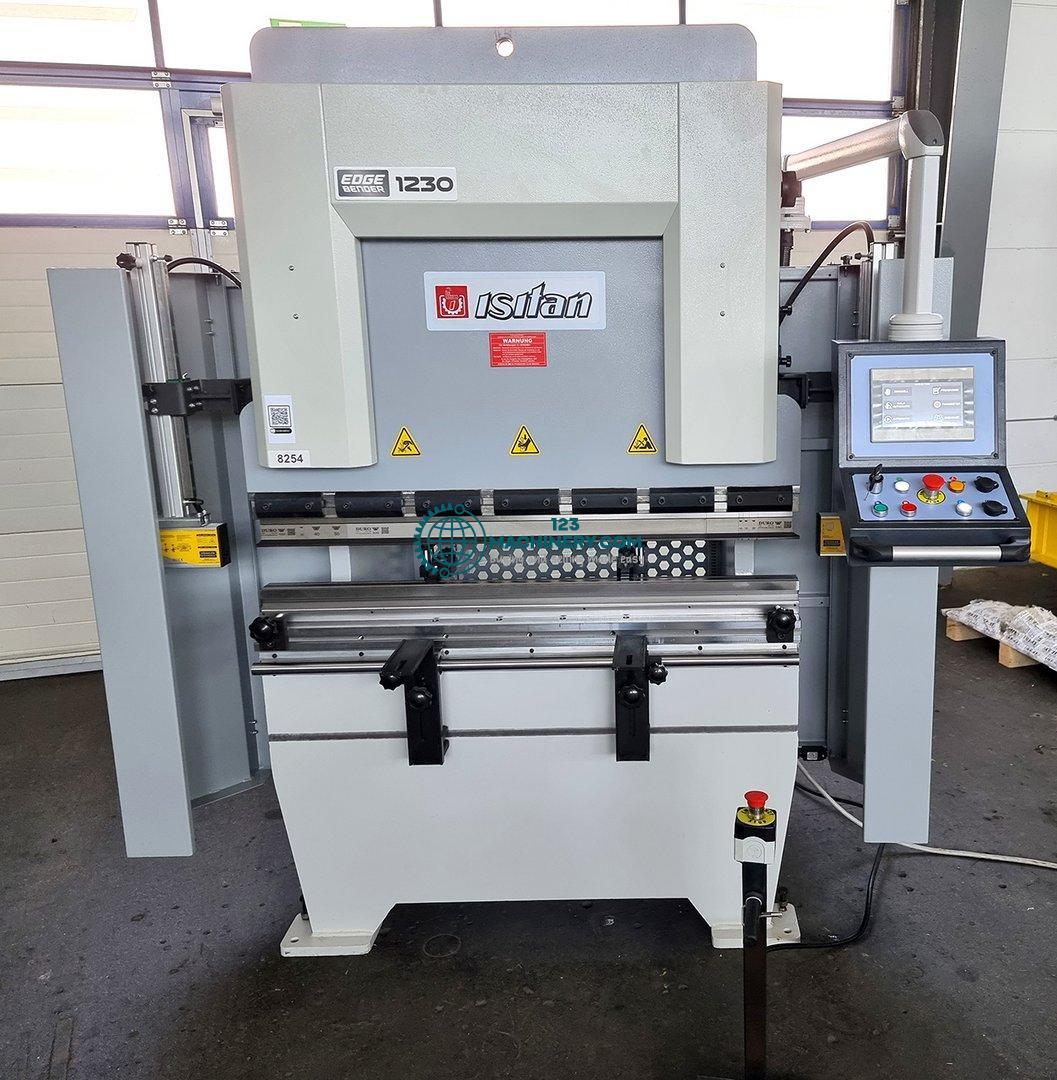

Conventional press brake HESSE by ISITAN Edgebender 1230
HESSE by ISITAN Edgebender 1230
6
Advert data
Reference number
8254
Machine designation
Conventional press brake HESSE by ISITAN Edgebender 1230
Manufacturer
HESSE by ISITAN
Type
Edgebender 1230
Year of manufacture
2022
Condition
used
Location of the advert
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Description
pressing capacity: 30 to
Bending length: 1250 mm
Axes: X and Y axis
Stroke: 150 mm
Inside distance between side frames: 1010 mm
Gap in side frame: 255 mm
Daylight: 265 mm
Power concept: hydraulic
rapid speed Y-axis: 210 mm/s
Working speed Y-axis: 10
Motor power: 3 kW
Length: 1760 mm
Width: 1375 mm
Height: 2135 mm
Weight: 1700 kg
Bending length: 1250 mm
Axes: X and Y axis
Stroke: 150 mm
Inside distance between side frames: 1010 mm
Gap in side frame: 255 mm
Daylight: 265 mm
Power concept: hydraulic
rapid speed Y-axis: 210 mm/s
Working speed Y-axis: 10
Motor power: 3 kW
Length: 1760 mm
Width: 1375 mm
Height: 2135 mm
Weight: 1700 kg
