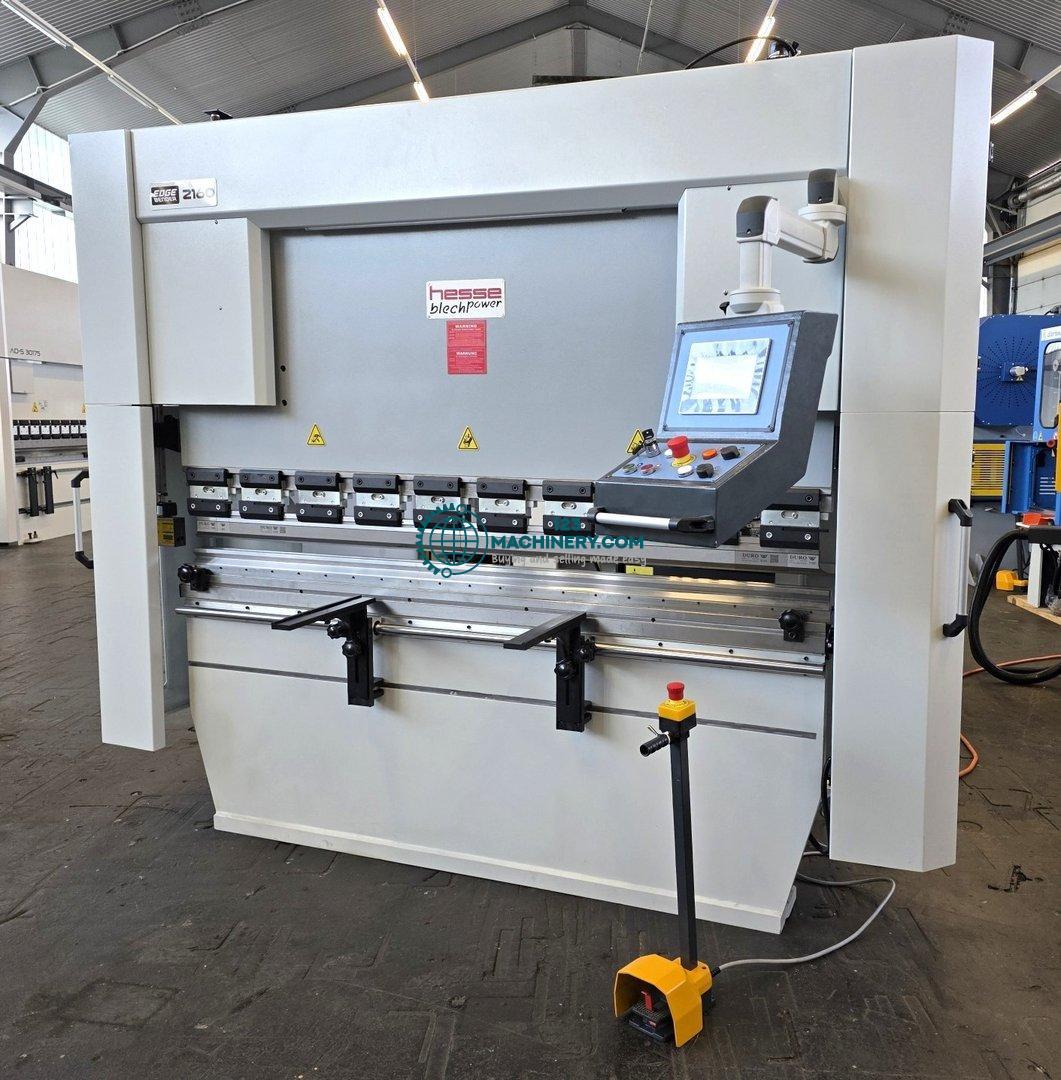

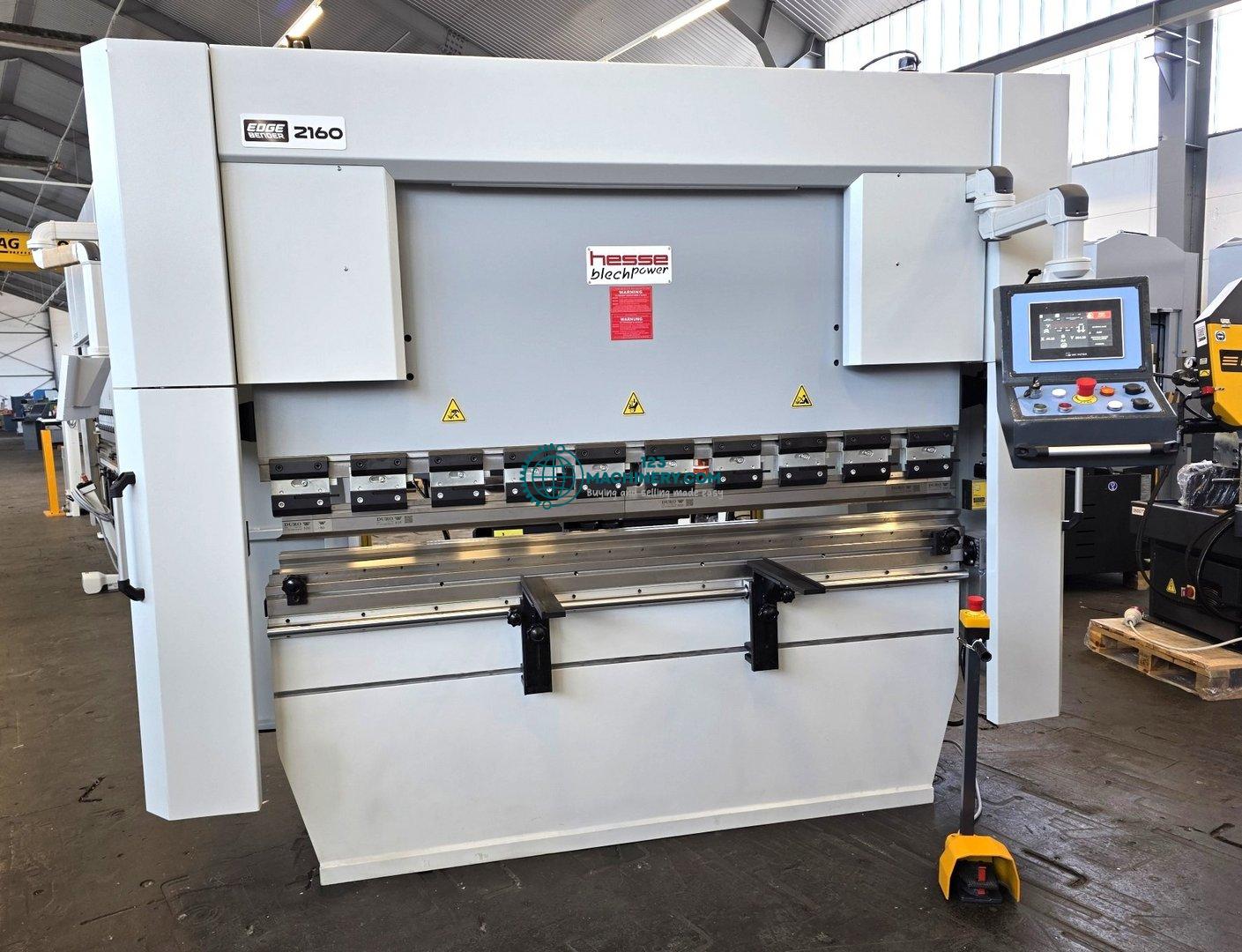

Hydraulic NC press brake HESSE by ISITAN Edgebender 2160
HESSE by ISITAN Edgebender 2160
7
Advert data
Reference number
80102
Machine designation
Hydraulic NC press brake HESSE by ISITAN Edgebender 2160
Manufacturer
HESSE by ISITAN
Type
Edgebender 2160
Year of manufacture
2025
Condition
new
Location of the advert
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Description
pressing capacity: 60 to
Bending length: 2100 mm
Axes: X and Y axis
Stroke: 160 mm
Inside distance between side frames: 1700 mm
Gap in side frame: 320 mm
Daylight: 380 mm
Power concept: hydraulic
rapid speed Y-axis: 90 mm/s
Working speed Y-axis: 10
Back gauge travel X-axis: 500 mm
Table height: 845 mm
Table width: 100 mm
Oiltank: 120 l
Motor power: 7.5 kW
Length: 2450 mm
Width: 1600 mm
Height: 2235 mm
Weight: 4340 kg
Bending length: 2100 mm
Axes: X and Y axis
Stroke: 160 mm
Inside distance between side frames: 1700 mm
Gap in side frame: 320 mm
Daylight: 380 mm
Power concept: hydraulic
rapid speed Y-axis: 90 mm/s
Working speed Y-axis: 10
Back gauge travel X-axis: 500 mm
Table height: 845 mm
Table width: 100 mm
Oiltank: 120 l
Motor power: 7.5 kW
Length: 2450 mm
Width: 1600 mm
Height: 2235 mm
Weight: 4340 kg
