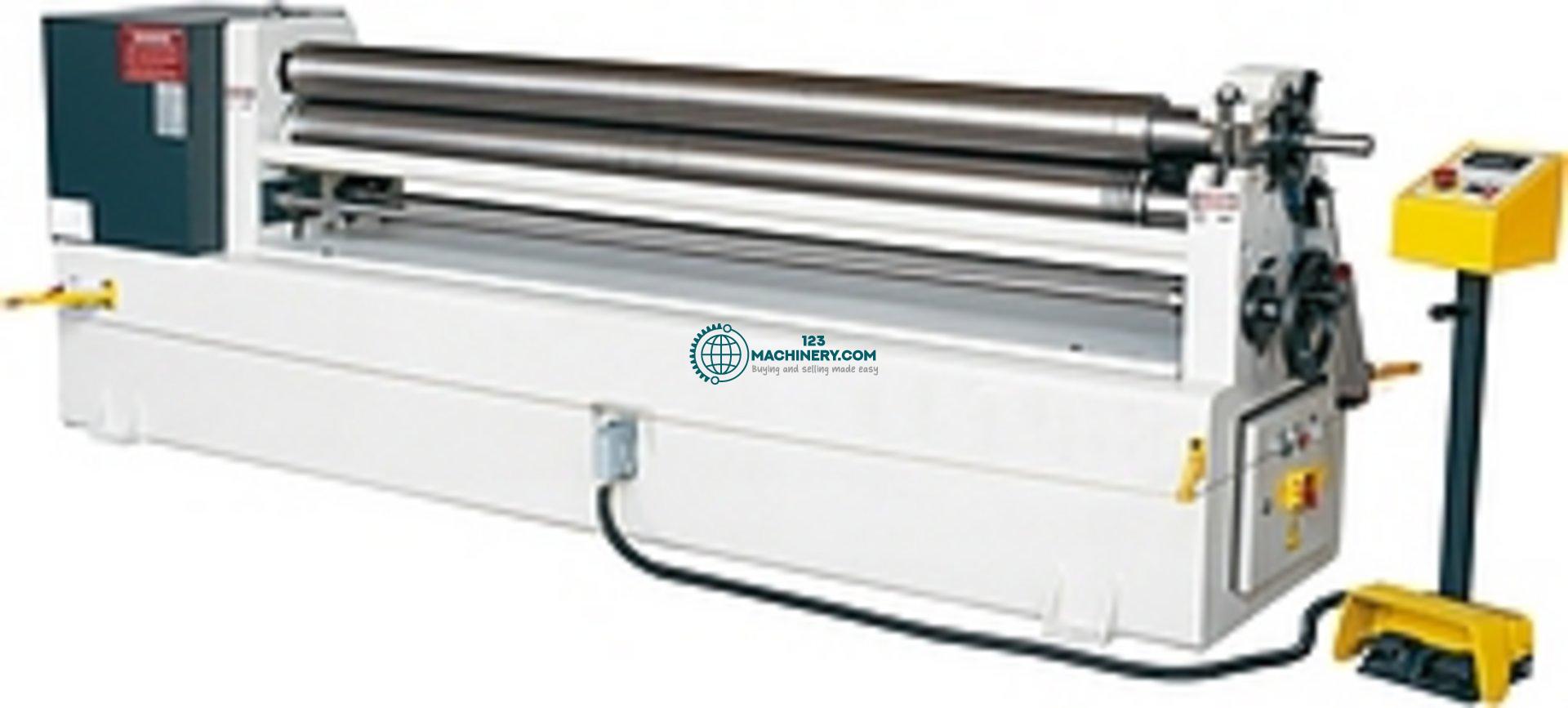

Motor operated 3-roll plate bending machine HESSE by ISITAN
HESSE by ISITAN IRM 2050 x 140
2
Advert data
Reference number
#A-1459
Machine designation
Motor operated 3-roll plate bending machine HESSE by ISITAN
Manufacturer
HESSE by ISITAN
Type
IRM 2050 x 140
Condition
new
Location of the advert
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Description
Bending length: 2050 mm
Max. bending capacity - mild steel: 4
Upper roll diameter: 140 mm
Motor power: 2.2 kW
Length: 3200 mm
Width: 750 mm
Height: 1000 mm
Weight: 1650 kg
Max. bending capacity - mild steel: 4
Upper roll diameter: 140 mm
Motor power: 2.2 kW
Length: 3200 mm
Width: 750 mm
Height: 1000 mm
Weight: 1650 kg
