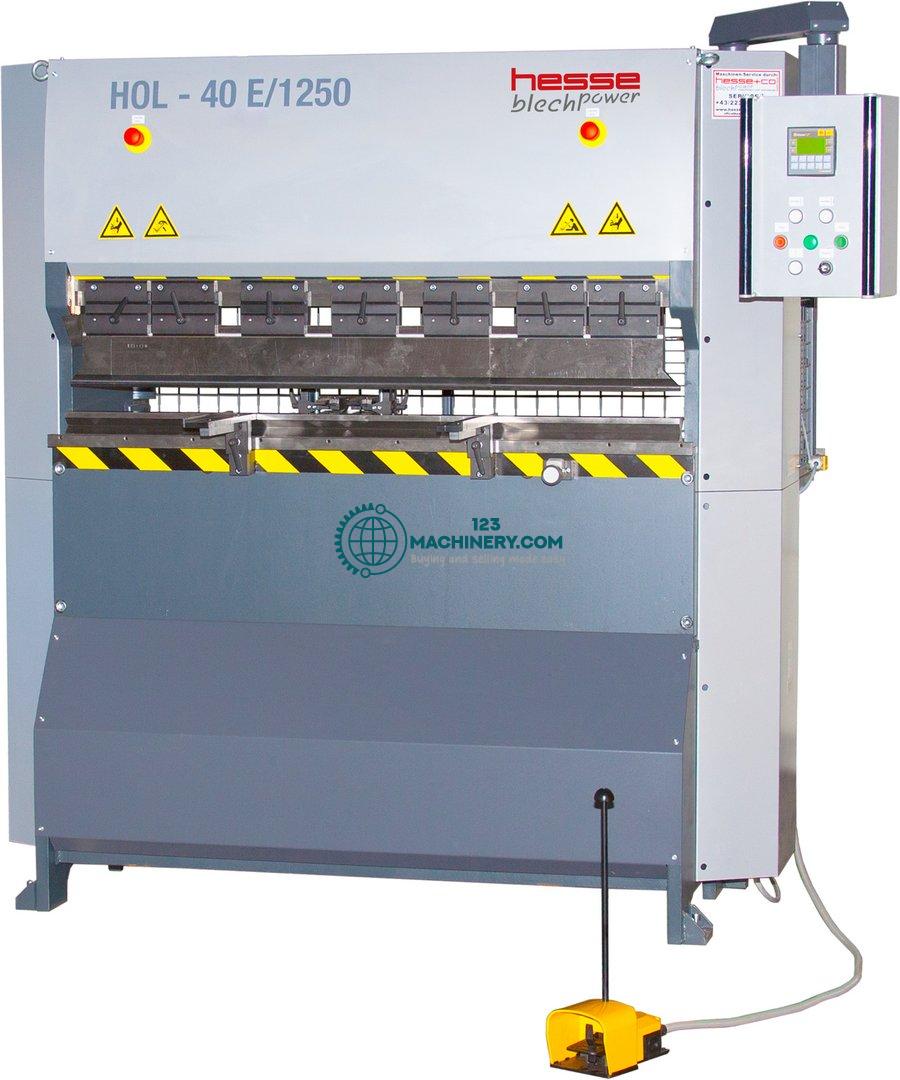

Hydraulic conventional press brake HESSE by JHL HOL-40-E 800
HESSE by JHL HOL-40E 800
3
Advert data
Reference number
#A-164
Machine designation
Hydraulic conventional press brake HESSE by JHL HOL-40-E 800
Manufacturer
HESSE by JHL
Type
HOL-40E 800
Condition
new
Location of the advert
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Description
pressing capacity: 40 to
Bending length: 800 mm
Axes: X and Y axis
Stroke: 100 mm
Daylight: 310 mm
Power concept: hydraulic
Oiltank: 38 l
Motor: 6 kW

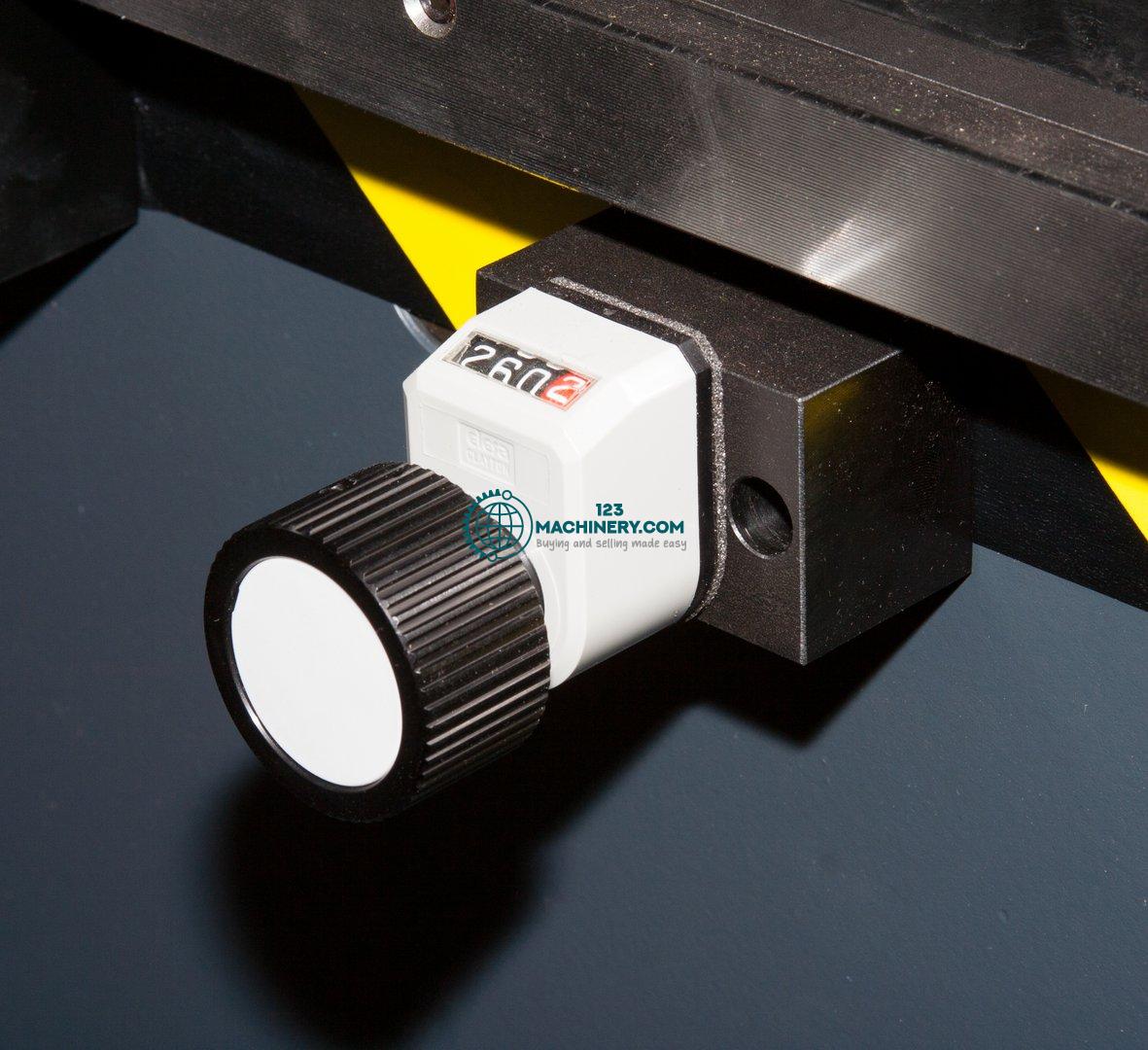

Back gauge: 420 mm
Die: 1
Geschwindigkeit: 10 mm/s
Retraction speed: 12 mm/s
Back gauge speed: 40 mm/s
Accuracy press beam: 0.02 +/- mm
Back gauge accuracy: 0.05 +/- mm
Length: 1750 mm
Width: 950 mm
Height: 1900 mm
Weight: 1640 kg
Bending length: 800 mm
Axes: X and Y axis
Stroke: 100 mm
Daylight: 310 mm
Power concept: hydraulic
Oiltank: 38 l
Motor: 6 kW
Back gauge: 420 mm
Die: 1
Geschwindigkeit: 10 mm/s
Retraction speed: 12 mm/s
Back gauge speed: 40 mm/s
Accuracy press beam: 0.02 +/- mm
Back gauge accuracy: 0.05 +/- mm
Length: 1750 mm
Width: 950 mm
Height: 1900 mm
Weight: 1640 kg
