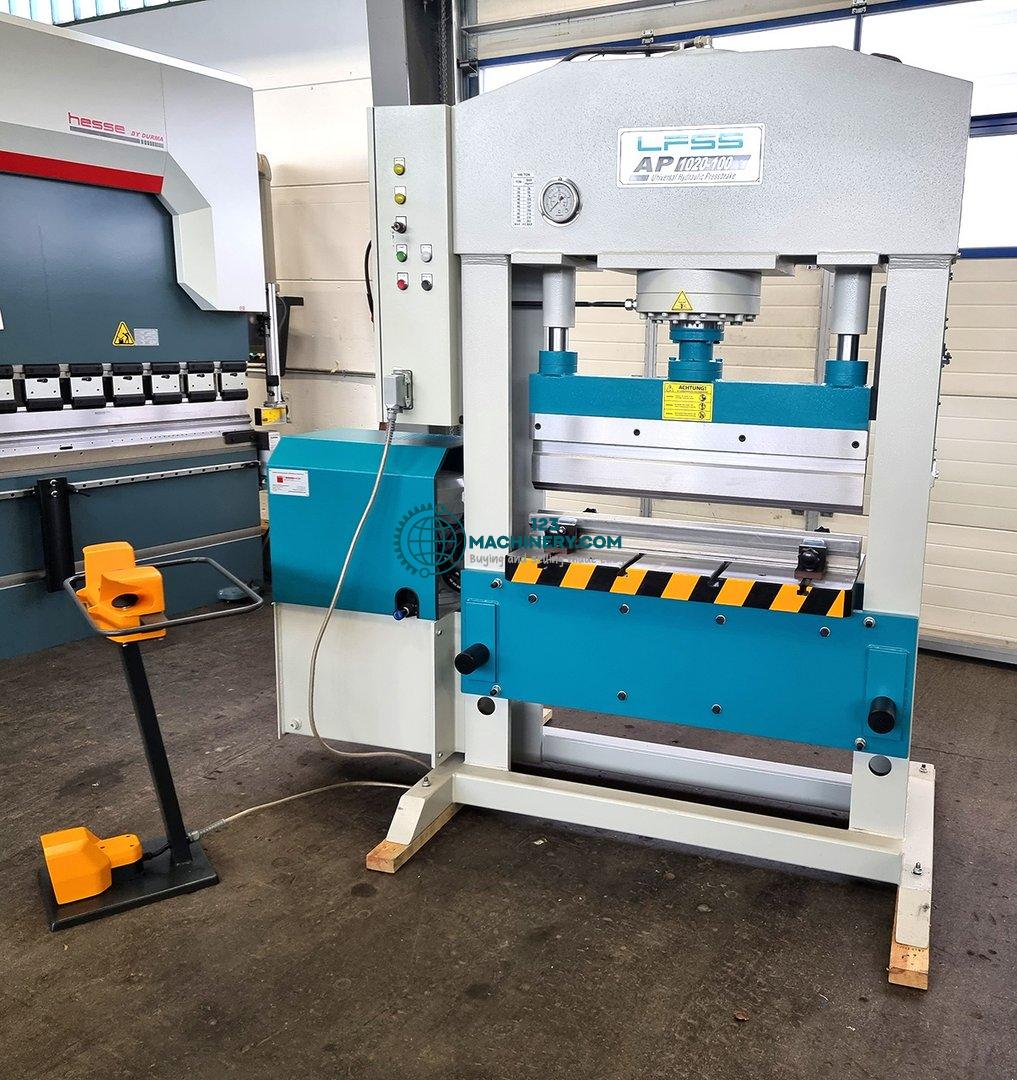

Hydraulic workshop press with bending device HESSE by LFSS A
HESSE by LFSS AP 1020/100
5
Advert data
Reference number
#A-452
Machine designation
Hydraulic workshop press with bending device HESSE by LFSS A
Manufacturer
HESSE by LFSS
Type
AP 1020/100
Condition
new
Location of the advert
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Description
pressing capacity: 100 to
Cylinder fix or moveable: fix
Bending length: 1020 mm
Stroke: 300 mm
Distance between columns: 1020 mm
Distance between table and toolholder: 680 mm
Rapid speed: 9 mm/s
Working speed: 5 mm/s
Retraction speed: 10 mm/s
Max. bending capacity (mild steel): 6 mm
Table: 500x1020 mm
Hole in table: 100 mm
Hole distance: 190 mm
Length: 2110 mm
Width: 1000 mm
Height: 2275 mm
Weight: 2082 kg
Cylinder fix or moveable: fix
Bending length: 1020 mm
Stroke: 300 mm
Distance between columns: 1020 mm
Distance between table and toolholder: 680 mm
Rapid speed: 9 mm/s
Working speed: 5 mm/s
Retraction speed: 10 mm/s
Max. bending capacity (mild steel): 6 mm
Table: 500x1020 mm
Hole in table: 100 mm
Hole distance: 190 mm
Length: 2110 mm
Width: 1000 mm
Height: 2275 mm
Weight: 2082 kg
