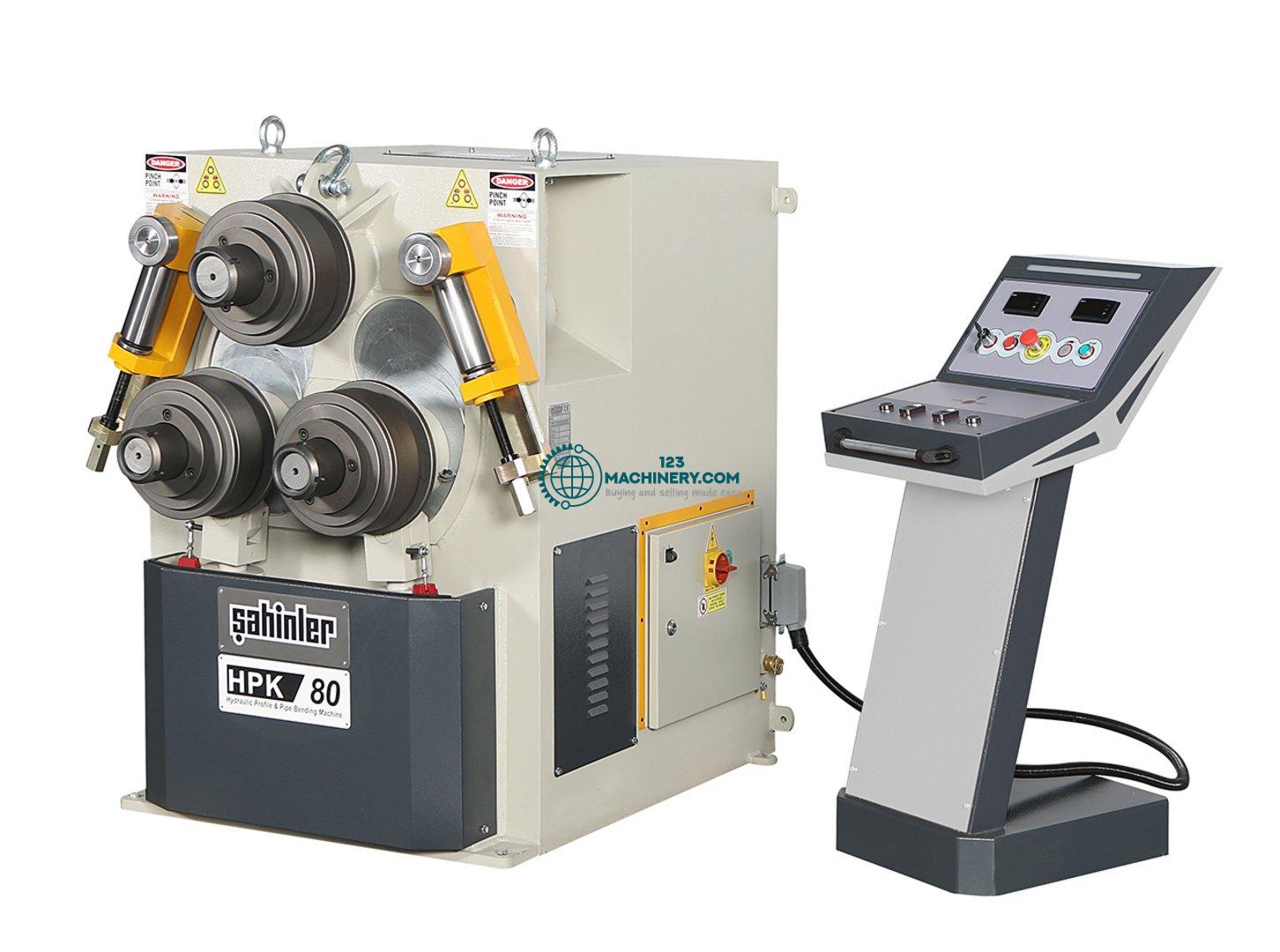

Profile bending machine with hydraulic feed of rolls HESSE b
HESSE by SAHINLER HPK 80
1
Advert data
Reference number
#A-1029
Machine designation
Profile bending machine with hydraulic feed of rolls HESSE b
Manufacturer
HESSE by SAHINLER
Type
HPK 80
Condition
new
Location of the advert
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Description
Shaft diameter: 80
Rolls diameter: 245 mm
Driven rolls: 3
Motor power: 4 kW
Speed: 6 m/min
Flat steel vertical position (section / min. diameter): 100x20 mm / 2000 mm, 80x20 mm / 800 mm, 30x10 / 300
Flat steel horizontal position (section / min. diameter): 125x25 mm / 600 mm, 60x5 mm / 300 mm
Square bar (section / min. diameter): 45x45 mm / 500 mm, 15x15 mm / 380 mm
Round bar (section / min. diameter): Ø 50 mm / 500 mm, Ø 15 mm / 380 mm
Tube (section / min. diameter): Ø 100x2,5 mm / 1.200 mm, Ø 15x1 mm / 380 mm, Ø 3"x5,48 / 800 mm, Ø 1/2"x2,77 / 380 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x25x3 mm / 800 mm, 25x15x2 mm / 350 mm
Form tube square (section / min. diameter): 70x70x3 mm / 1.300 mm, 25x25x2 mm / 350 mm
Angle leg outside (Querschnitt / min. Durchmesser): 80x80x8 mm / 800 mm, 30x30x3 mm / 400 mm
Angle leg inside (section / min. diameter): 70x70x7 mm / 700 mm, 30x30x3 mm / 450 mm
UPN leg outside (section / min. diameter): UPN 140 / 1600 mm, UPN 120 / 900 mm, UPN 100 / 800 mm
UPN leg inside (section / min. diameter): UPN 140 / 1.600 mm, UPN 120 / 1000 mm, UPN 100 / 800 mm
IPN horizontal position (section / min. diameter): IPN 120 / 600 mm, IPN 80 / 400 mm
Length: 1450 mm
Width: 1000 mm
Height: 1400 mm
Weight: 1700 kg
Rolls diameter: 245 mm
Driven rolls: 3
Motor power: 4 kW
Speed: 6 m/min
Flat steel vertical position (section / min. diameter): 100x20 mm / 2000 mm, 80x20 mm / 800 mm, 30x10 / 300
Flat steel horizontal position (section / min. diameter): 125x25 mm / 600 mm, 60x5 mm / 300 mm
Square bar (section / min. diameter): 45x45 mm / 500 mm, 15x15 mm / 380 mm
Round bar (section / min. diameter): Ø 50 mm / 500 mm, Ø 15 mm / 380 mm
Tube (section / min. diameter): Ø 100x2,5 mm / 1.200 mm, Ø 15x1 mm / 380 mm, Ø 3"x5,48 / 800 mm, Ø 1/2"x2,77 / 380 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x25x3 mm / 800 mm, 25x15x2 mm / 350 mm
Form tube square (section / min. diameter): 70x70x3 mm / 1.300 mm, 25x25x2 mm / 350 mm
Angle leg outside (Querschnitt / min. Durchmesser): 80x80x8 mm / 800 mm, 30x30x3 mm / 400 mm
Angle leg inside (section / min. diameter): 70x70x7 mm / 700 mm, 30x30x3 mm / 450 mm
UPN leg outside (section / min. diameter): UPN 140 / 1600 mm, UPN 120 / 900 mm, UPN 100 / 800 mm
UPN leg inside (section / min. diameter): UPN 140 / 1.600 mm, UPN 120 / 1000 mm, UPN 100 / 800 mm
IPN horizontal position (section / min. diameter): IPN 120 / 600 mm, IPN 80 / 400 mm
Length: 1450 mm
Width: 1000 mm
Height: 1400 mm
Weight: 1700 kg
