Saw frame: Pivot frame
Band dimensions: 4160x34x1,1 mm
Band speed continous: 15 - 120 m/min
Cutting capacity 0° round: 320 mm
Cutting capacity 0° square: 320 mm
Cutting capacity 0° flat: 450x320 mm
Cutting capacity 30°: round 320 mm, square 320 mm, rectangular 380x320 mm
Cutting capacity 45°: round 320 mm, square 320 mm, rectangular 330x320 mm
Cutting capacity - 30°: round 320 mm, square 320 mm, rectangular 380x320 mm
Cutting capacity - 45°: round 320 mm, square 300 mm, rectangular 340x320 mm
Cutting capacity - 60°: round 230 mm, square 220 mm, rectangular 230x220 mm
Working height: 860 mm
Hydraulic motor: 0.37 kW
Motor: 2.2 kW
Coolant pump motor: 0.12 kW
Length: 2230 mm
Width: 1150 mm
Height: 2140 mm
Weight: 1030 kg

Saw frame: Double column
Band dimensions: 5750 x 41 x 1,3 mm
Band speed continous: 15 - 120 m/min
Cutting capacity 0° round: 420 mm
Cutting capacity 0° square: 420 mm
Cutting capacity 0° flat: 420 x 420 mm
Working height: 805 mm
Hydraulic motor: 1.1 kW
Motor: 5.5 kW
Servomotor: 1 kW
Coolant pump motor: 0.12 kW
Length: 2860 mm
Width: 1980 mm
Height: 2100 mm
Weight: 3700 kg

Hydraulische Schwenkrahmen-Metallbandsäge BMBS 230 x 280 H-DG
Artikelnummer: 19-03-026
Hersteller: Metallkraft

Neumaschine
Lieferzeit: sofort verfügbar
Maschine werkstattgeprüft

Baujahr: 2025 / Neumaschine
L x B x H: ca.1610x890x1950mm
Gewicht: ca.320kg

Elektrische Daten:
Leistung Antriebsmotor: 0,9 / 1,4 kW
Anschlussspannung: 400 V
Netzfrequenz: 50 Hz

Maschinendaten:
Sägebandgeschwindigkeit(en) 35 / 70m/min
Sägebandlänge 2720mm
Sägebanddicke 0,9mm
Geschwindigkeitsstufen 2
Sägebandbreite 27mm

Schnittbereiche:
Schnittbereich 0° rund (Rohr) 230mm
Schnittbereich 0° rund (Vollmaterial) 150mm
Schnittbereich 0° rechteck liegend (Hohlprofil) 280 x 220mm
Schnittbereich 0° Bündel (Rohr) 280 x 120mm
Schnittbereich -45° rund (Rohr) 190mm
Schnittbereich -45° rund (Vollmaterial) 110mm
Schnittbereich -45° rechteck liegend (Hohlprofil) 180 x 170mm
Schnittbereich -60° rund (Rohr) 120mm
Schnittbereich +45° rund (Vollmaterial) 110mm
Schnittbereich -60° rund (Vollmaterial) 80mm
Schnittbereich +45° rund (Rohr) 185mm
Schnittbereich +45° rechteck liegend (Hohlprofil) 180 x 120mm
Schnittbereich -60° rechteck liegend (Hohlprofil) 120 x 90mm
Materialvorschub
Tischhöhe Materialzufuhr: 787mm

Zubehör:

Sägeband
Kühlmittelpumpe
Bedienwerkzeug

Weiteres Zubehör auf Anfrage
Preis und weitere technische Daten auf Anfrage

Saw frame: Double column
Band dimensions: 5000 x 34 x 1,1 mm mm
Band speed continous: 20 - 120 m/min
Cutting capacity 0° round: 330 mm
Cutting capacity 0° square: 330 mm
Cutting capacity 0° flat: 350 x 330 mm
Working height: 845 mm
Hydraulic motor: 1.1 kW
Motor: 3 kW
Coolant pump motor: 0.12 kW
Length: 2815 mm
Width: 1935 mm
Height: 1855 mm
Weight: 2560 kg

Saw frame: Double column
Band dimensions: 5750 x 41 x 1,3 mm
Band speed continous: 15 - 120 m/min
Cutting capacity 0° round: 460 mm
Cutting capacity 0° square: 460 mm
Cutting capacity 0° flat: 520 x 460 mm
Working height: 585 mm
Hydraulic motor: 0.55 kW
Motor: 4 kW
Coolant pump motor: 0.12 kW
Length: 3000 mm
Width: 1200 mm
Height: 1800 mm
Weight: 1650 kg

Bandsäge Optimum OPTIsaw S 275NV
Artikelnummer: 19-03-027

Hersteller: Optimum

Neumaschine
Lieferzeit: sofort verfügbar
Maschine werkstattgeprüft

Baujahr: 2024
L x B x H: ca.1400x700x1700mm
Gewicht: ca.185kg

Elektrische Daten:

Leistung Antriebsmotor: 1,5 kW Anschlussspannung 230V


Maschinendaten:

Sägebandgeschwindigkeit(en): 20 – 90m/min
Sägebandlänge: 2480mm
Sägebandbreite: 27mm
Sägebanddicke: 0,9mm
Schnittwinkel: 0-60 Grad

Vorschubstufenlos einstellbar Heben des Sägebügels: manuell

Schnittbereiche:

Schnittbereich 0° rund (Vollmaterial) 225mm
Schnittbereich 0° quadrat (Vollmaterial) 190mm
Schnittbereich 0° rechteck liegend (Vollmaterial) 150x245mm
Schnittbereich +45° rund (Vollmaterial) 145mm
Schnittbereich +45° quadrat (Vollmaterial) 150mm
Schnittbereich +45° rechteck liegend (Vollmaterial) 190x150mm
Schnittbereich +60° rund (Vollmaterial) 90mm
Schnittbereich +60° quadrat (Vollmaterial) 90mm
Schnittbereich +60° rechteck liegend (Vollmaterial) 120x90mm

Beschreibung:
Geräuscharmer Lauf Stabile Gussausführung
Hohe Schnittgenauigkeit durch vibrationsfreien Lauf Absenkung des Sägebügels über Hydraulikzylinder mit Drosselventil stufenlos einstellbar
Mikroschalter für automatische Endabschaltung Kühlmitteleinrichtung
Serienmäßig mit hochwertigem Bi-Metall-Sägeband Einstellbarer Materialanschlag für Serienarbeiten
Robuster Maschinenunterbau Kugelgelagerte Sägebandführung
Schnellspannschraubstock verstellbar über Handrad Festspannen des Werkstücks mit handlichem Schnellspannhebel
Gut lesbare Skala zur Winkeleinstellung Überlastschutz

Zubehör:

Materialanschlag
Bi-Metall-Sägeband
Maschinenunterbau
Kühlmittelpumpe

Weiteres Zubehör auf Anfrage
Preis und weitere technische Daten auf Anfrage

Mössner Rekord SFF 1050 Vertikalbandsäge
Dqnqed

-Baujahr 1996
-Automatischer Tischvorschub
-Ausladung 1050mm
-Durchgangshöhe ca 400mm
-Sägebandschweißeinrichtung / Ideal
-Stufenlose Drehzahlregulierung
-Bedienpult
-Arbeitsleuchte

Abmaße:
LxBxH 2x2x2,1 Meter / Gewicht: 1850 Kg

Saw frame: Pivot frame
Band dimensions: 5200x34x1,1 mm
Band speed continous: 20-100 m/min
Cutting capacity 0° round: 440 mm
Cutting capacity 0° square: 440 mm
Cutting capacity 0° flat: 610x440 mm
Cutting capacity 45°: rund 410 mm, quadrat 410 mm, rechteck 410 x 440 mm
Cutting capacity 60°: rund 320 mm, quadrat 250 mm, rechteck 250 x 440 mm
Cutting capacity - 45°: rund 410 mm, quadrat 410 mm, rechteck 410 x 440 mm
Cutting capacity - 60°: rund 320 mm, quadrat 285 mm, rechteck 285 x 440 mm
Working height: 860 mm
Hydraulic motor: 0.55 kW
Motor: 3 kW
Coolant pump motor: 0.12 kW
Length: 2800 mm
Width: 1210 mm
Height: 1870 mm
Weight: 1540 kg

Saw frame: Pivot frame
Band dimensions: 3160x27x0,9 mm
Band speed continous: 20-100 m/min
Cutting capacity 0° round: 270 mm
Cutting capacity 0° square: 270 mm
Cutting capacity 0° flat: 340 x 220 mm
Cutting capacity 45°: round 230 mm, square 200 mm, flat 220 x 200 mm
Cutting capacity 60°: round 150 mm, square 150 mm, flat 150 x 100 mm
Cutting capacity - 45°: round 180 mm, square 160 mm, flat 210 x 100 mm
Working height: 910 mm
Hydraulic motor: 0.37 kW
Motor: 1.5 kW
Coolant pump motor: 0.12 kW
Length: 1730 mm
Width: 770 mm
Height: 1460 mm
Weight: 476 kg

Saw frame: Pivot frame
Band dimensions: 2730x27x0,9 mm
Band speed: 35/70 m/min
Cutting capacity 0° round: 230 mm
Cutting capacity 0° square: 230 mm
Cutting capacity 0° flat: 320x130 mm
Cutting capacity 45°: rund 210 mm, quadrat 180 mm, rechteck 230 x 160 mm
Cutting capacity 60°: rund 120 mm, quadrat 100 mm, rechteck 120 x 100 mm
Cutting capacity - 45°: rund 180 mm, quadrat 150 mm, rechteck 230 x 100 mm
Working height: 760 mm
Hydraulic motor: 0.37 kW
Motor: 1.3 kW
Coolant pump motor: 0.12 kW
Length: 1350 mm
Width: 700 mm
Height: 1300 mm
Weight: 430 kg

Ebara EVMS3 Vertical multistage pump, 2023, Stainless pump, 1.5Kw, Max Liquid 120'C, 1Ph

Stangenlademagazin/Tal AUTO 65-32

LxBxH ca. 5000x1000x1500mm
Gewicht ca. 600 kg
Ansteuerung über CNC-Maschine
(war an einer traub-cnc maschine angebaut)
B0doi8oziq
Stangen -Durchmesser ca. 5-65mm
Stangenlänge ca. 4 meter
Höhenverstellung ca. 1000-1300mm
Stromversorgung 380 Volt
Max. Vorschubweg ca. 4000mm
Max. Stangengewicht ca. 150 kg

Bandsäge -Bauer S300

-Schnittleistung/Flach/ 90 Grad - 300mm
Dnxhnj
-Sägebandlänge 3900x25x0,9mm
-Bandgeschwindigkeit 20-70m/min
-Stufenlose Schnittdruckregulierung
-Gehrungsschnitteinrichtung
-Maschinenrollen


Abmaße: LxBxH
2,3x1,3x1,5 Meter /Gewicht 550Kg

Saw frame: Pivot frame
Band dimensions: 3660x27x0,9 mm
Band speed continous: 20-100 m/min
Cutting capacity 0° round: 320 mm
Cutting capacity 0° square: 300 mm
Cutting capacity 0° flat: 320x300 mm
Working height: 640 mm
Hydraulic motor: 0.37 kW
Motor: 2 kW
Coolant pump motor: 0.12 kW
Length: 1900 mm
Width: 850 mm
Height: 1300 mm
Weight: 770 kg

Saw frame: Pivot frame
Band dimensions: 3270x27x0,9 mm
Band speed: 35/70 (PLC) m/min
Band speed continous: 20-100 (CNC/Touch) m/min
Cutting capacity 0° round: 300 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 420x200 mm
Cutting capacity 45°: rund 240 mm, quadrat 230 mm, rechteck 270 x 140 mm
Cutting capacity 60°: rund 170 mm, quadrat 170 mm, rechteck 170 x 170 mm
Min. rest piece length: 220 mm
Working height: 835 mm
Hydraulic motor: 0.37 kW
Coolant pump motor: 0.12 kW
Length: 3220 mm
Width: 2050 mm
Height: 1900 mm
Weight: 1090 kg

Saw frame: Pivot frame
Band dimensions: 3270x27x0,9 mm
Band speed: 35/70 m/min
Cutting capacity 0° round: 300 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 420x200 mm
Cutting capacity 45°: rund 240 mm, quadrat 230 mm, rechteck 270 x 140 mm
Cutting capacity 60°: rund 170 mm, quadrat 170 mm, rechteck 170 x 170 mm
Working height: 830 mm
Length: 1650 mm
Width: 1200 mm
Height: 1900 mm
Weight: 400 kg

Saw frame: Pivot frame
Band dimensions: 3270x27x0,9 mm
Band speed: 35/70 m/min
Cutting capacity 0° round: 300 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 420x200 mm
Cutting capacity 45°: rund 240 mm, quadrat 230 mm, rechteck 270 x 140 mm
Cutting capacity 60°: rund 170 mm, quadrat 170 mm, rechteck 170 x 170 mm
Working height: 830 mm
Length: 1600 mm
Width: 1400 mm
Height: 1950 mm
Weight: 356 kg

Saw frame: Double column
Band dimensions: 3270x27x0,9 mm
Band speed: 40/80 m/min
Cutting capacity 0° round: 300 mm
Cutting capacity 0° square: 300 mm
Cutting capacity 0° flat: 350x260 mm
Cutting capacity 45°: rund 210 mm, quadrat 210 mm, rechteck 210 x 260 mm
Cutting capacity 60°: rund 110 mm, quadrat 110 mm, rechteck 110 x 150 mm
Working height: 830 mm
Motor: 1.5 kW
Length: 1500 mm
Width: 1600 mm
Height: 1900 mm
Weight: 590 kg

Saw frame: Pivot frame
Band dimensions: 3270x27x0,9 mm
Band speed: 35/70 m/min
Cutting capacity 0° round: 280 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 420x200 mm
Cutting capacity 45°: rund 260 mm, quadrat 240 mm, rechteck 260 x 200 mm
Cutting capacity 60°: rund 170 mm, quadrat 160 mm, rechteck 160 x 160 mm
Cutting capacity - 45°: rund 200 mm, quadrat 180 mm, rechteck 250 x 100 mm
Working height: 830 mm
Length: 1600 mm
Width: 1600 mm
Height: 1800 mm
Weight: 488 kg

Saw frame: Pivot frame
Band dimensions: 3270x27x0,9 mm
Band speed: 35/70 m/min
Cutting capacity 0° round: 280 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 420x200 mm
Cutting capacity 45°: rund 260 mm, quadrat 240 mm, rechteck 260 x 200 mm
Cutting capacity 60°: rund 170 mm, quadrat 160 mm, rechteck 160 x 160 mm
Cutting capacity - 45°: rund 200 mm, quadrat 180 mm, rechteck 250 x 100 mm
Working height: 830 mm
Length: 1600 mm
Width: 1400 mm
Height: 1800 mm
Weight: 438 kg

Saw frame: Pivot frame
Band dimensions: 3120x27x0,9 mm
Band speed: 35/70 m/min
Cutting capacity 0° round: 280 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 350x140 mm
Cutting capacity 45°: rund 230 mm, quadrat 200 mm, rechteck 230 x 230 mm
Cutting capacity 60°: rund 140 mm, quadrat 140 mm, rechteck 140 x 140 mm
Cutting capacity - 45°: rund 200 mm, quadrat 170 mm, rechteck 220 x 100 mm
Working height: 830 mm
Length: 1600 mm
Width: 1550 mm
Height: 1750 mm
Weight: 460 kg

Saw frame: Pivot frame
Band dimensions: 3120 mm
Band speed: 35/70 m/min
Cutting capacity 0° round: 280 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 350x140 mm
Cutting capacity 45°: rund 230 mm, quadrat 200 mm, rechteck 230 x 120 mm
Cutting capacity 60°: rund 150 mm, quadrat 130 mm, rechteck 130 x 130 mm
Cutting capacity - 45°: rund 200 mm, quadrat 170 mm, rechteck 220 x 110 mm
Working height: 830 mm
Length: 1550 mm
Width: 1400 mm
Height: 1750 mm
Weight: 420 kg

Saw frame: Pivot frame
Band dimensions: 3120x27x0,9 mm
Band speed: 35/70 m/min
Cutting capacity 0° round: 280 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 370x140 mm
Cutting capacity 45°: rund 225 mm, quadrat 215 mm, rechteck 230 x 140 mm
Cutting capacity 60°: rund 140 mm, quadrat 140 mm, rechteck 140 x 130 mm
Working height: 830 mm
Length: 1650 mm
Width: 1200 mm
Height: 1850 mm
Weight: 390 kg

Saw frame: Pivot frame
Band dimensions: 3120x27x0,9 mm
Band speed: 35/70 m/min
Cutting capacity 0° round: 280 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 370x140 mm
Cutting capacity 45°: rund 225 mm, quadrat 215 mm, rechteck 230 x 140 mm
Cutting capacity 60°: rund 140 mm, quadrat 140 mm, rechteck 140 x 130 mm
Working height: 830 mm
Length: 1550 mm
Width: 1400 mm
Height: 1900 mm
Weight: 353 kg

Saw frame: Pivot frame
Band dimensions: 3010x27x0,9 mm
Band speed: 35/70 m/min
Band speed continous: 20-100 m/min
Cutting capacity 0° round: 260 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 330x120 mm
Cutting capacity 45°: rund 200 mm, quadrat 190 mm, rechteck 200 x 130 mm
Cutting capacity 60°: rund 120 mm, quadrat 115 mm, rechteck 120 x 100 mm
Min. rest piece length: 220 mm
Working height: 835 mm
Motor: 1.5 kW
Length: 2800 mm
Width: 2050 mm
Height: 1900 mm
Weight: 1090 kg

Saw frame: Pivot frame
Band dimensions: 3010x27x0,9 mm
Band speed: 35/70 (PLC) m/min
Band speed continous: 20-100 (CNC/Touch) m/min
Cutting capacity 0° round: 260 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 330x120 mm
Cutting capacity 45°: rund 200 mm, quadrat 190 mm, rechteck 200 x 130 mm
Cutting capacity 60°: rund 120 mm, quadrat 115 mm, rechteck 120 x 100 mm
Min. rest piece length: 220 mm
Working height: 835 mm
Hydraulic motor: 0.37 kW
Coolant pump motor: 0.12 kW
Length: 2800 mm
Width: 2050 mm
Height: 1900 mm
Weight: 1090 kg

Saw frame: Pivot frame
Band dimensions: 3010x27x0,9 mm
Band speed: 35/70 m/min
Cutting capacity 0° round: 260 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 330x120 mm
Cutting capacity 45°: rund 200 mm, quadrat 190 mm, rechteck 200 x 130 mm
Cutting capacity 60°: rund 120 mm, quadrat 115 mm, rechteck 120 x 100 mm
Working height: 830 mm
Length: 1600 mm
Width: 1200 mm
Height: 1800 mm
Weight: 390 kg

Saw frame: Pivot frame
Band dimensions: 3010x27x0,9 mm
Band speed: 35/70 m/min
Cutting capacity 0° round: 260 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 330x120 mm
Cutting capacity 45°: rund 200 mm, quadrat 190 mm, rechteck 200 x 130 mm
Cutting capacity 60°: rund 120 mm, quadrat 115 mm, rechteck 120 x 100 mm
Working height: 830 mm
Length: 1500 mm
Width: 1400 mm
Height: 1850 mm
Weight: 345 kg

Saw frame: Pivot frame
Band dimensions: 2450x27x0,9 mm
Band speed: 35/70 m/min
Cutting capacity 0° round: 220 mm
Cutting capacity 0° square: 220 mm
Cutting capacity 0° flat: 260x140 mm
Cutting capacity 45°: rund 160 mm, quadrat 155 mm, rechteck 160 x 140 mm
Cutting capacity 60°: rund 95 mm, quadrat 95 mm, rechteck 95 x 95 mm
Working height: 965 mm
Length: 1200 mm
Width: 1100 mm
Height: 1860 mm
Weight: 240 kg

Saw frame: Pivot frame
Band dimensions: 2450x27x0,9 mm
Band speed: 35/70 m/min
Cutting capacity 0° round: 220 mm
Cutting capacity 0° square: 200 mm
Cutting capacity 0° flat: 250x150 mm
Cutting capacity 45°: rund 160 mm, quadrat 140 mm, rechteck 140 x 140 mm
Cutting capacity 60°: rund 90 mm, quadrat 90 mm, rechteck 90 x 90 mm
Working height: 800 mm
Motor: 0.7 kW
Length: 1330 mm
Width: 1300 mm
Height: 1880 mm
Weight: 350 kg

Umlaufdurchmesser: 430 mm
Spitzenhöhe: 450 mm
Gesamtleistungsbedarf: . kW
Maschinengewicht ca.: t
Raumbedarf ca.: m

Umlaufdurchmesser: 430 mm
Spitzenhöhe: 450 mm
Gesamtleistungsbedarf: . kW
Maschinengewicht ca.: t
Raumbedarf ca.: m

Saw frame: Double column
Band dimensions: 3270 x 27 x 0,9 mm
Band speed continous: 40 - 80 m/min
Cutting capacity 0° round: 300 mm
Cutting capacity 0° square: 300 mm
Cutting capacity 0° flat: 330 x 290 mm
Cutting capacity 45°: round 210 mm, square 210 mm, rectangular 210 x 260 mm
Cutting capacity 60°: round 110 mm, square 110 mm, rectangular 110 x 150 mm
Working height: 840 mm
Hydraulic motor: 0.75 kW
Motor: 1.5 kW
Coolant pump motor: 0.06 kW
Length: 3070 mm
Width: 2060 mm
Height: 1930 mm
Transport dimensions: 2400 x 1700 x 1700 mm
Weight: 1210 kg

Aksar AFM-BFM Rasgulla Gulabjamun making machine, Rasgulla Gulabjamun making machine, ball forming machine is used for cutting and rounding various types of sweets and food products like rasgulla, gulabjamun, rasmalia, chumchum, peda, chocolate, coconut laddu, sweet balls, kachori, dates balls, riceball and various types of bakery, confectionery and indian snacks, 15L hopper, 10,000 pieces per hour, 1g to 100g, variable speed, mobile, 1Ph

Drehdurchmesser über Bett: 1930 mm
Drehdurchmesser über Support: 1520 mm
Drehlänge: 5000 mm
Drehzahl: 0,5-250 U/min
Spindelbohrung: 105 mm
Werkstückgewicht: 35 t
Lünette: 1000-1600 mm
Steuerung: Siemens
Gesamtleistungsbedarf: 106 kW
Maschinengewicht ca.: t
Raumbedarf ca.: m

Drehdurchmesser: 1100 mm
Drehlänge: 6000 mm
Steuerung: Siemens 840D
Drehdurchmesser über Support: 740 mm
Gesamtleistungsbedarf: 22 kW
Maschinengewicht ca.: t
Raumbedarf ca.: m

Saw frame: Pivot frame
Band dimensions: 2480 x 0,9 x 27 mm
Band speed: 45 / 90 m/min
Cutting capacity 0° round: 225 mm
Cutting capacity 0° flat: 180 x 245 mm
Cutting capacity 30°: rund 100 mm, 100 x 100 mm
Cutting capacity 45°: rund 160 mm, 160 x 160 mm
Working height: 935 mm
Motor: 1.1 kW
Length: 1500 mm
Width: 700 mm
Height: 1400 mm
Weight: 225 kg

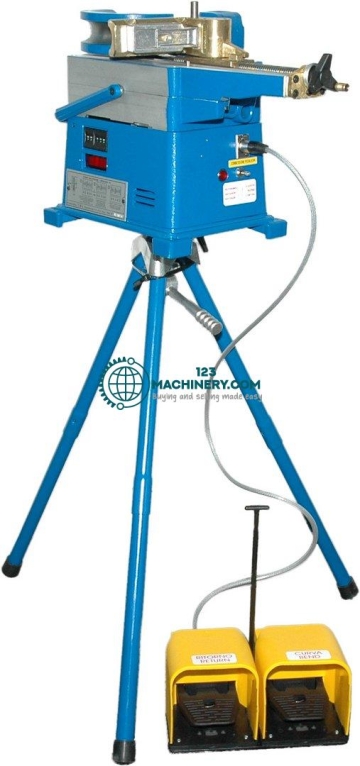

Flexion modulus: 15 cm³
Standard steel tube: 76 x 3 mm
Gas tube: 2"1/2 x 4 mm
Furniture tube: 76 x 3 mm
FE35 (for hydraulic tubes): 70 x 5 mm
Stainless steel AISI304-318: 70 x 4 mm
Stainless steel AISI308 (food industry): 76 x 1,6 mm
Brass soft: 76 x 4 mm
Hard copper and aluminium: 76 x 6 mm
Soft copper: 76 x 6 mm
Conduit tube (TAZ): 73 x 4 mm
Mepla, Gebereit and similar: 50 x 4 mm
Roundbar solid (S275JO): 45 mm
Squarebar solid (S275JO): 40 x 40 mm
Flatsteel solid (S275JO): 10 x 90 mm
Square profile (S275JO): 30 x 60 x 3 bzw. 60 x 60 x 3 mm
T-profile (S275JO): 60 x 60 x 6 mm
U-profile (S275JO): 50 x 20 x 6 mm
Max. bending radius: 380 mm
Min. bending radius: 10 mm
Min. tube Ø: 10 mm
Max. bending speed: 2/4 r/min
Motor: 3.5 kW
Length: 370 mm
Width: 680 mm
Height: 910 mm
Weight: 193 kg

Flexion modulus: 10 cm³
Standard steel tube: 60 x 4 mm
Gas tube: 2" x 4 mm
Furniture tube: 60 x 4 mm
FE35 (for hydraulic tubes): 64 x 5 mm
Stainless steel AISI304-318: 64 x 3 mm
Stainless steel AISI308 (food industry): 60 x 3 mm
Brass soft: 60 x 6 mm
Hard copper and aluminium: 64 x 6 mm
Soft copper: 64 x 6 mm
Conduit tube (TAZ): 63 x 4 mm
Mepla, Gebereit and similar: 50 x 4 mm
Roundbar solid (S275JO): 35 mm
Squarebar solid (S275JO): 30 x 30 mm
Flatsteel solid (S275JO): 14 x 60 mm
Square profile (S275JO): 25 x 50 x 3 bzw. 50 x 50 x 3 mm
T-profile (S275JO): 50 x 50 x 6 mm
U-profile (S275JO): 40 x 20 x 6 mm
Max. bending radius: 380 mm
Min. bending radius: 10 mm
Min. tube Ø: 10 mm
Max. bending speed: 1,5 / 3 r/min
Motor: 1.5 kW
Length: 500 mm
Width: 760 mm
Height: 1000 mm
Weight: 186 kg

Flexion modulus: 6 cm³
Standard steel tube: 48 x 3,5 mm
Gas tube: 1"1/2 x 3.68 mm
Furniture tube: 54 x 1,5 mm
FE35 (for hydraulic tubes): 50 x 4 mm
Stainless steel AISI304-318: 50 x 3 mm
Stainless steel AISI308 (food industry): 40 x 2,5 mm
Brass soft: 60 x 3 mm
Hard copper and aluminium: 64 x 2 mm
Soft copper: 64 x 2 mm
Conduit tube (TAZ): 60 x 2 mm
Mepla, Gebereit and similar: 50 x 4 mm
Roundbar solid (S275JO): 32 mm
Squarebar solid (S275JO): 30 x 30 mm
Flatsteel solid (S275JO): 8 x 48 mm
Square profile (S275JO): 20 x 40 x 3 bzw. 40 x 40 x 3 mm
T-profile (S275JO): 40 x 40 x 5 mm
U-profile (S275JO): 32 x 16 x 5 mm
Max. bending radius: 300 mm
Min. bending radius: 10 mm
Min. tube Ø: 10 mm
Max. bending speed: 4 r/min
Motor: 1.5 kW
Length: 570 mm
Width: 410 mm
Height: 1000 mm
Weight: 110 kg

Saw frame: Double column
Band dimensions: 6000 x 41 x 1,3 mm
Band speed continous: 20 - 100 m/min
Cutting capacity 0° round: 560 mm
Cutting capacity 0° square: 560 mm
Cutting capacity 0° flat: 600 x 560 mm
Working height: 810 mm
Hydraulic motor: 2.2 kW
Motor: 5.5 kW
Coolant pump motor: 0.12 kW
Length: 3250 mm
Width: 2200 mm
Height: 2350 mm
Weight: 4500 kg

Schnittdurchmesser: 260 mm
Sägebandlänge: . mm
Schnittbreite: . mm
Maschinengewicht ca.: t
Raumbedarf ca.: m

Dimensions of the bars: Ø 35 mm - 2.200
Set: 2 x 5
Space requirement (W x D x H): in box 1,45 x 2,38 x 0,38 m

Trunk length: 3
Trunk diameter: depending on the existing sword length
Saw options: electric saw, chainsaw
Trunk supports: 2 piece
Material: steel
Surface: powder coated
Weight of machine: 30 kg
Space requirement (W x D x H): 1,2 x 3,0 x 1,4 m

Mobile sawmills for chainsaws from Stihl, Husqvarna, Dolmar and many other manufacturers. Easy to set up: The sawmill can be set up quickly and easily with a 2-part ladder. The two ladders are screwed onto 2 or more square timbers using wood screws. Please check the ladder dimensions to make sure everything will fit. To assemble you will need 4 x 10 x 10 x 60 cm and 2 x 10 x 10 x 120 cm squared timbers (for 2 trunk supports). If you want to saw over 3 m, we recommend an additional trunk support.

Accessory: options: more trunk supports

Schnittdurchmesser: 1020 mm
Sägebandlänge: 11.430 x 80 x 1,6 mm
Schnittbreite: 1,6 mm
Schnittbereich: 1020x1260 mm
Steuerung: CNC
Schnittgeschwindigkeit: 15-190 m/min
Antriebsleistung: 11 kW
Tischbelastung: 20 t
Gesamtleistungsbedarf: 20 kW
Maschinengewicht ca.: 21,1 t
Raumbedarf ca.: m

Saw frame: Double column
Band dimensions: 6800x41x1,3 mm
Band speed continous: 20-100 m/min
Cutting capacity 0° round: 560 mm
Cutting capacity 0° square: 540 mm
Cutting capacity 0° flat: 820x540 mm
Cutting capacity 45°: rund 550 mm, quadrat 540 mm, rechteck 550 x 540 mm
Cutting capacity 60°: rund 360 mm, quadrat 360 mm, rechteck 360 x 540 mm
Cutting capacity - 45°: rund 550 mm, quadrat 540 mm, rechteck 550 x 540 mm
Working height: 880 mm
Hydraulic motor: 0.37 kW
Motor: 4 kW
Coolant pump motor: 0.12 kW
Length: 3800 mm
Width: 1750 mm
Height: 2350 mm
Weight: 3200 kg

Saw frame: Double column
Band dimensions: 8200x41x1,3 mm
Band speed continous: 20-100 m/min
Cutting capacity 0° round: 810 mm
Cutting capacity 0° square: 750 mm
Cutting capacity 0° flat: 910x750 mm
Cutting capacity 45°: rund 600 mm, quadrat 600 mm, rechteck 750 x 600 mm
Cutting capacity 60°: rund 360 mm, quadrat 360 mm, rechteck 750 x 360 mm
Working height: 725 mm
Motor: 4 kW
Coolant pump motor: 0.12 kW
Length: 4020 mm
Width: 1600 mm
Height: 2450 mm
Weight: 3970 kg

Saw frame: Pivot frame
Band dimensions: 3120x27x0,9 mm
Band speed continous: 20-100 m/min
Cutting capacity 0° round: 280 mm
Cutting capacity 0° square: 240 mm
Cutting capacity 0° flat: 310x240 mm
Cutting capacity 45°: rund 230 mm, quadrat 230 mm, rechteck 230 x 230 mm
Cutting capacity 60°: rund 140 mm, quadrat 140 mm, rechteck 140 x 140 mm
Cutting capacity - 45°: rund 200 mm, quadrat 170 mm, rechteck 220 x 100 mm
Min. rest piece length: 240 mm
Working height: 835 mm
Hydraulic motor: 0.37 kW
Motor: 1.5 kW
Coolant pump motor: 0.12 kW
Torque feeding carriage motor: 1.95 Nm
Torque motor for automatic bow rotation: 1.95 Nm
Length: 2800 mm
Width: 2000 mm
Height: 1820 mm
Weight: 1200 kg

Flexion modulus: 19 cm³
Standard steel tube: 38 x 1,5 mm
Furniture tube: 38 x 1,5 mm
FE35 (for hydraulic tubes): 35 x 3 mm
Stainless steel AISI304-318: 30 x 2 mm
Stainless steel AISI308 (food industry): 35 x 1,5 mm
Brass soft: 42 x 1,5 mm
Hard copper and aluminium: 42 x 1,5 mm
Soft copper: 50 x 2 mm
Conduit tube (TAZ): 50 x 2 mm
Mepla, Gebereit and similar: 50 x 4 mm
Roundbar solid (S275JO): 20 mm
Squarebar solid (S275JO): 10 x 25 mm
Flatsteel solid (S275JO): 25 x 20 (stehend), 25 x 16 (stehend) mm
Max. bending radius: 180 mm
Min. bending radius: 36 mm
Min. tube Ø: 10 mm
Max. bending speed: 2 r/min
Motor: 0.9 kW
Length: 245 mm
Width: 300 mm
Height: 320 mm
Weight: 23 kg
