Advert data
Reference number
WZM-14563
Machine designation

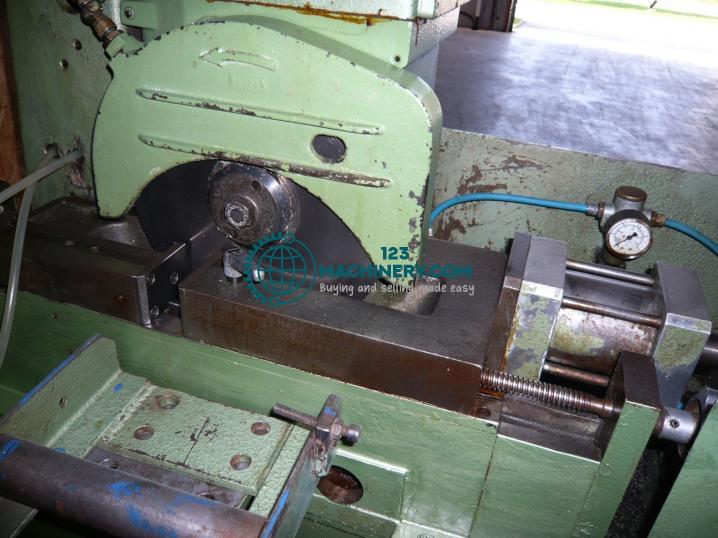

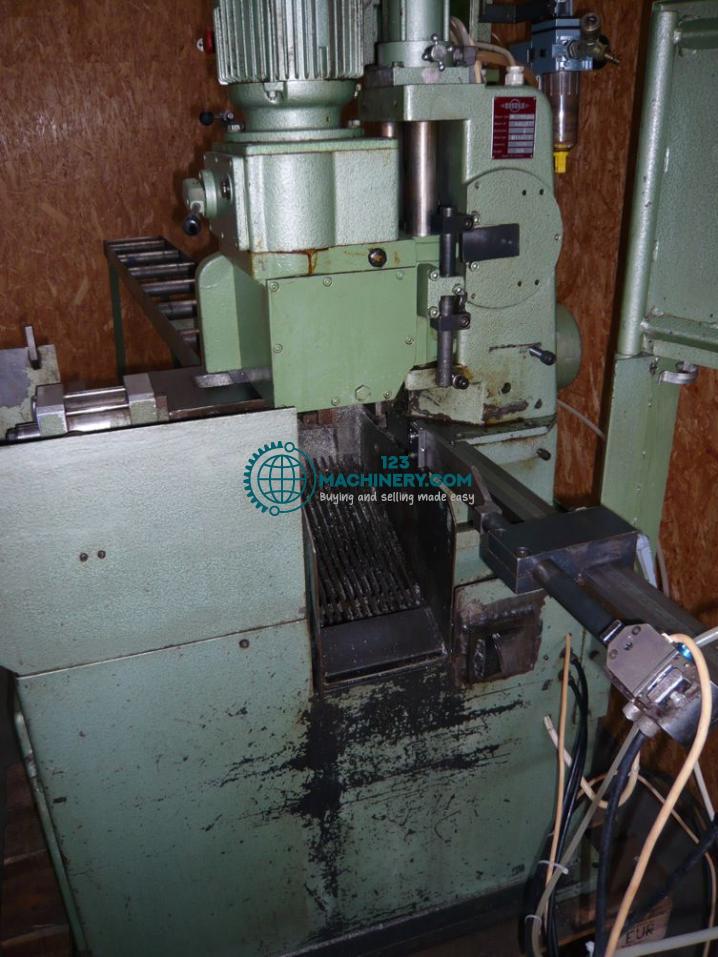

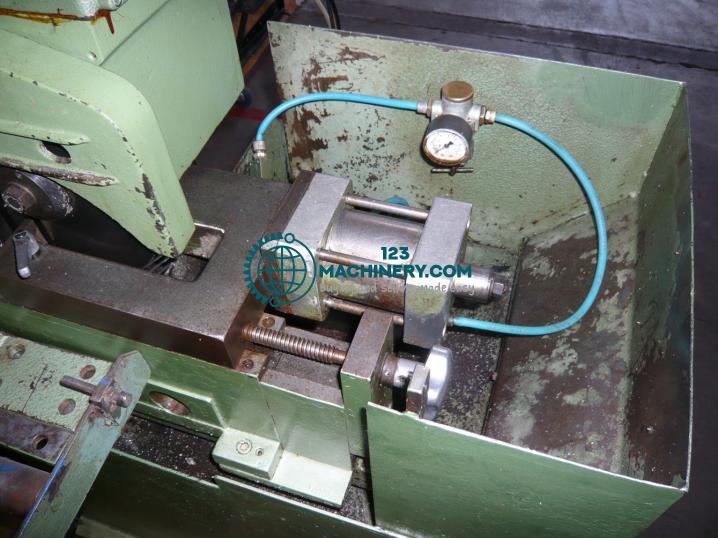

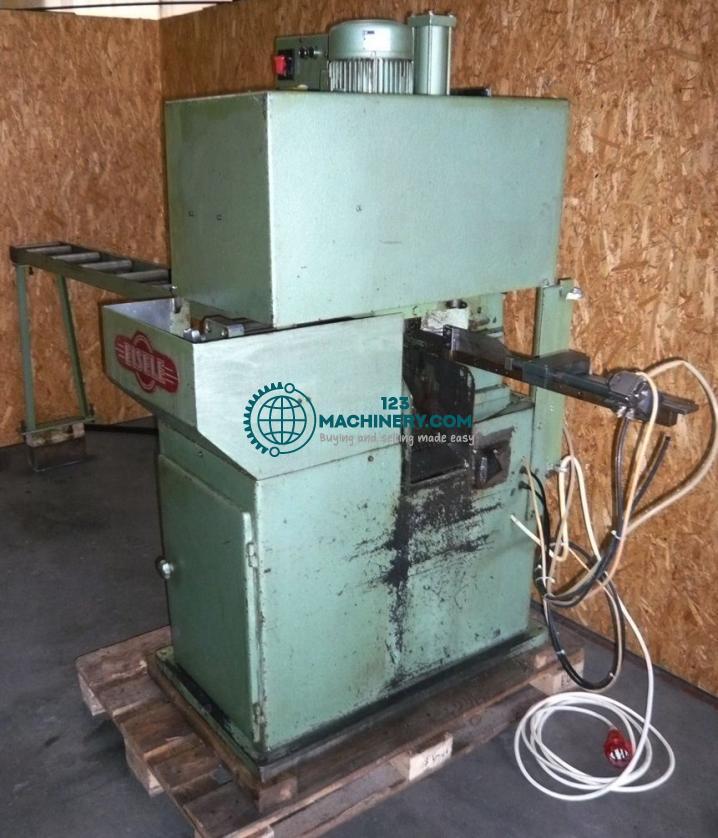

EISELE VMSIIPVPR.072 Iron Saw
Manufacturer
EISELE
Type
VMSIIPVPR.072
Year of manufacture
1978
Condition
used
Location of the advert
64720 Michelstadt
Description
Cutting diameter: 100 mm
Saw blade dimensions: 280 mm
Speed range: 10, 20, 40, 80 rpm
Sectional area 90° flat: 120 x 100 mm
Sectional area 90° circular: 100 mm

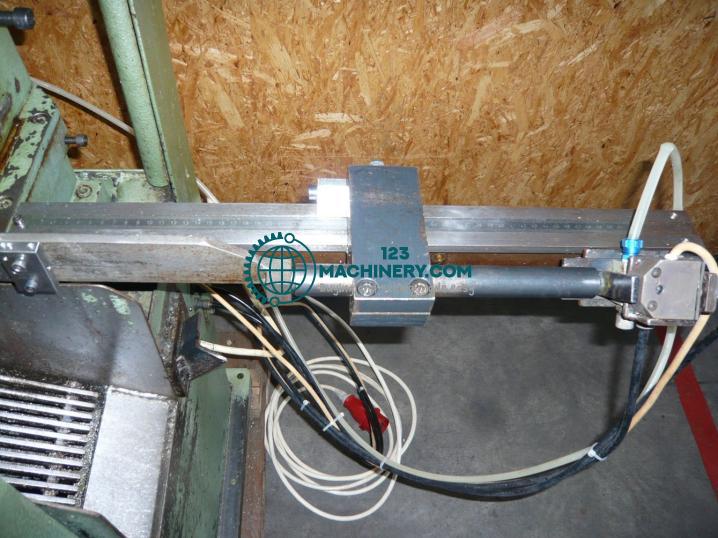

Length stop: 500 mm
Total power: 1,5 kW
Weight of machine: 700 kg
Condition: good

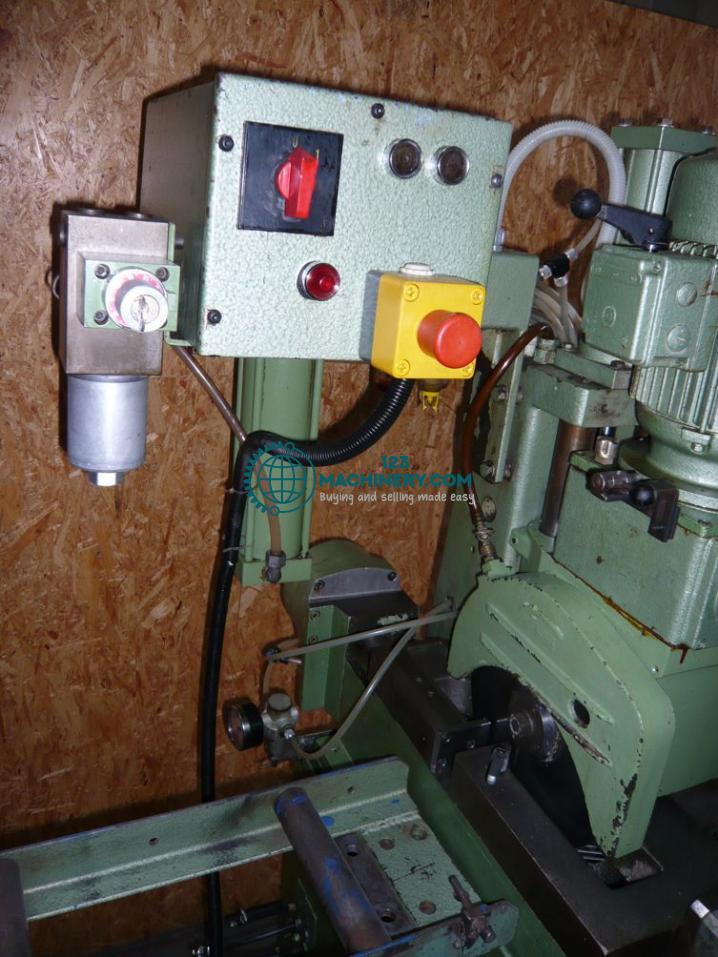

semi-automatic machine, electrical limit stop, automatic cutting cycle, pneumatic clamps, prepared for pneumatic controlled supply

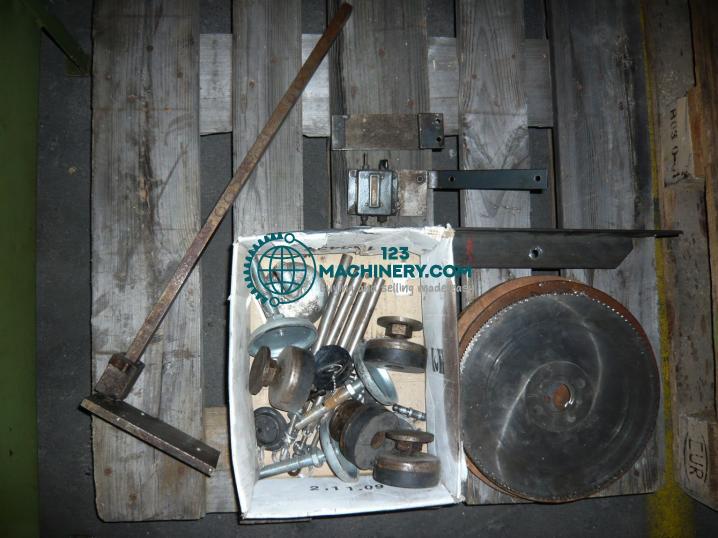

Accessory: 18 saw blades, roller conveyor 2 m
Saw blade dimensions: 280 mm
Speed range: 10, 20, 40, 80 rpm
Sectional area 90° flat: 120 x 100 mm
Sectional area 90° circular: 100 mm
Length stop: 500 mm
Total power: 1,5 kW
Weight of machine: 700 kg
Condition: good
semi-automatic machine, electrical limit stop, automatic cutting cycle, pneumatic clamps, prepared for pneumatic controlled supply
Accessory: 18 saw blades, roller conveyor 2 m
