Advert data
Reference number
#A-903
Machine designation

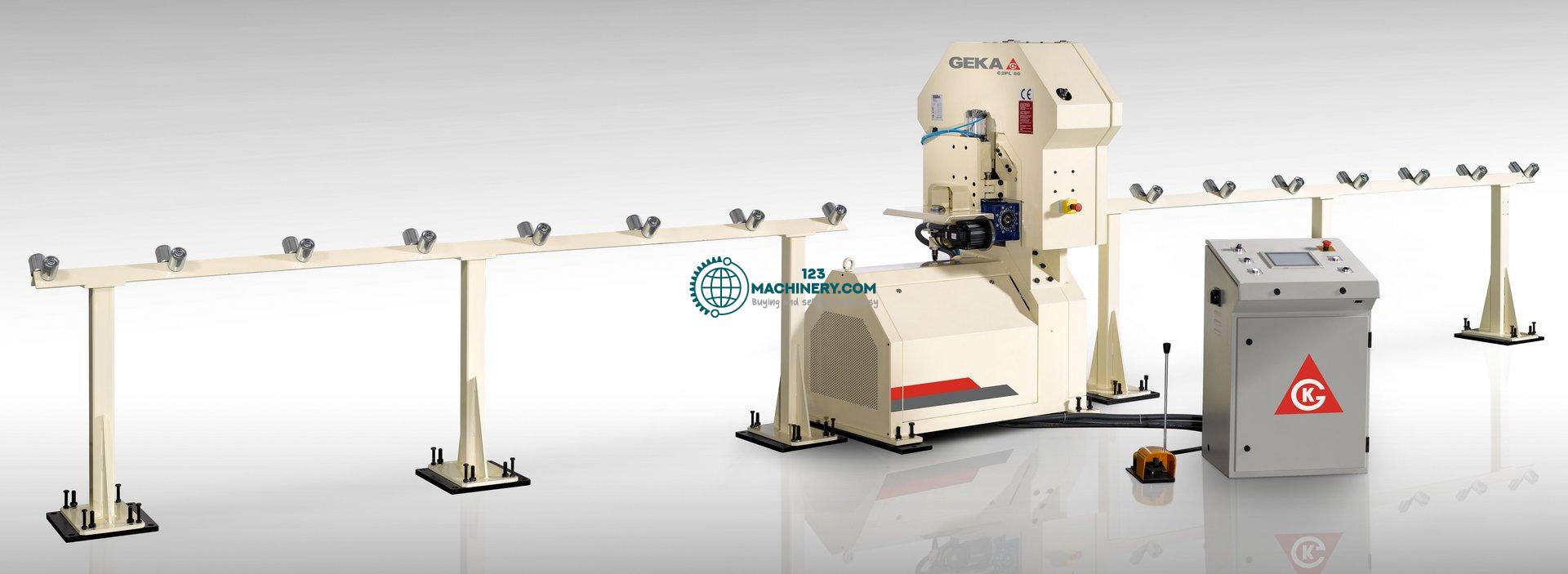

Steelworker GEKA C2PL 65
Manufacturer
GEKA
Type
C2PL 65
Condition
new
Location of the advert
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Description
Punching power: 170 ton
Min. angle steel: 40x40x4 mm
Max. angle steel: 65x65x7 mm
Amount of punching units: 2
Max. diameter at sheet thickness (mild steel): 25/5 bzw- 18/7 mm
Cutting power: 350 to
Motor: 5 kW
Max. pressure: 265 bar
Oiltank: 70 l
Min. angle steel: 40x40x4 mm
Max. angle steel: 65x65x7 mm
Amount of punching units: 2
Max. diameter at sheet thickness (mild steel): 25/5 bzw- 18/7 mm
Cutting power: 350 to
Motor: 5 kW
Max. pressure: 265 bar
Oiltank: 70 l
