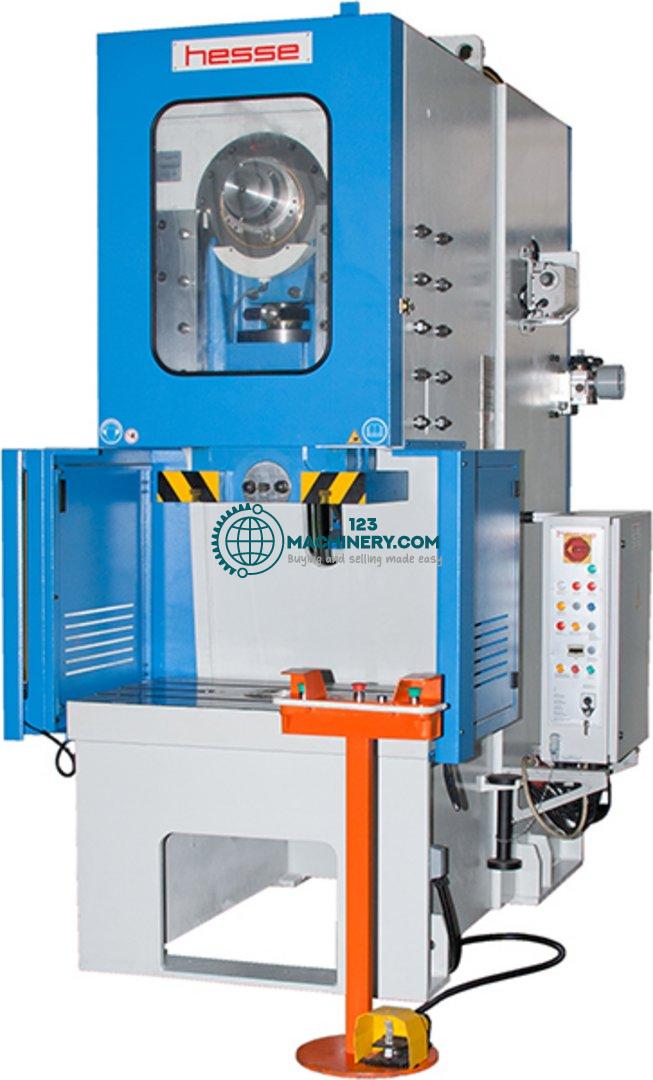

C-frame eccentric press HESSE by DIRINLER CDCS 1100 P81
HESSE by DIRINLER CDCS 1100 P81
1
Advert data
Reference number
#A-789
Machine designation
C-frame eccentric press HESSE by DIRINLER CDCS 1100 P81
Manufacturer
HESSE by DIRINLER
Type
CDCS 1100 P81
Condition
new
Location of the advert
Industriezentrum Nö-süd Straße 4 - Objekt 8, 2351 Wiener neudorf, Austria
Description
pressing capacity: 110 to
Table length: 900 mm
Table width: 540 mm
Hole in table: 180 mm
Stroke: 14 - 114 mm
Strokes: 60 1/min
Ram: 490x325 mm
Ram adjustment: 90 mm
Throat depth: 280 mm
Motor: 7.5 kW
Length: 1870 mm
Width: 1320 mm
Height: 2800 mm
Weight: 5600 kg
Table length: 900 mm
Table width: 540 mm
Hole in table: 180 mm
Stroke: 14 - 114 mm
Strokes: 60 1/min
Ram: 490x325 mm
Ram adjustment: 90 mm
Throat depth: 280 mm
Motor: 7.5 kW
Length: 1870 mm
Width: 1320 mm
Height: 2800 mm
Weight: 5600 kg
