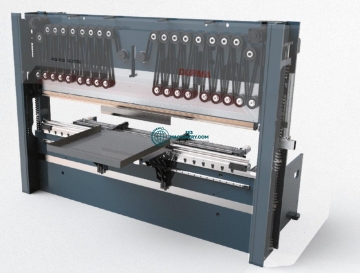

pressing capacity: 135 to
Bending length: 3050 mm
Axes: 4
Stroke: 320 mm
Inside distance between side frames: 3340 mm
Daylight: 500 mm
Power concept: servomotorized belt drive
rapid speed Y-axis: 100 mm/s
Working speed Y-axis: 10
Retractionspeed Y-axis: 100
Back gauge travel X-axis: 650 mm
Back gauge travel R-axis: 250 mm
Length: 4200 mm
Width: 2200 mm
Height: 2550 mm
Weight: 7300 kg

Drilling capacy mild steel: 40 mm
Taper: MK 4
Distance spindle - column: 300 mm
Revs: 75 - 150 - 235 - 325 - 470 - 650 - 1.050 - 2.100 r.p.m.
Motor: 1.3 kW
Tapping capacity: Stahl: M 30, Guss: M 32
Feeds: 0,1 — 0,2 — 0,3 mm/r
max. drilling depth: 160 mm
Column diameter: 125 mm
Table: 420 x 400 mm
Length: 600 mm
Width: 640 mm
Height: 2020 mm
Weight: 305 kg

pressing capacity: 80 to
Bending length: 2550 mm
Axes: 4
Stroke: 320 mm
Inside distance between side frames: 2840 mm
Daylight: 500 mm
Power concept: servomotorized belt drive
rapid speed Y-axis: 105 mm/s
Working speed Y-axis: 10
Retractionspeed Y-axis: 105
Back gauge travel X-axis: 650 mm
Back gauge travel R-axis: 250 mm
Length: 3700 mm
Width: 2200 mm
Height: 2550 mm
Weight: 6400 kg

pressing capacity: 160 to
Cylinder fix or moveable: horizontal moveable
Stroke: 400 mm
Daylight: 900 mm
Distance between columns: 1450 mm
Working speed: 7,4 / 11,8 mm/s
Retraction speed: 9.8 mm/s
Table: 1450 x 450 mm
Motor power: 5 kW
Length: 1640 mm
Width: 1000 mm
Height: 2550 mm
Weight: 1300 kg

pressing capacity: 60 to
Stroke: 250 mm
Ram: 550 x 850 mm
Table: 600x1000 mm
Daylight: 500 mm
Rapid speed: 100 mm/s
Working speed: 10 mm/s
Retraction speed: 165 mm/s
Motor: 11 kW
Length: 1950 mm
Width: 1900 mm
Height: 2750 mm
Weight: 5300 kg

pressing capacity: 30 to
Stroke: 300 mm
Ram: 500х800 mm
Table: 600х900 mm
Daylight: 550 mm
Rapid speed: 100 mm/s
Working speed: 18 mm/s
Retraction speed: 165 mm/s
Motor: 11 kW
Working pressure: 160 bar
Die cushion pressing force: 12 to
Die cushion stroke: 150 mm
Table Drill Ø: 80 mm
Draw cushion working pressure: 130 bar
Draw cushion retraction speed: 100 mm/sec.
Draw cushion surface: 250х250 mm
Length: 1950 mm
Width: 1900 mm
Height: 2800 mm
Weight: 4850 kg

Bending length: 1020 mm
Sheet thickness (420 N/mm²): 1.25 mm
Max. bending angle: 135 °
Stroke of upper flange: 50 mm
Length: 1500 mm
Width: 700 mm
Height: 1250 mm
Weight: 200 kg

pressing capacity: 150 to
Stroke: 500 mm
Ram: 950 x 650 mm
Table: 1200 x 750 mm
Daylight: 750 mm
Rapid speed: 100 mm/s
Working speed: 5 mm/s
Retraction speed: 165 mm/s
Motor: 11 kW
Working pressure: 254 bar
Die cushion pressing force: 32 to
Die cushion stroke: 200 mm
Table Drill Ø: 120 mm
Draw cushion working pressure: 160 bar
Draw cushion retraction speed: 40 mm/sec.
Draw cushion surface: 720x540 mm
Length: 2200 mm
Width: 2200 mm
Height: 3650 mm
Weight: 9500 kg

Jaw opening: 160 mm
jaw height: 50 mm
Opening of upper beam: 125 mm

Jaw opening: 125 mm
jaw height: 44 mm
Opening of upper beam: 100 mm
Weight: 16 kg

Jaw opening: 125 mm
jaw height: 45 mm
Opening of upper beam: 100 mm
Weight: 29 kg

Revs: 63 - 3150 (18) r.p.m.
Working area: 700 x 500 x 500 mm
Table: 900 x 500 mm
Motor: 6.6 kW
Maximal table load: 500 kg
Quill travel: 100 mm
Length: 2150 mm
Width: 2220 mm
Height: 2120 mm
Weight: 2550 kg

pressing capacity: 30 to
Bending length: 1050 mm
Axes: 3 (Y1, Y2, X)
Stroke: 160 mm
Inside distance between side frames: 850 mm
Gap in side frame: 250 mm
Daylight: 390 mm
Power concept: hydraulic
Working speed Y-axis: 10
Retractionspeed Y-axis: 130
Back gauge travel X-axis: 400 mm
Back gauge speed X-axis: 250
Table height: 835 mm
Table width: 104 mm
Oiltank: 75 l
Motor power: 7.5 kW
Length: 2470 mm
Width: 1250 mm
Height: 2245 mm
Weight: 3250 kg

Working height: 820 - 940 mm
Maximal table load: 900 kg
Max. load per meter: 300 kg/m
width of rolls: 350 mm
diameter of rolls: 60 x 2 mm
axis diameter: 15 mm
max. gauge length: 2550 mm
roll gapping: 250 mm
Length: 3000 mm

Working height: 820 - 940 mm
Maximal table load: 900 kg
Max. load per meter: 300 kg/m
width of rolls: 350 mm
diameter of rolls: 60 x 2 mm
axis diameter: 15 mm
max. gauge length: 2550 mm
roll gapping: 250 mm
Length: 3000 mm

Working height: 820 - 940 mm
Maximal table load: 900 kg
Max. load per meter: 300 kg/m
width of rolls: 350 mm
diameter of rolls: 60 x 2 mm
axis diameter: 15 mm
max. gauge length: 2550 mm
roll gapping: 250 mm
Length: 3000 mm

Working height: 530 - 870 mm
Maximal table load: 700 kg
width of rolls: 2 x 125 mm
diameter of rolls: 52 mm
number of rolls: 2
Weight: 20 kg

T-slots: 22 mm
Length: 420 mm
Width: 450 mm
Height: 250 mm

V-Size: 25 mm
Length: 835 mm
Height: 80 mm

Length: 3100 mm
Width: 90 mm
Height: 25 mm

Bending length: 2550 mm
Max. bending capacity - mild steel: 13
Max. plate thickness without prebending at D=5x upper roll diam. - mild steel: 13 mm
Max. plate thickness without prebending at D=1,5x upper roll diam. - mild steel: 10 mm
Max. plate thickness with prebending at D=5x upper roll diam. - mild steel: 10 mm
Max. plate thickness with prebending at D=1,5x upper roll diam. - mild steel: 8 mm
Upper roll diameter: 260 mm
Lower roll diameter: 260 mm
Lateral roll diameter: 200 mm
Bending speed: 1,5-6 m/min
Motor power: 7.5 kW
Length: 4800 mm
Width: 1600 mm
Height: 1550 mm
Weight: 6800 kg

Length: 835 mm

pressing capacity: 100 to
Cylinder fix or moveable: fix
Stroke: 500 mm
Daylight: 700 mm
Distance between columns: 1050 mm
Rapid speed: 25 mm/s
Working speed: 2 mm/s
Length: 1900 mm
Width: 1200 mm
Height: 2450 mm
Weight: 1300 kg

pressing capacity: 100 to
Cylinder fix or moveable: horizontal moveable
Stroke: 500 mm
Daylight: 700 mm
Distance between columns: 1050 mm
Rapid speed: 25 mm/s
Working speed: 2 mm/s
Length: 1900 mm
Width: 1200 mm
Height: 2450 mm
Weight: 1770 kg

pressing capacity: 150 to
Stroke: 500 mm
Table: 1.550 x 2.000 mm
Daylight: 800 mm
Rapid speed: 20 mm/s
Working speed: 3 mm/s
Cylinder fix or moveable: horizontal moveable
Distance between columns: 1550 mm
Horizontal movable cylinder: 1000 mm
Hydraulicaly movable stand: 1300 mm
Length: 2350 mm
Width: 2000 mm
Height: 2500 mm
Weight: 4100 kg

pressing capacity: 150 to
Stroke: 500 mm
Table: 2.500 x 2.050 mm
Daylight: 800 mm
Rapid speed: 20 mm/s
Working speed: 3 mm/s
Cylinder fix or moveable: horizontal moveable
Distance between columns: 2050 mm
Horizontal movable cylinder: 1400 mm
Hydraulicaly movable stand: 1600 mm
Length: 2900 mm
Width: 2500 mm
Height: 2500 mm
Weight: 5200 kg

pressing capacity: 200 to
Stroke: 500 mm
Table: 3.000 x 2.550 mm
Daylight: 800 mm
Rapid speed: 20 mm/s
Working speed: 2 mm/s
Cylinder fix or moveable: horizontal moveable
Distance between columns: 2550 mm
Horizontal movable cylinder: 1900 mm
Hydraulicaly movable stand: 2000 mm
Length: 3550 mm
Width: 3000 mm
Height: 2600 mm
Weight: 8500 kg

pressing capacity: 300 to
Stroke: 500 mm
Table: 4.000 x 2.550 mm
Daylight: 700 mm
Rapid speed: 20 mm/s
Working speed: 2 mm/s
Cylinder fix or moveable: horizontal moveable
Distance between columns: 2550 mm
Horizontal movable cylinder: 1.8 mm
Hydraulicaly movable stand: 2.8 mm
Length: 3550 mm
Width: 4000 mm
Height: 2600 mm
Weight: 15000 kg

pressing capacity: 500 to
Stroke: 500 mm
Table: 5.000 x 2.550 mm
Daylight: 700 mm
Rapid speed: 18 mm/s
Working speed: 3 mm/s
Cylinder fix or moveable: horizontal moveable
Distance between columns: 2550 mm
Horizontal movable cylinder: 1.7 mm
Hydraulicaly movable stand: 3.6 mm
Length: 5000 mm
Width: 5000 mm
Height: 3000 mm
Weight: 32000 kg

pressing capacity: 600 to
Stroke: 500 mm
Table: 6.000 x 2.550 mm
Daylight: 700 mm
Rapid speed: 18 mm/s
Working speed: 3 mm/s
Cylinder fix or moveable: horizontal moveable
Distance between columns: 2550 mm
Horizontal movable cylinder: 2200 mm
Hydraulicaly movable stand: 4600 mm
Length: 5000 mm
Width: 6000 mm
Height: 3000 mm
Weight: 43000 kg

pressing capacity: 130 to
Tonnage rating point: 4.5 mm
Table length: 650 mm
Table width: 950 mm
Hole in table: 220 mm
Stroke: 1 - 132 mm
Strokes: 50 1/min
Ram guides: 6
Ram adjustment: 95 mm
Ram hole: 70 mm
Throat depth: 325 mm
Daylight: 500 mm
Motor: 11 kW
Length: 1800 mm
Width: 1725 mm
Height: 3020 mm
Weight: 8000 kg

Drilling capacy mild steel: 35 mm
Taper: MK 4
Distance spindle - column: 390 mm
Revs: 94- 2.225 (16) 50 Hz 113 - 2.670 (16) 60 Hz r.p.m.
Tapping capacity: M35
Quill travel: 180 mm
Distance spindle - table: 190 - 650 mm
Distance spindle-base: 1310 mm
Column diameter: 125 mm
Table: 400 x 420 mm
automatic feed: 0,10 - 0,18 - 0,24 (3) mm/min
Motor speed: 750 - 1.500 rpm
Length: 1660 mm
Width: 1510 mm
Height: 2600 mm
Weight: 910 kg

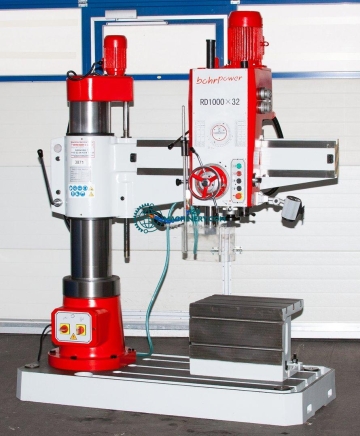

Drilling capacy mild steel: 32 mm
Taper: MK 4
Distance spindle - column: 220 – 950 mm
Revs: 73 – 1.247 (6) r.p.m.
Tapping capacity: Steel: M 25, Cast iron: M 32
Distance table - spindle underside: 350 – 1.210 mm
automatic feed: 0,05 – 0,15 (3) mm/min
Spindle motor: 1.5 kW
Column diameter: 210 mm
Quill travel: 220 mm
Table: 1.260 x 640 x 160 mm
Box table dimensions: 600 x 445 x 380 mm
max. height: 2320 mm
Length: 1800 mm
Width: 830 mm
Height: 2190 mm
Weight: 1250 kg

Drilling capacy mild steel: 30 mm
Taper: MK 3
Distance spindle - column: 250 mm
Revs: 65 - 3.060 (8) r.p.m.
Column diameter: 100 mm
Distance spindle - table: 170 - 660 mm
Distance spindle-base: 1.216 mm
Table: 300 x 270 mm
Base dimensions: 600 x 380 mm
Length: 380 mm
Width: 600 mm
Height: 2060 mm
Weight: 260 kg

Drilling capacy mild steel: 25 mm
Taper: MK 3
Distance spindle - column: 250 mm
Revs: 245 - 4000 r.p.m.
Motor power: 0,7 / 1,3 kW
Tapping capacity: M18
max. drilling depth: 120 mm
Column diameter: 100 mm
Distance spindle - table: 85 - 635 mm
Distance spindle-base: 1.195 mm
Table: 300 x 270 mm
Base dimensions: 600 x 380 mm
Length: 400 mm
Width: 655 mm
Height: 1900 mm
Weight: 280 kg

pressing capacity: 100 to
Cylinder fix or moveable: horizontal moveable
Stroke: 300 mm
Distance between columns: 1570 mm
Piston diameter: 220x160 mm
Working speed: 5 mm/s
Retraction speed: 10 mm/s
Length: 2560 mm
Width: 1000 mm
Height: 2480 mm
Weight: 1755 kg

pressing capacity: 60 to
Cylinder fix or moveable: horizontal moveable
Stroke: 250 mm
Distance between columns: 1040 mm
Piston diameter: 180x120 mm
Working speed: 4 mm/s
Retraction speed: 10 mm/s
Length: 1710 mm
Width: 700 mm
Height: 2100 mm
Weight: 800 kg

pressing capacity: 150 to
Cylinder fix or moveable: fix
Stroke: 300 mm
Distance between columns: 1570 mm
Piston diameter: 280x200 mm
Working speed: 5 mm/s
Retraction speed: 10 mm/s
Length: 2500 mm
Width: 1000 mm
Height: 2270 mm
Weight: 2100 kg

pressing capacity: 100 to
Cylinder fix or moveable: fix
Stroke: 300 mm
Distance between columns: 1570 mm
Piston diameter: 220x160 mm
Working speed: 5 mm/s
Retraction speed: 10 mm/s
Length: 2500 mm
Width: 1000 mm
Height: 2200 mm
Weight: 1600 kg

pressing capacity: 80 to
Cylinder fix or moveable: fix
Stroke: 250 mm
Distance between columns: 1040 mm
Piston diameter: 200x120 mm
Working speed: 5 mm/s
Retraction speed: 10 mm/s
Length: 1810 mm
Width: 750 mm
Height: 2100 mm
Weight: 835 kg

pressing capacity: 60 to
Cylinder fix or moveable: fix
Stroke: 250 mm
Distance between columns: 1040 mm
Piston diameter: 180x120 mm
Working speed: 4 mm/s
Retraction speed: 10 mm/s
Length: 1710 mm
Width: 700 mm
Height: 2100 mm
Weight: 800 kg

pressing capacity: 100 to
Cylinder fix or moveable: fix
Stroke: 300 mm
Daylight: 680 mm
Distance between columns: 1520 mm
Rapid speed: 8 mm/s
Working speed: 5 mm/s
Retraction speed: 10 mm/s
Table: 500x1520 mm
Hole in table: 100 mm
Hole distance: 190 mm
Length: 2630 mm
Width: 1000 mm
Height: 2350 mm
Weight: 2500 kg

pressing capacity: 100 to
Cylinder fix or moveable: fix
Bending length: 1500 mm
Stroke: 300 mm
Distance between columns: 1520 mm
Distance between table and toolholder: 680 mm
Rapid speed: 10 mm/s
Working speed: 5 mm/s
Max. bending capacity (mild steel): 6 mm
Table: 500x1520 mm
Hole in table: 100 mm
Hole distance: 190 mm
Length: 2630 mm
Width: 1000 mm
Height: 2275 mm
Weight: 2500 kg

Flexion modulus: 10 cm³
Round tube: 64 x 3 mm
Standard steel tube: 64 x 3,3 mm
Gas tube: 2" x 40 mm
Stainless steel: 60 x 2 mm
Hard copper and aluminium: 64 x 4 mm
Square tube: 60 x 60 x 4 mm
Rect. tube easy way: 40 x 60 x 4 bzw. Ø 60 x 40 x 3 mm
Rect. tube hard way: 60 x 40 x 3 mm
Max. outer diameter: 64 mm
Max. bending radius: 200 mm
Min. bending radius: 20 mm
Max. bending angle: 210 °
Motor: 4.2 kW
Hydraulic oil capacity: 50 l
Length: 4000 mm
Width: 950 mm
Height: 1250 mm
Weight: 850 kg

Flexion modulus: 80 cm³
Standard steel tube: 127 x 7,1 mm
Gas tube: 4" x 8,56 mm
Furniture tube: 127 x 7,1 mm
FE35 (for hydraulic tubes): 100 x 11 mm
Stainless steel AISI304-318: 114,3 x 5,6 mm
Stainless steel AISI308 (food industry): 114,3 x 5,6 mm
Brass soft: 139,7 x 8,8 mm
Hard copper and aluminium: 139,7 x 8,8 mm
Soft copper: 139,7 x 8,8 mm
Conduit tube (TAZ): 120 x 9 mm
Mepla, Gebereit and similar: 120 x 6.5 mm
Roundbar solid (S275JO): 90 mm
Squarebar solid (S275JO): 75 x 75 mm
Flatsteel solid (S275JO): 100 x 50 mm
Square profile (S275JO): 120 x 60 x 9 bzw. 90 x 90 x 10 mm
T-profile (S275JO): 100 x 100 x 10 mm
U-profile (S275JO): 100 x 100 x 10 mm
Max. bending radius: 700 mm
Min. bending radius: 36 mm
Min. tube Ø: 10 mm
Max. bending speed: 0 - 0,75 r/min
Motor: 3.5 kW
Length: 850 mm
Width: 1200 mm
Height: 850 mm
Weight: 720 kg

Flexion modulus: 43 cm³
Standard steel tube: 100 x 6 mm
Gas tube: 3" 1/2 x 5,74 mm
Furniture tube: 100 x 6 mm
FE35 (for hydraulic tubes): 100 x 7,5 mm
Stainless steel AISI304-318: 100 x 3,6 mm
Stainless steel AISI308 (food industry): 100 x 3,6 mm
Brass soft: 114.3 x 6,3 mm
Hard copper and aluminium: 114,3 x 6,3 mm
Soft copper: 114,3 x 6,3 mm
Conduit tube (TAZ): 100 x 6 mm
Mepla, Gebereit and similar: 100 x 5 mm
Roundbar solid (S275JO): 70 mm
Squarebar solid (S275JO): 60 x 60 mm
Flatsteel solid (S275JO): 80 x 40 mm
Square profile (S275JO): 100 x 60 x 4 bzw. 90 x 90 x 4 mm
T-profile (S275JO): 90 x 90 x 6 mm
U-profile (S275JO): 90 x 90 x 6 mm
Max. bending radius: 400 mm
Min. bending radius: 36 mm
Min. tube Ø: 10 mm
Max. bending speed: 0 - 1,3 r/min
Motor: 3.5 kW
Length: 500 mm
Width: 1200 mm
Height: 850 mm
Weight: 480 kg

Flexion modulus: 10.5 cm³
Standard steel tube: 60 x 3 mm
Gas tube: 2"Gas x 4 mm
Furniture tube: 60 x 4 mm
FE35 (for hydraulic tubes): 64 x 4 mm
Stainless steel AISI304-318: 64 x 3 mm
Stainless steel AISI308 (food industry): 60 x 4 mm
Brass soft: 60 x 4 mm
Hard copper and aluminium: 64 x 4 mm
Soft copper: 64 x 4 mm
Conduit tube (TAZ): 60 x 4 mm
Mepla, Gebereit and similar: 50 x 4 mm
Roundbar solid (S275JO): 35 mm
Squarebar solid (S275JO): 30 x 30 mm
Flatsteel solid (S275JO): 10 x 60 mm
Square profile (S275JO): 25 x 50 x 3 bzw. 50 x 50 x 3 mm
T-profile (S275JO): 50 x 50 x 6 mm
U-profile (S275JO): 40 x 20 x 6 mm
Max. bending radius: 300 mm
Min. bending radius: 10 mm
Min. tube Ø: 10 mm
Max. bending speed: 1,25 / 2,60 r/min
Motor: 1.5 kW
Length: 595 mm
Width: 363 mm
Height: 900 mm
Weight: 130 kg

Shaft diameter: 100
Rolls diameter: 315 mm
Driven rolls: 3
Motor power: 7.5 kW
Speed: 7 m/min
Flat steel vertical position (section / min. diameter): 100x20 mm / 800 mm, 30x10 mm / 400 mm
Flat steel horizontal position (section / min. diameter): 200x30 mm / 1.200 mm, 160x35 mm / 800 mm, 80x5 mm / 400 mm
Square bar (section / min. diameter): 60x60 mm / 750 mm, 15x15 mm / 400 mm
Round bar (section / min. diameter): Ø 75 mm / 800 mm, Ø 15 mm / 450 mm
Tube (section / min. diameter): Ø 125x2,5 mm / 1.400 mm, Ø 15x1 mm / 450 mm, Ø 4"x6,02 / 1.000 mm, Ø 1/2"x2,77 / 450 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 100x40x4 mm / 1.300 mm, 25x15x2 mm / 450 mm
Form tube square (section / min. diameter): 80x80x5 mm / 1.500 mm, 25x25x2 mm / 450 mm
Angle leg outside (Querschnitt / min. Durchmesser): 100x100x12 mm / 1.000 mm, 40x40x4 mm / 700 mm
Angle leg inside (section / min. diameter): 100x100x10 mm / 1.000 mm, 40x40x4 mm / 550 mm
UPN leg outside (section / min. diameter): UPN 180 / 900 mm, UPN 30 / 400 mm
UPN leg inside (section / min. diameter): UPN 180 / 1.000 mm, UPN 30 / 400 mm
IPN horizontal position (section / min. diameter): IPN 180 / 1.000 mm, IPN 80 / 400 mm
Length: 1465 mm
Width: 2000 mm
Height: 1700 mm
Weight: 4000 kg

Shaft diameter: 80
Rolls diameter: 245 mm
Driven rolls: 3
Motor power: 4 kW
Speed: 6 m/min
Flat steel vertical position (section / min. diameter): 100x20 mm / 2000 mm, 80x20 mm / 800 mm, 30x10 / 300
Flat steel horizontal position (section / min. diameter): 125x25 mm / 600 mm, 60x5 mm / 300 mm
Square bar (section / min. diameter): 45x45 mm / 500 mm, 15x15 mm / 380 mm
Round bar (section / min. diameter): Ø 50 mm / 500 mm, Ø 15 mm / 380 mm
Tube (section / min. diameter): Ø 100x2,5 mm / 1.200 mm, Ø 15x1 mm / 380 mm, Ø 3"x5,48 / 800 mm, Ø 1/2"x2,77 / 380 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x25x3 mm / 800 mm, 25x15x2 mm / 350 mm
Form tube square (section / min. diameter): 70x70x3 mm / 1.300 mm, 25x25x2 mm / 350 mm
Angle leg outside (Querschnitt / min. Durchmesser): 80x80x8 mm / 800 mm, 30x30x3 mm / 400 mm
Angle leg inside (section / min. diameter): 70x70x7 mm / 700 mm, 30x30x3 mm / 450 mm
UPN leg outside (section / min. diameter): UPN 140 / 1600 mm, UPN 120 / 900 mm, UPN 100 / 800 mm
UPN leg inside (section / min. diameter): UPN 140 / 1.600 mm, UPN 120 / 1000 mm, UPN 100 / 800 mm
IPN horizontal position (section / min. diameter): IPN 120 / 600 mm, IPN 80 / 400 mm
Length: 1450 mm
Width: 1000 mm
Height: 1400 mm
Weight: 1700 kg

Shaft diameter: 60
Upper roll diameter: 215 mm
Lower roll diameter: 215 mm
Driven rolls: 3
Motor power: 1.5 kW
Speed: 4 m/min
Flat steel vertical position (section / min. diameter): 80x20 mm / 1200 mm, 40x10 mm / 400 mm
Flat steel horizontal position (section / min. diameter): 120x25 mm / 600 mm, 50 x 10 mm / 400 mm
Square bar (section / min. diameter): 50x50 mm / 800 mm, 20x20 mm / 400 mm
Round bar (section / min. diameter): Ø 50 mm / 800 mm, Ø 20 mm / 400 mm
Tube (section / min. diameter): Ø 100x2 mm / 1600 mm, Ø 60x2 mm / 500 mm, 3"x3,2 mm / 1600 mm, 1"x2,6 mm / 500 mm
Form tube vertical position (Querschnitt / min. Durchmesser): 80x40x3 mm / 1400 mm, 40x20x2 mm / 500 mm
Form tube square (section / min. diameter): 70x3 mm / 1600 mm, 40x2 mm / 500 mm
Angle leg outside (Querschnitt / min. Durchmesser): 70x70x7 mm / 1000 mm, 40x40x5 mm / 500 mm
Angle leg inside (section / min. diameter): 70x70x7 mm / 1200 mm, 40x40x5 mm / 600 mm
Length: 1000 mm
Width: 1400 mm
Height: 1650 mm
Weight: 950 kg
