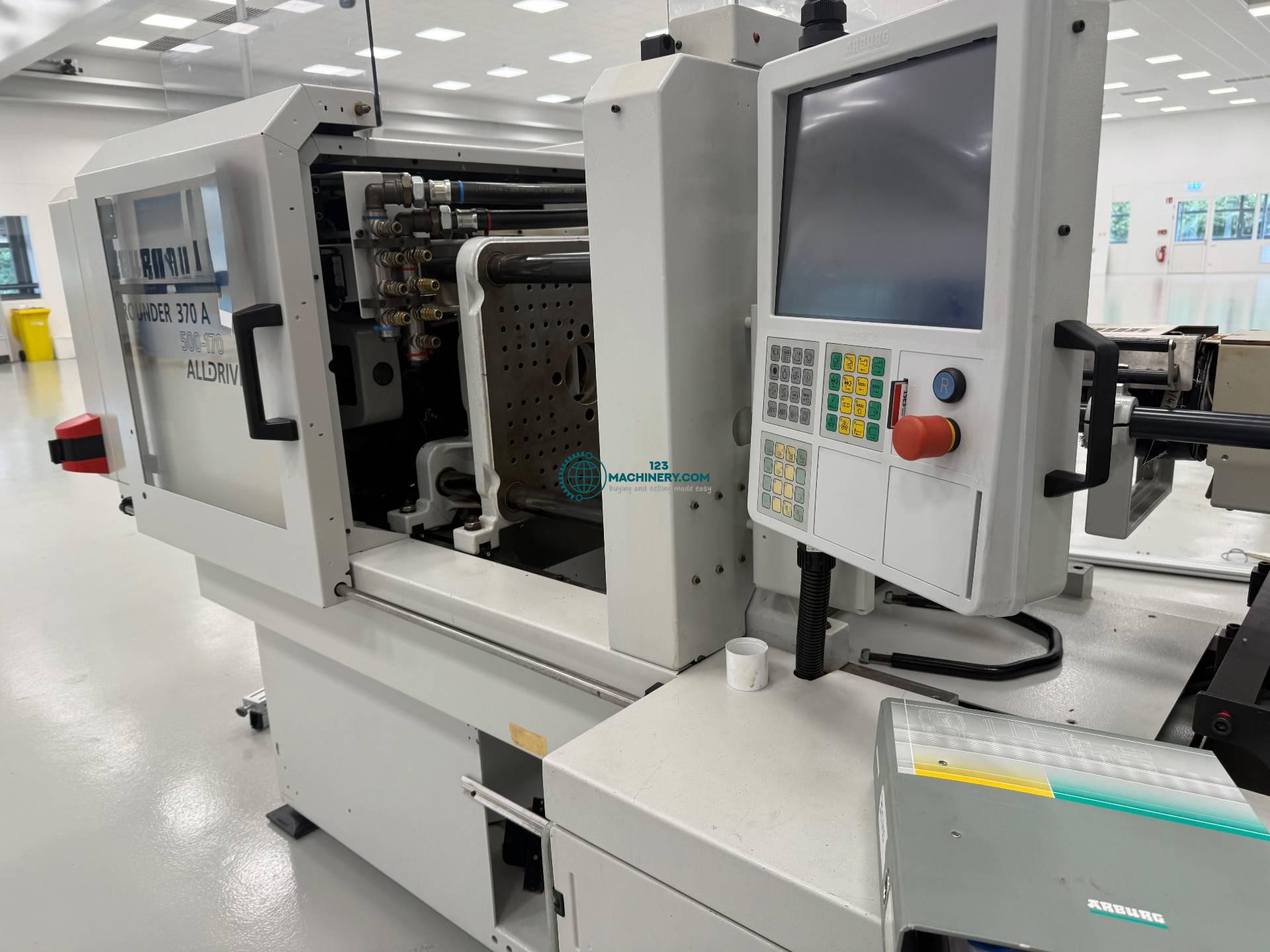

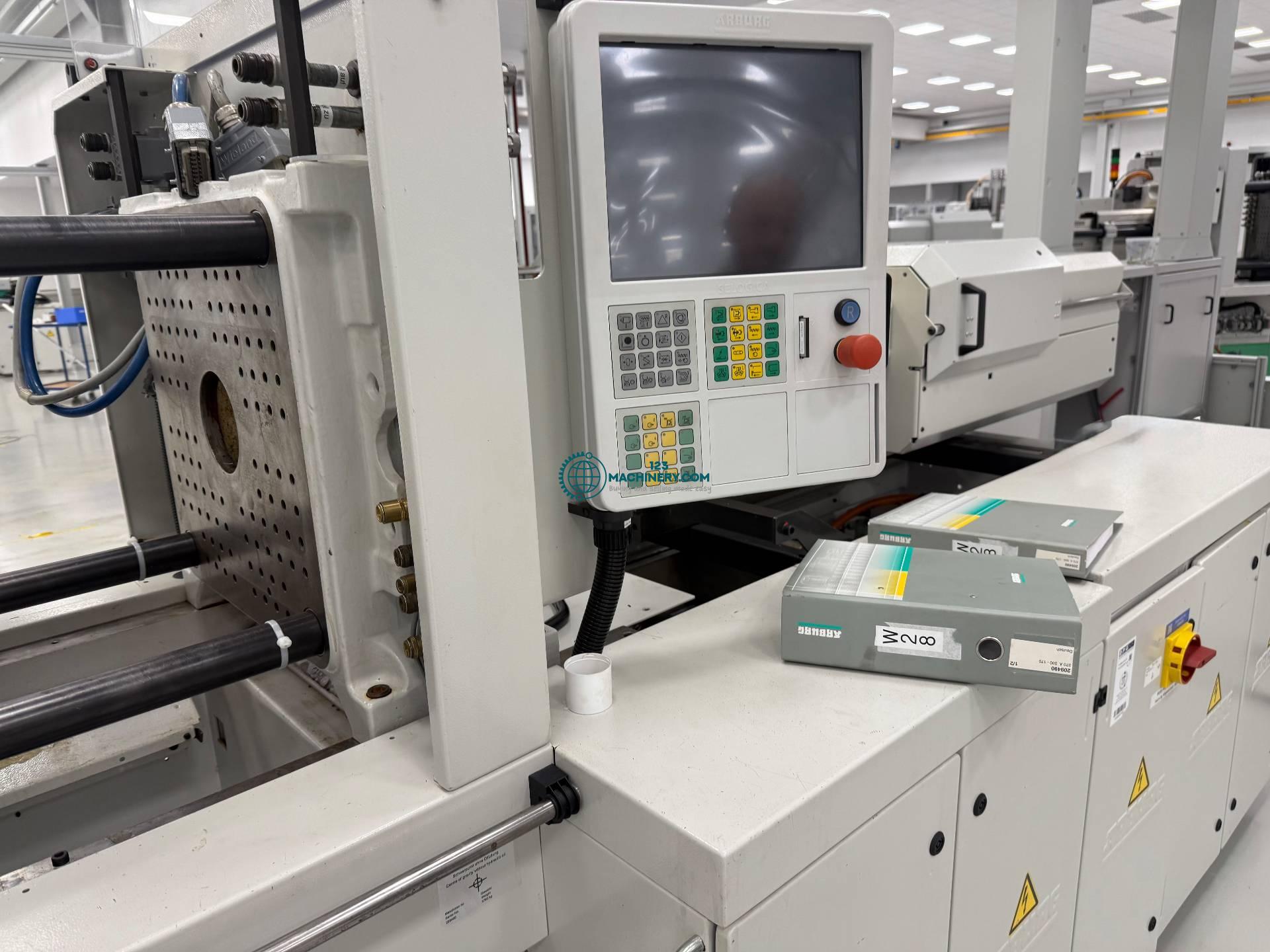

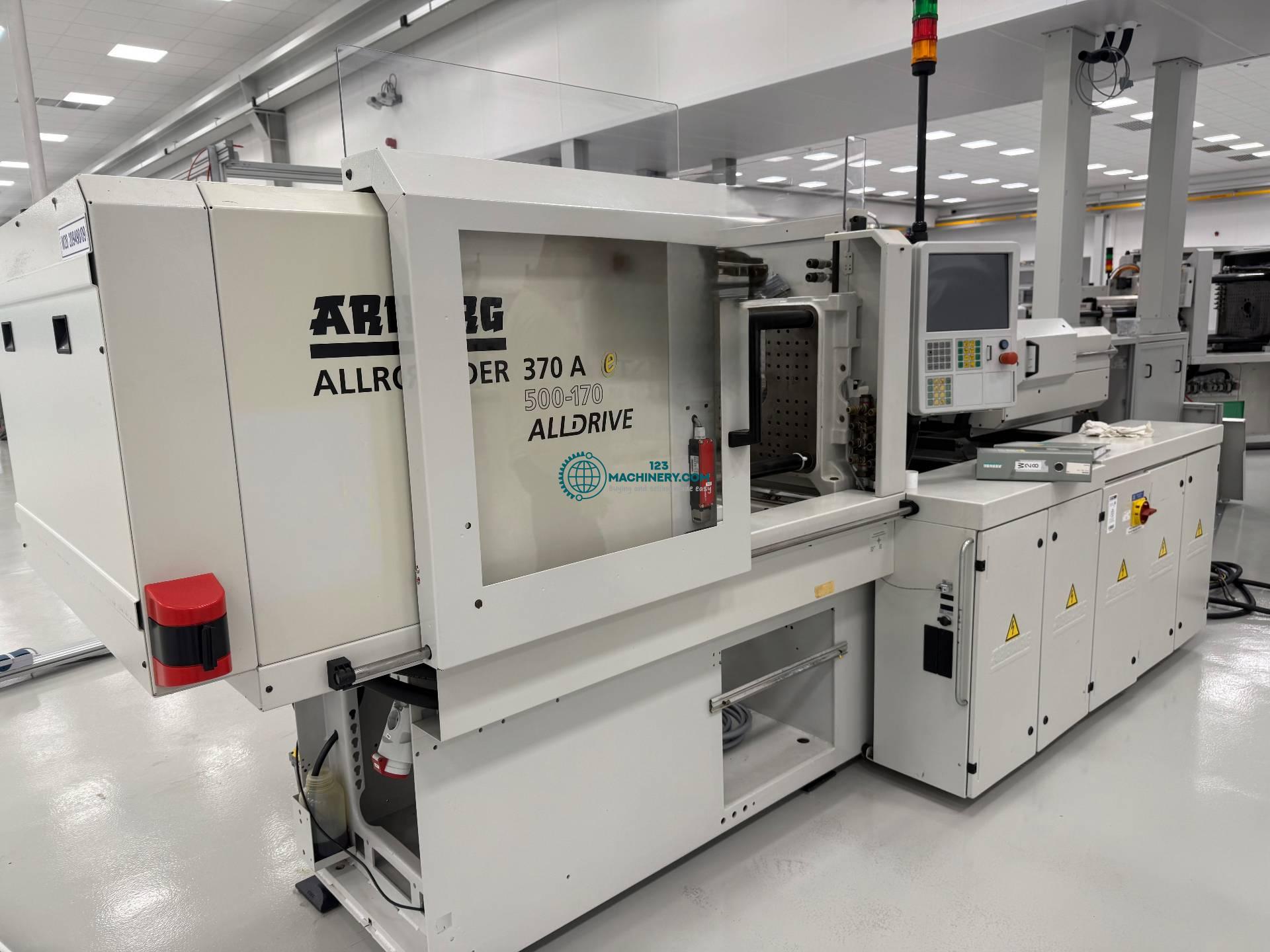

Used ARBURG 370 A 500-170 Electric machines
ARBURG 370 A 500-170 Electric machines
4
Advert data
Reference number
18585
Machine designation
Used ARBURG 370 A 500-170 Electric machines
Manufacturer
ARBURG
Type
370 A 500-170 Electric machines
Year of manufacture
2009
Condition
used
Location of the advert
Schmiedestraße 3, 45527 Hattingen, Germany
Description
Ref. no.: 18585
Hersteller: ARBURG
Year of construction: 2009

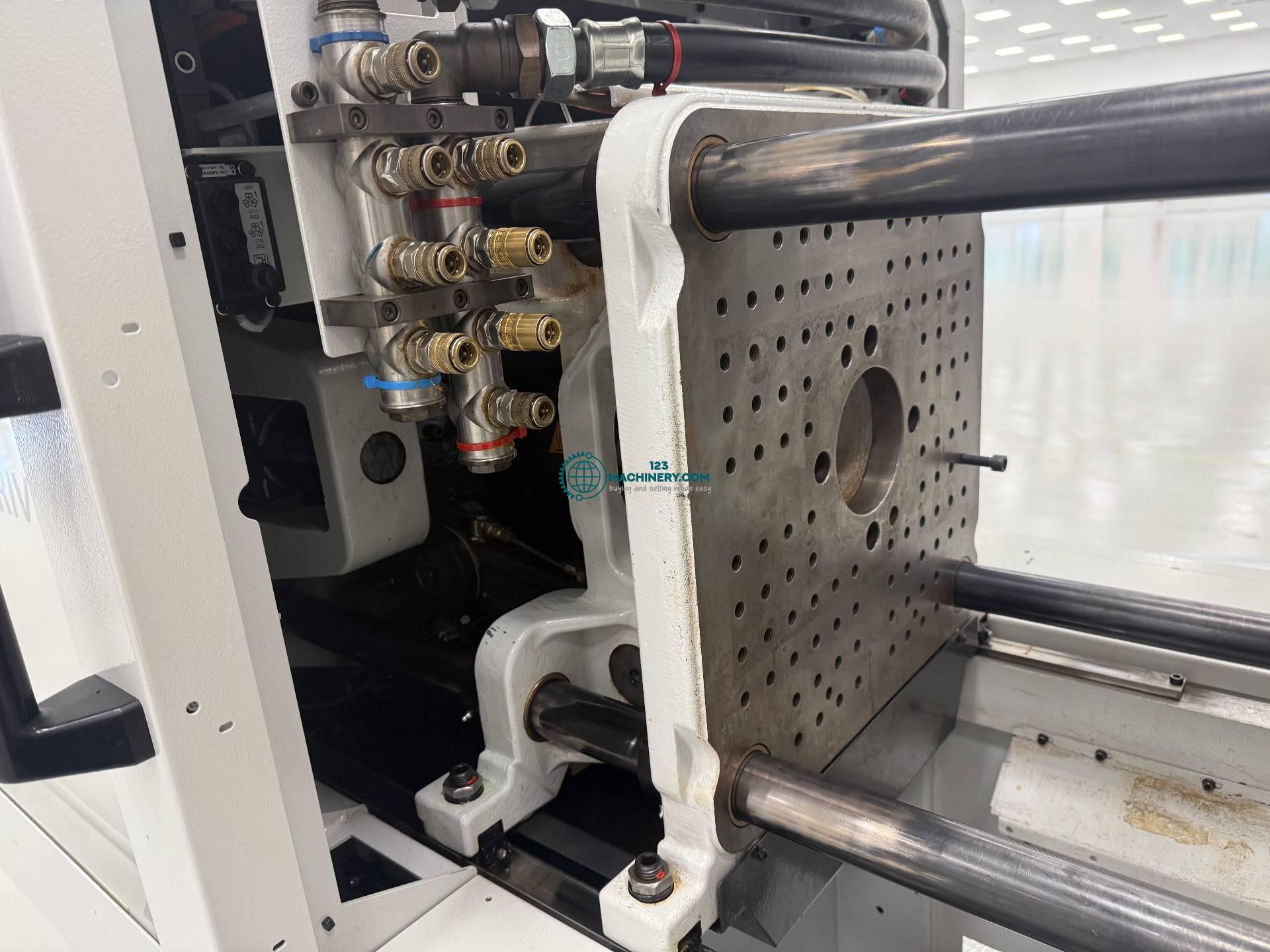

Clamping unit
Clamping force: 50 ton
Opening stroke: 300 mm
Distance between tie bars: 370 x 370 mm
Mould height min.: 200 mm
Mould height max.: 400 mm
Platen size (h x v): 510 x510 mm
Injection unit
Screw diameter: 25 mm
Injection volume: 59 cm³
Shot weight: 54 g
Injection pressure: 2500 bar
Measurements and weight
Dimensions: 3,9 x 2,0 x 1,5 m
Machine weight: 3470 kg
Hersteller: ARBURG
Year of construction: 2009
Clamping unit
Clamping force: 50 ton
Opening stroke: 300 mm
Distance between tie bars: 370 x 370 mm
Mould height min.: 200 mm
Mould height max.: 400 mm
Platen size (h x v): 510 x510 mm
Injection unit
Screw diameter: 25 mm
Injection volume: 59 cm³
Shot weight: 54 g
Injection pressure: 2500 bar
Measurements and weight
Dimensions: 3,9 x 2,0 x 1,5 m
Machine weight: 3470 kg
